WORKING ON THE ENGINE WITHOUT REMOVING THE ENGINE
22
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
WORKING ON THE ENGINE WITHOUT REMOVING THE ENGINE

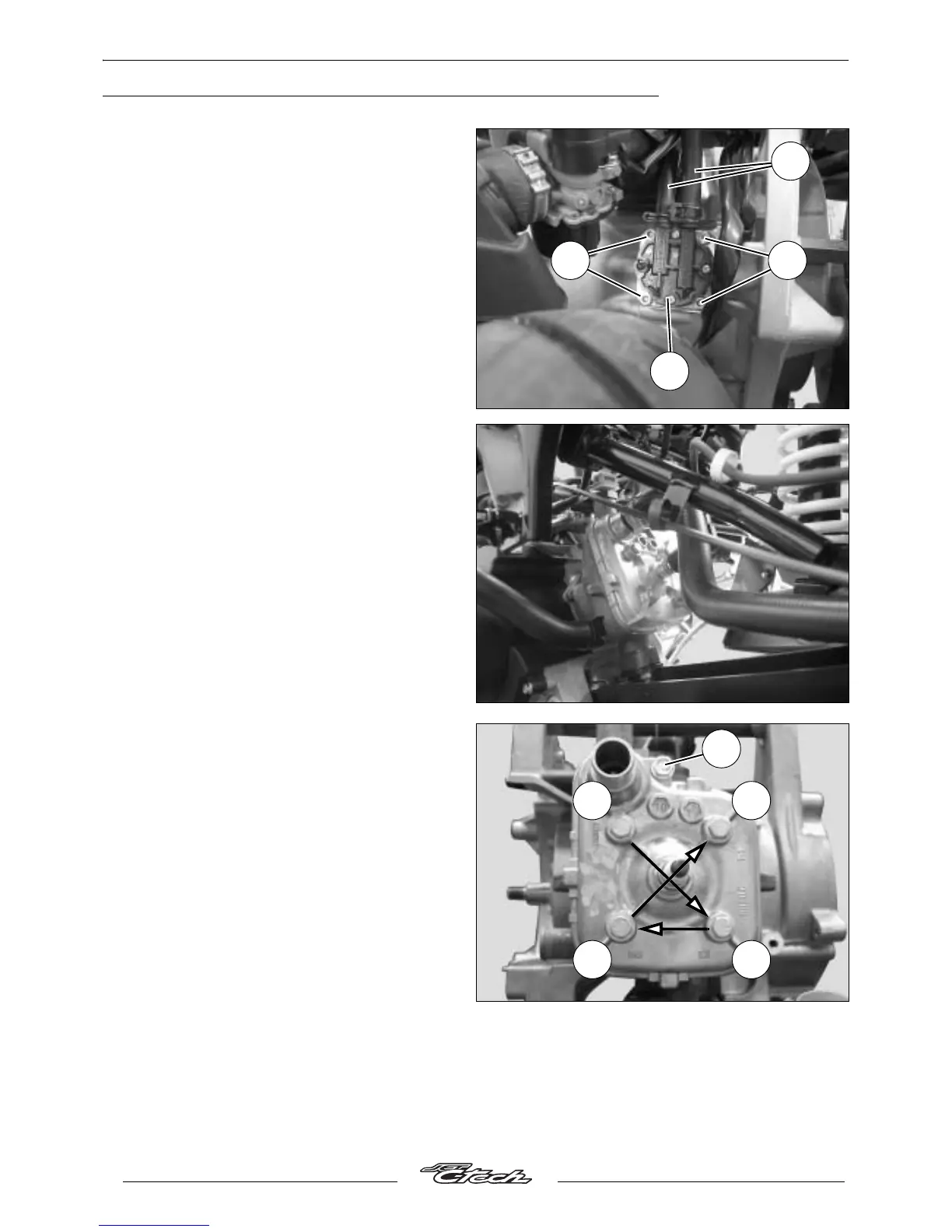

Removal of the air pump.
- Remove the rear mudguard.
- Remove the 4 screws (1) that secure the air
pump (2).
- Disconnect the 2 air hoses (3).
- Note: When re-installing, install the air pump
with its 2 guiding bushes and a new O-ring
slightly lubricated.
Removal of the cylinder / piston.
- Remove the storage compartment (see
procedure 4).
- Remove the footboard and the left tunnel (see
procedure 3).
- Remove the bottom panel.
- Disconnect the lower pump from the coolant
pump to drain the cooling system.
- Disconnect the coolant pipes from the cylinder
head and cylinder.
- Disconnect the temperature sensor.
- Disconnect the suppressor.
- Remove the spark plug.
- Remove the exhaust.
- Loosen the attachment screw (1).
- Slacken off the cylinder head/cylinder
4 mounting bolts in the order shown, in 2 or 3
stages.
- Remove the 5 bolts.
- Remove the cylinder head and its gasket.
- Remove the cylinder and its bottom seal.
2
1 1
3
1
A
B
D
C
