BODY PANELS
14
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

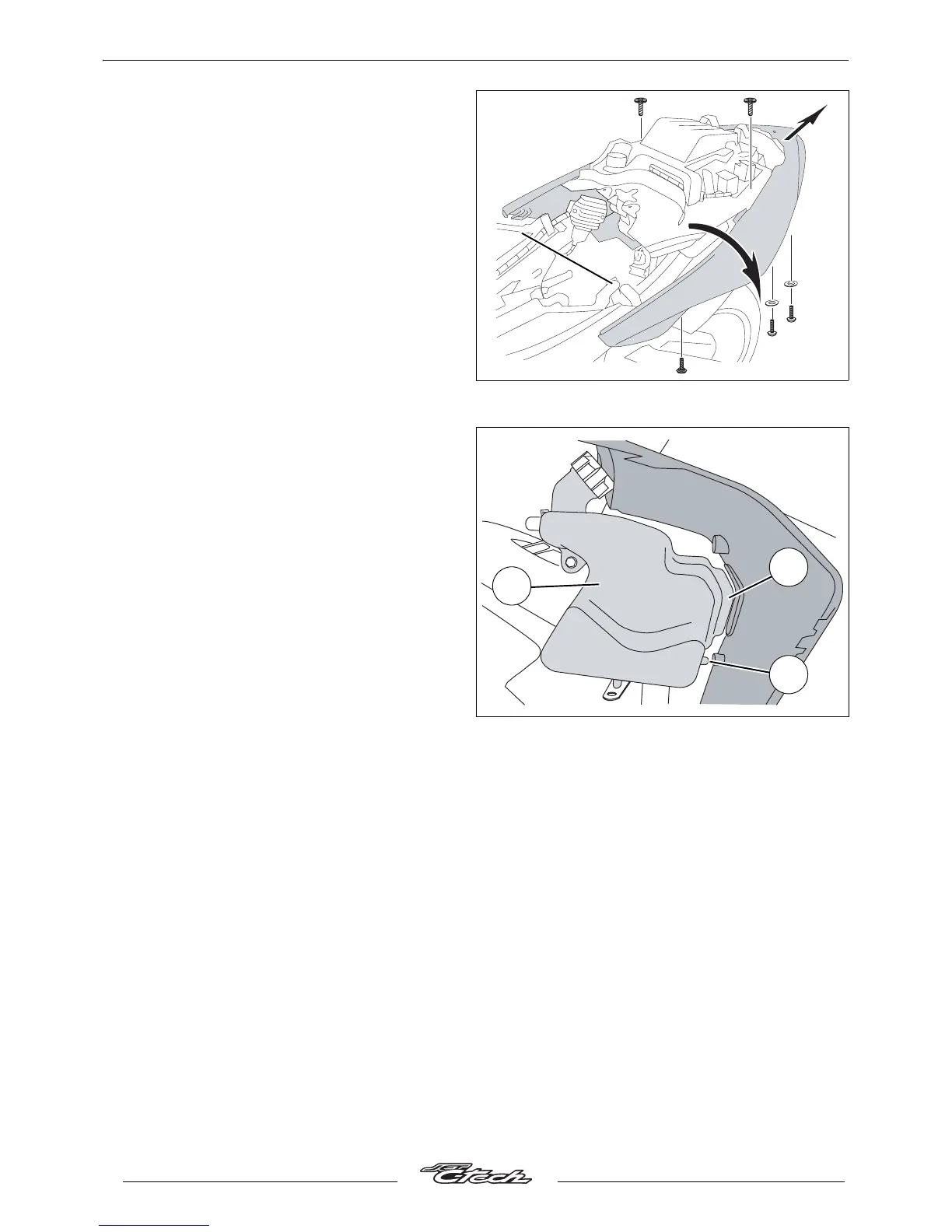

Removal of the rear cover assembly and
mudflap.
- Remove the storage compartment (see
procedure 4).
- Remove the passenger seat (2 screw).
- Remove the rear handle (3 nuts).
- Disconnect from the locking plate the cable
that controls the opening of the seat.
- Remove the rear cover 8 fixing screws.
- Disconnect the tail light and the turnsignal
lights.
- Remove the rear cover assembly (unclip the
rear cover from the storage compartment trim,
fed one side of the panel under the battery
bracket, pull the cover clear by turning it on the
same side).
Removal of the header tank.
- Remove the front upper shield panel (see
procedure 1).
- Removal of front lower shield panels (see
procedure 2).
- Empty the header tank.
- Disconnect the header tank pipes.
- Remove the upper fixing bolts.
- Clear the header tank (1) from the bracket
guides and rear shield.
- Remove the header tank.
1
A
B
