PETROL CIRCUITS
21
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

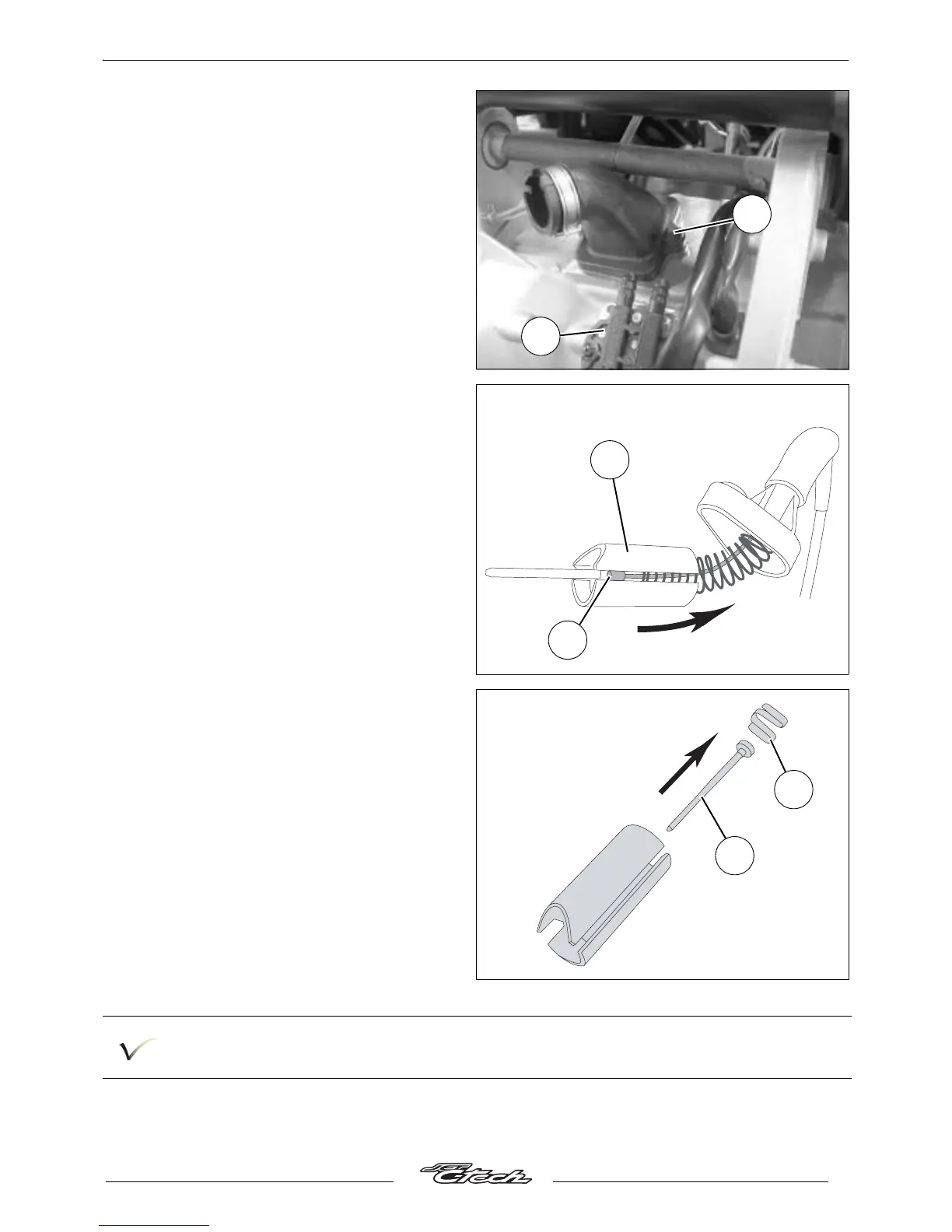

Removal of the inlet coupling and
valves.
- Disconnect the 2 ait supply hoses from the air
pump (1).
- Using a cutter, make a mark in the tamper
proof screw (2).
- Remove the 2 bolts.
- Remove the inlet coupling.
- Remove the reed valves and its gasket of
composite materials.
Removal of the throttle valve.
- Take out the throttle control cable (1) by
compressing the spring using the throttle
valve (2).
- Dismantle the valve equipped with its needle,
spring and carburettor chamber cap.
- Dismantle the needle (3) by pushing it out in
order to remove the clips (4).
The height oif the needle is factory set and cannot be modified.
