SERVICE OPERATIONS
38
Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles

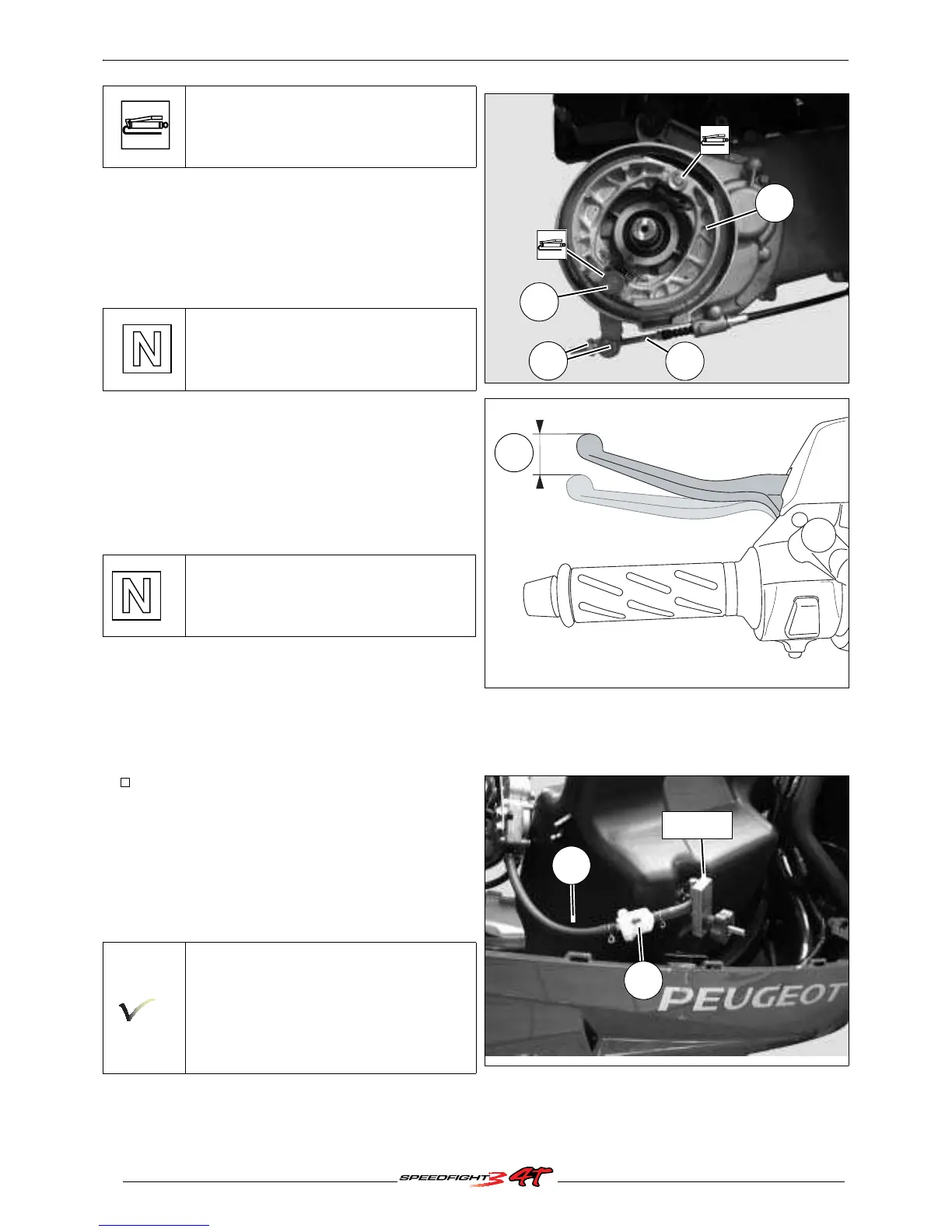

Slightly lubricate the brake cam and pin.
- Install the brake linings.
- Install the spring (8).
- Install the brake control cable, the barrel and
the adjusting nut (4).
- Install the wheel.
Tightening torque: 120 Nm.
When re-installing, use a new nut.
- Measure the free travel of the rear brake
control lever.
- Ajust the lever free travel using the adjusting
nut.
C. Brake control free travel: 10 to 20 mm.
- Install the exhaust.
Use a new exhaust gasket.
• Exhaust to cylinder mounting nut:
Tightening torque: 15 Nm.
• Exhaust to casing mounting bolt:
Tightening torque: 30 Nm.
Removal of the fuel filter
- Remove the footboard. See: Procedure 7
page 24.
- Lift the fuel tank.
- Clamp the end of the fuel inlet pipe using a
clip ref. 755996.
- Disconnect the fuel supply hose (1).
- Remove the fuel filter (2).
When re-installing, respect the
direction of installation of the filter
shown by the arrow which indicates in
which direction the fuel flows
.
4
6
5
3
C
755996
1
2
