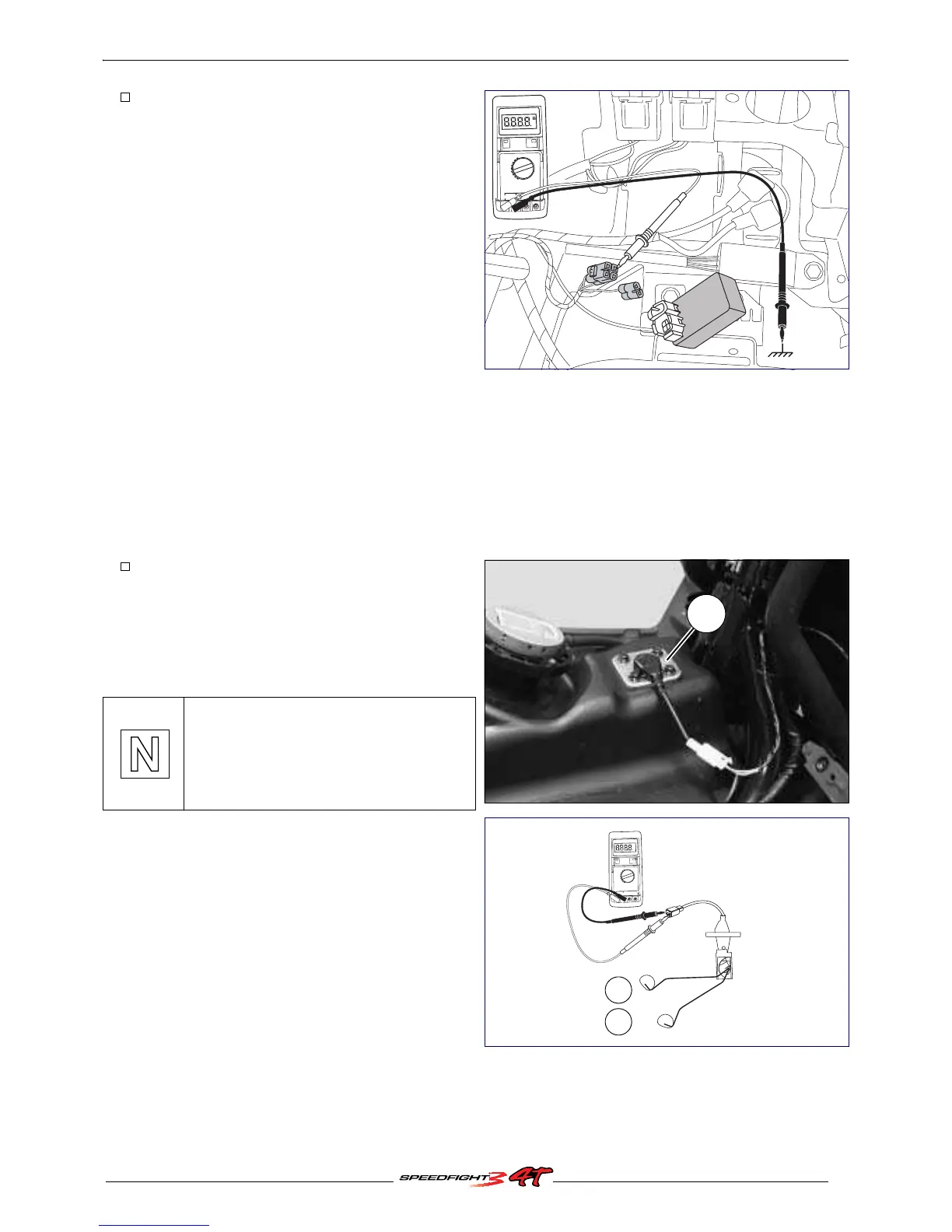

Checking the ignition system
Disconnect the ignition unit and take the
measurements on the harness side.
• Between the green wire and the ground: 0 :
• Between the yellow/black wire and the
ground (Primary high voltage coil): 0.2
:
±20%
.
• Between the green/black wire and the
ground (Ignition sensor) : 115 :
±20%
.
• Between the black wire and the ground,
ignition on: 12 V (Battery voltage).
- If the values are correct, replace the ignition
module.
- If the values are incorrect, check:
• The ignition switch.
• The harness.
• The high voltage coil.
Primary: 0.2 :
±20%
.
Secondary: 5 :
±20%
.
• The suppressor: 5 k:
±20%
.
• The ignition sensor
Between the green/black wire and the ground:
115 :
±20%
.
Fuel gauge
- Remove the footboard. See: Procedure 7
page 24.
- Disconnect the fuel gauge (1).
- Remove the fuel gauge (4 screw).
- Remove the rubber gasket.
When re-installing, use a new gasket.
Fuel gauge check
- Check the resistance between the terminals
depending on the upper and lower positions of
the float.
A. Full fuel tank: 10 :
±20%
.
B. Empty fuel tank: 95 :
±20%
.
Ω
1
Ω
A
B
