Adjustment
13 - 50
13.
08
Tension release
(only on machines with thread tension control -906/10)
Requirement
With solenoid
1
activated the tension disks
3
must be at least
0.5 mm
apart.

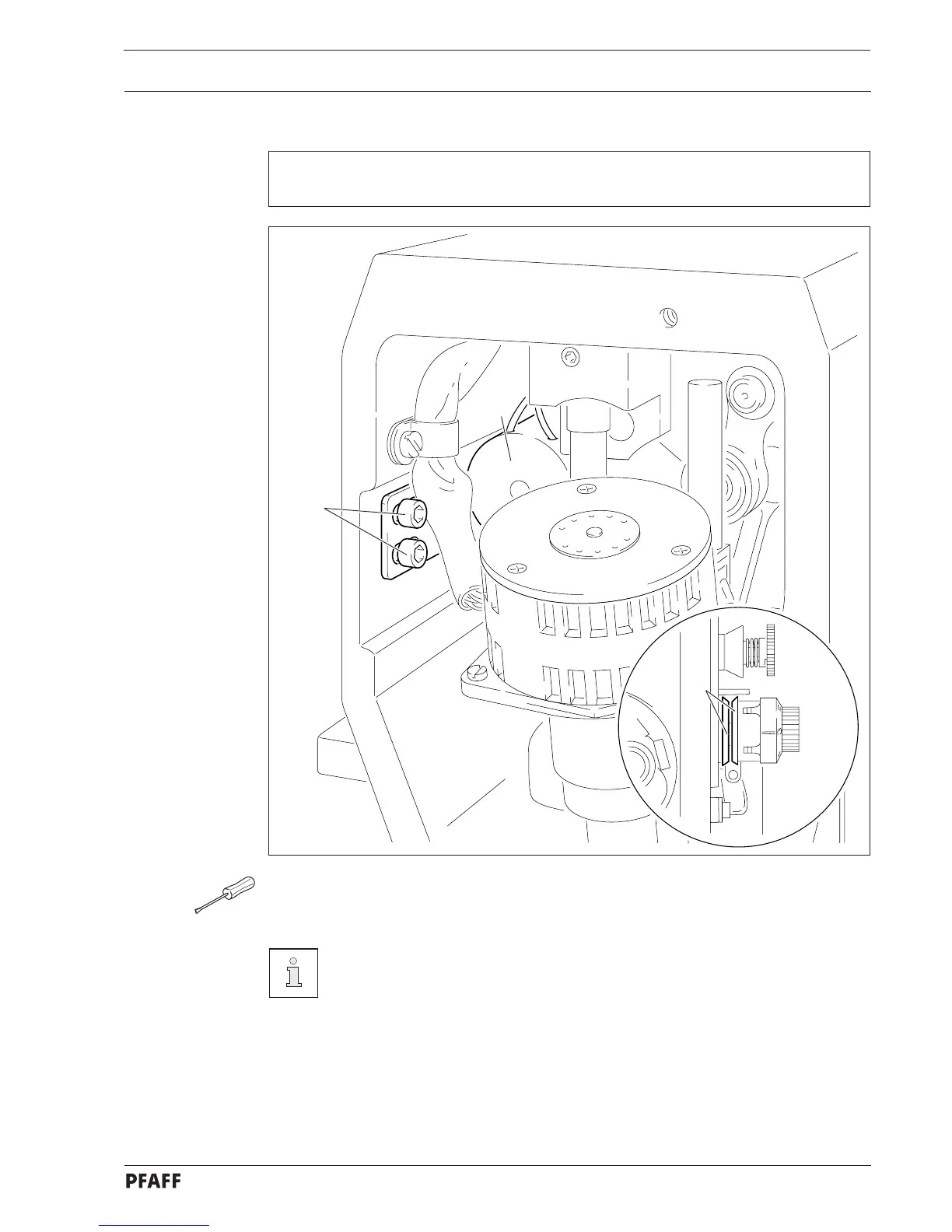

Fig. 13 - 45
1
2
3
●
Activate solenoid
1.
●
Move solenoid
1
( screws
2
) in accordance with the
requirement.
The timing of the tension release can be adjusted via the service functions
( see
chapter 11.09 Summary of the service functions
and
chapter 13.09
Parameter adjustments
).
126
