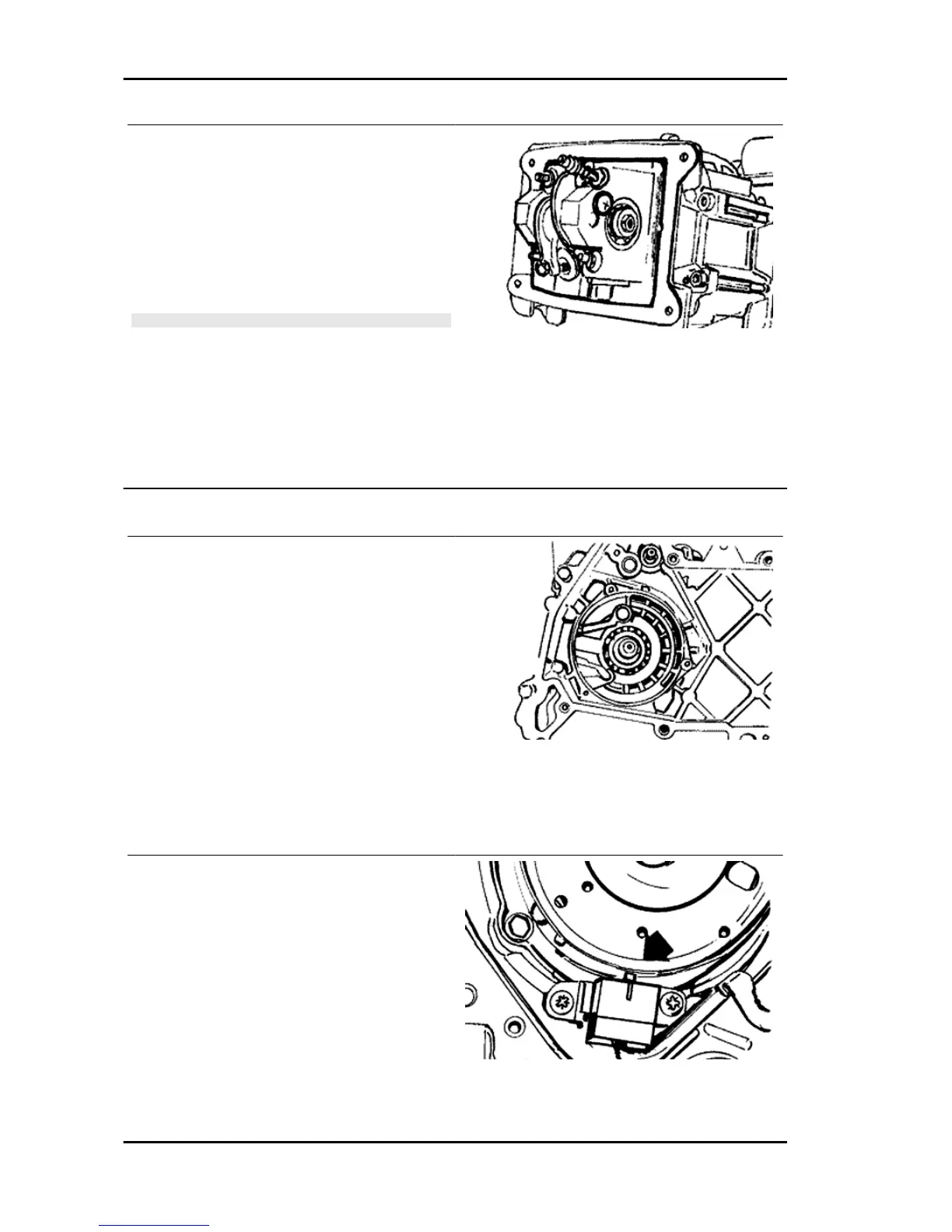

- Finish the head tightening following the proce-
dure below: screw the four head nuts to an initial
torque at two crossed passes. Afterwards tighten
the nuts with 2 turns of 90° each to be done at two
crossed passes.
-Finish the tightening of the head to the crankcase
with the 2 side screws.
N.B.
SHOULD THE CRANKCASE OR THE CYLINDER STUD
BOLTS BE REPLACED, IT IS NECESSARY TO CARRY OUT
AN INITIAL TIGHTENING PLUS OTHER 3 TURNS OF 90°
EACH AT 3 CROSSED PASSES
Locking torques (N*m)
Head-cylinder stud bolt nuts: 6 ÷ 7 +135° +90° Nm
first fitting, upon refitting tighten again at 6 ÷ 7 90° +90°
Nm Head cover screws 8 ÷ 10 Nm
Refitting the timing chain
- Insert the timing chain pads in their correspond-
ing seatings, the screw and the spacer as indica-
ted in the figure.
- Tighten to the prescribed torque and check the
tensioner pad moves adequately.
- Insert the timing pinion in driving shaft with the
chamfered side facing the insertion (towards the
main bearing).
- Loop the timing chain around the sprocket on the
crankshaft.
Locking torques (N*m)
Chain tensioner pad screw 5 ÷ 7 Nm
- Refit the spacer on the cam shaft.
- Rotate the engine so that the piston is at top dead
centre, using the reference marks on the flywheel
and the crankcase.
- With this operation, insert the chain on the cam-
shaft control pulley and make the reference notch
coincide with the point on the head.
- Fit the pulley onto the camshaft.
- Fit the belleville washer so that the outer rim
touches the pulley.
Engine MSS ZIP 100 4T
ENG - 104
