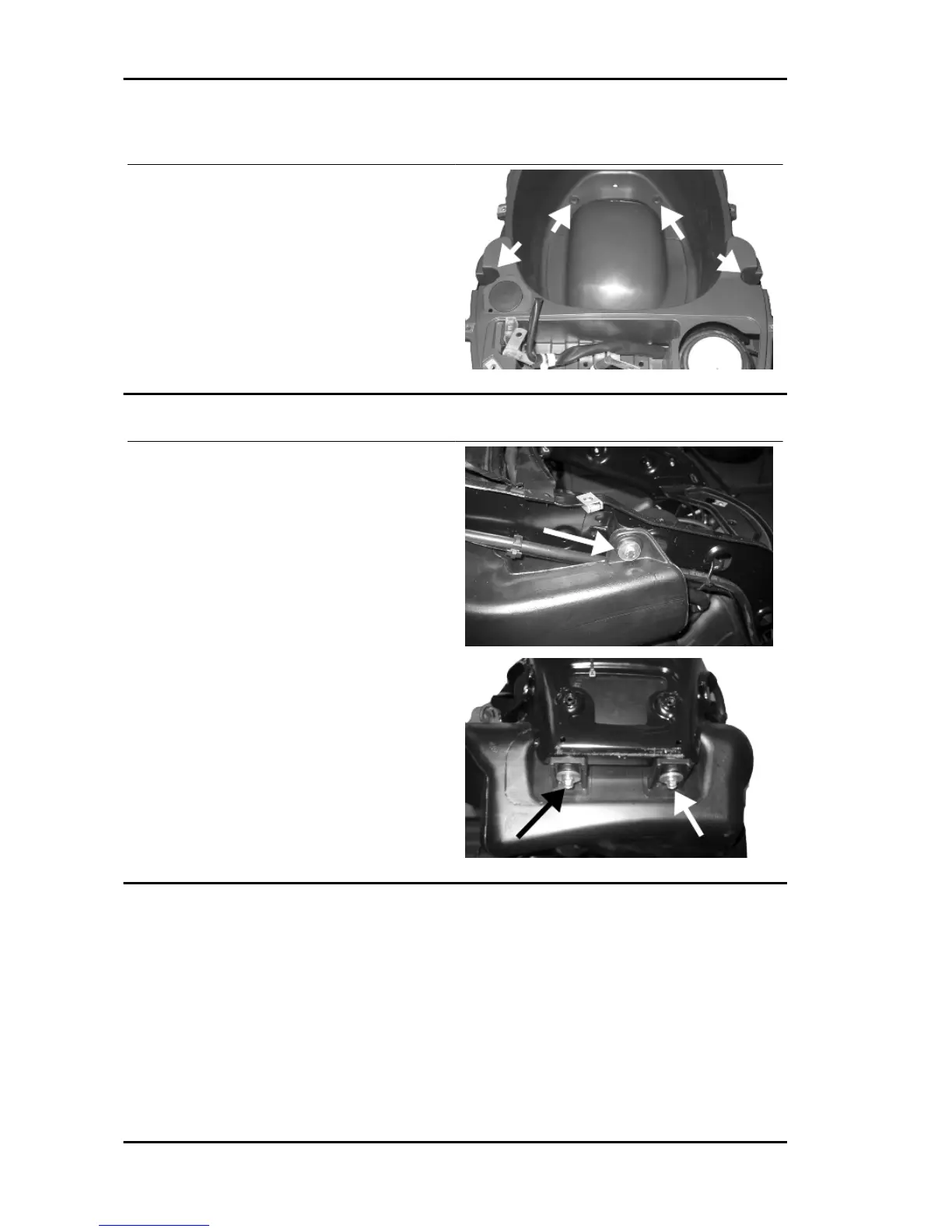

Helmet bay
- Remove the side fairings
- Remove the helmet compartment by undoing the
4 screws indicated in the figure
Fuel tank
- Remove the side fairings
- Remove the rear mudguard
- Remove the crews shown in the photograph
- Remove the shock absorber upper clamping in
order to create the necessary space to take out the
tank.
Chassis
MSS ZIP 100 4T
CHAS - 148
147
149
