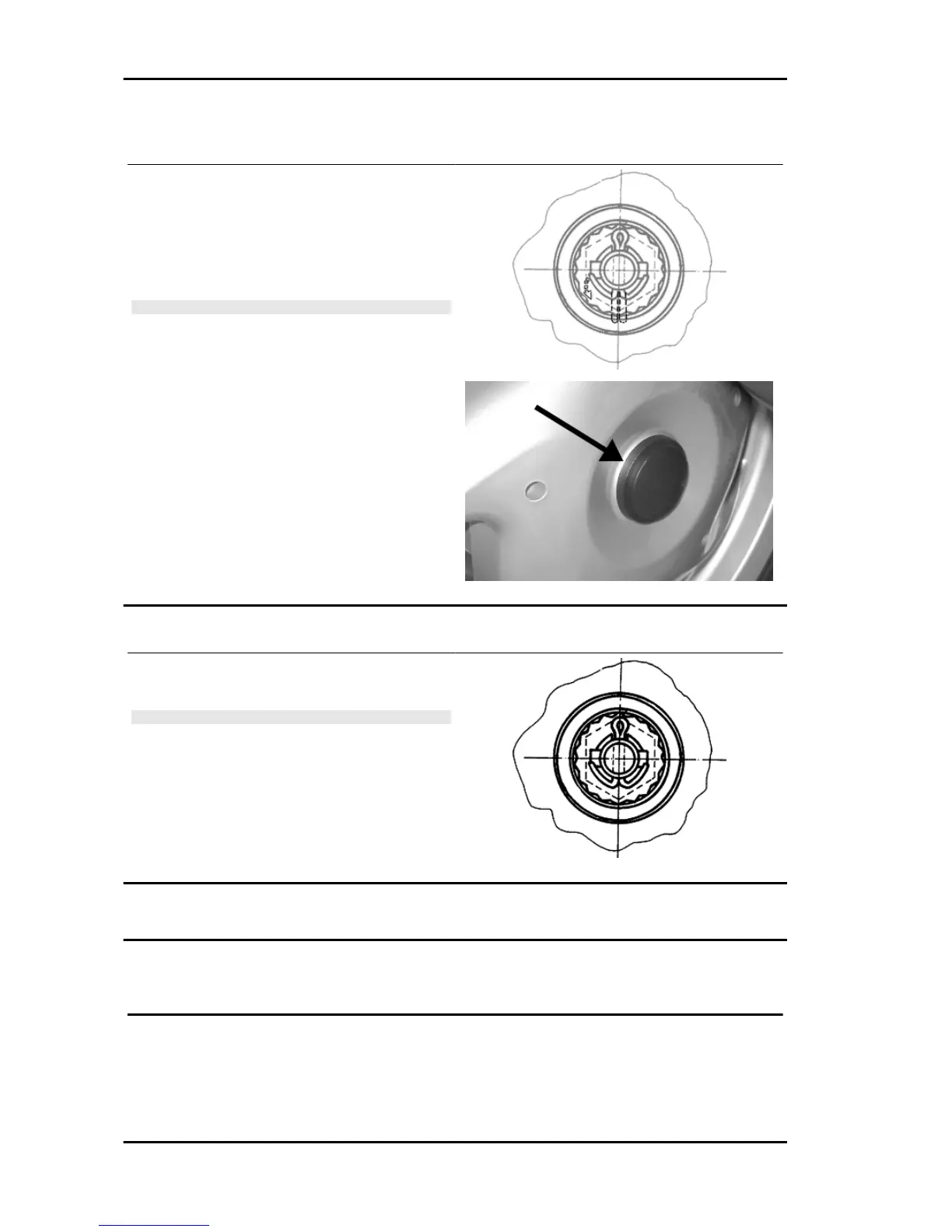

Removing the rear wheel
- Use a screwdriver as a lever between the drum
and the cover.
-Straighten the split pin and remove the cap.
-Remove the wheel acting on the central fixing
point.
WARNING
-ALWAYS USE NEW SPLIT PINS FOR REFITTING.
Refitting the rear wheel
-Refit the parts in the reverse order as for removal,
lock the wheel nut to the specified torque.
WARNING
- FOLD THE EDGES OF THE SPLIT PIN AS SHOWN IN OR-
DER TO AVOID BACKSLASH BETWEEN THE CAP AND
THE WHEEL AXLE.
Locking torques (N*m)
Rear wheel axle 104 ÷ 126
Shock absorbers
Removal
Shock absorber
Suspensions MSS ZIP 100 4T
SUSP - 134
