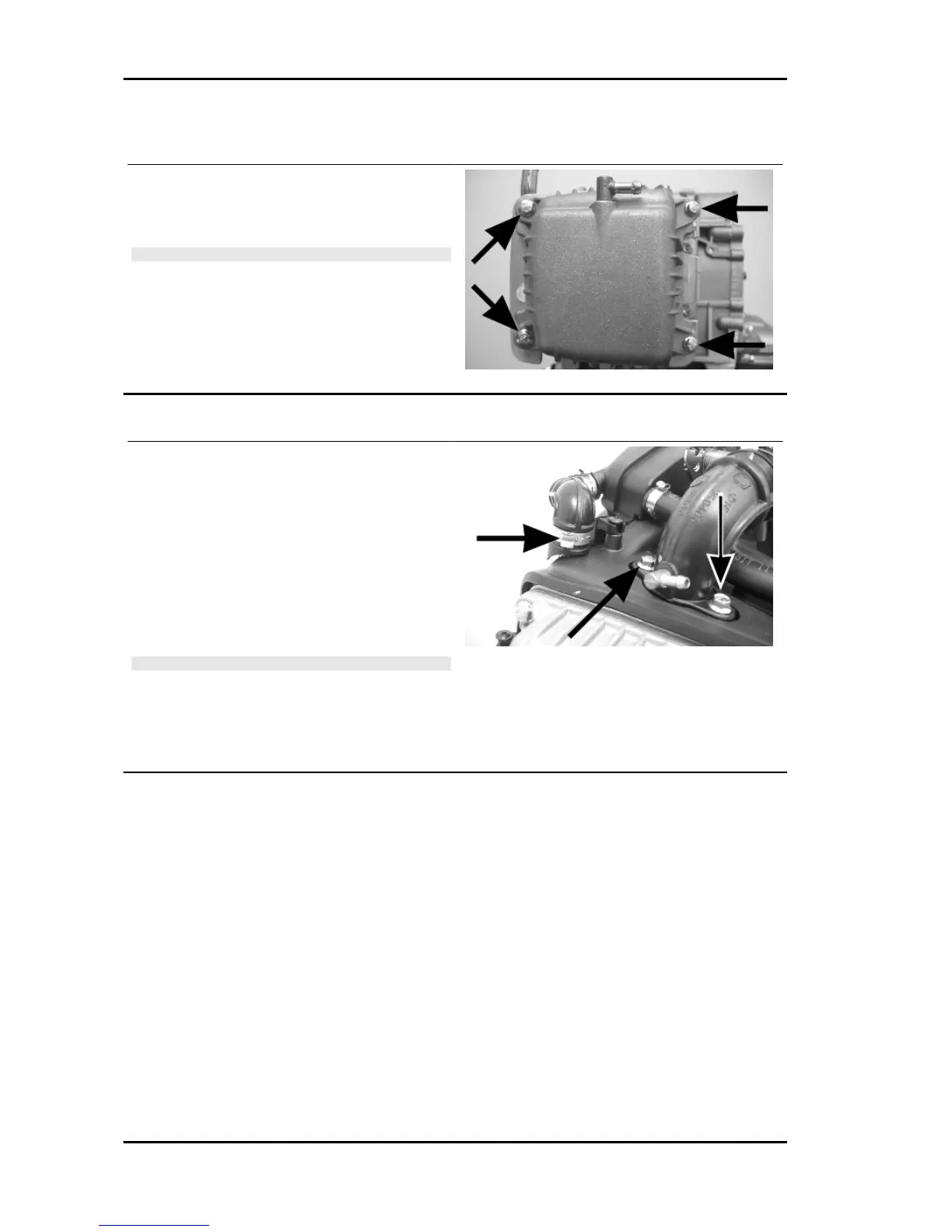

Refitting the rocker-arms cover
- Carry out the removal procedure but in reverse
order and tighten the four fixing screws to the
specified torque.
N.B.
FIT A NEW O-RING ON THE TAPPET COVER.
Locking torques (N*m)
Timing chain tensioner screws 8 ÷ 10 Nm
Refitting the intake manifold
-Fit the cover sealing gaskets on the head.
-Fit the 2 covers.
- Fit the inlet manifold and do up the 2 screws to
the specified torque.
-Fit the carburettor on the inlet manifold and lock
the clamp.
-Fit the secondary air pipe and fix it with the ap-
propriate clamp.
N.B.
FIT THE CARBURETTOR THROUGH THE SUPPLEMENT
ON THE MANIFOLD.
Locking torques (N*m)
Inlet manifold screw 7 ÷ 9 Nm
Crankcase - crankshaft
- First remove the following units:
Driving pulley Driven pulley
Final reduction greasing
Oil pump Flywheel with stator
Cylinder-piston-head unit
Starter motor with cables.
See also
Removal
Removing the starter motor
Removing the driving pulley
Removing the cylinder - piston assy.
Removing the driven pulley
Removing the stator
Engine MSS ZIP 100 4T
ENG - 106
