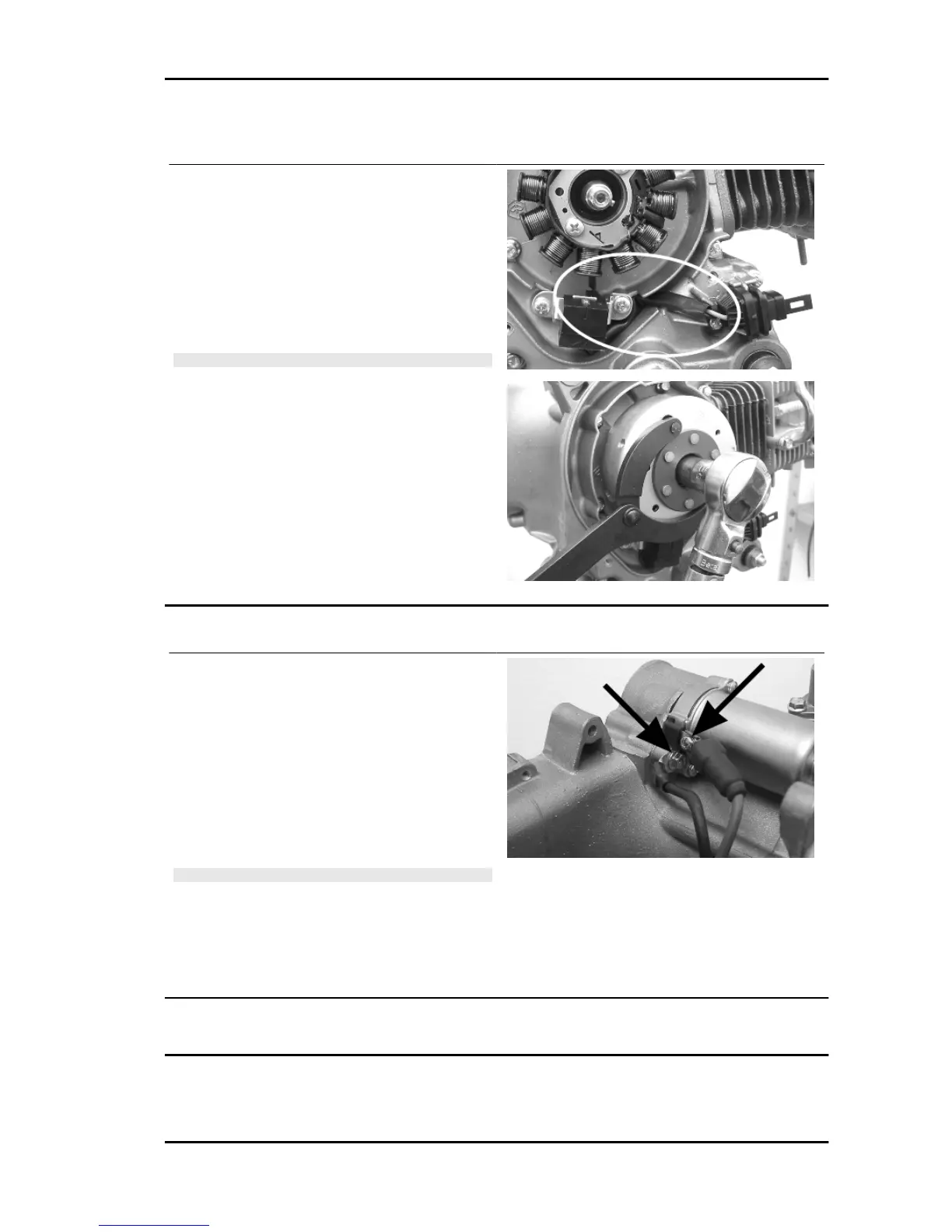

Refitting the flywheel magneto
- Refit the stator and the pick-up being careful to
pass the wiring through the appropriate crankcase
couplings.
- Refit the flywheel to the crankshaft being careful
to respect the keying, then lock rotation with the
specific tool and tighten the nut to the prescribed
torque.
N.B.
A VARIATION OF THE AIR GAP DISTANCE CAN LEAD TO
A VARIATION IN THE IGNITION ADVANCE SUCH AS TO
CAUSE PINGING, KNOCKING ETC.
Specific tooling
020565Y Flywheel lock calliper spanner
Locking torques (N*m)
Flywheel nut 52 ÷ 58
Refitting the starter motor
- Install the starter motor in its seating in the crank-
case.
- Tighten the screw on the head side but do not
lock it, screw the second screw inserting the earth
cable (black), then tighten the 2 screws at the pre-
scribed torque.
- Tighten the locking screw of the positive cable
(red) on the side contact.
N.B.
REFIT THE REMAINING PARTS AS DESCRIBED IN THE
CYLINDER HEAD, TIMING, LUBRICATION, FLYWHEEL
AND TRANSMISSION CHAPTERS.
Locking torques (N*m)
Starter screws 11 ÷ 13
Cylinder assy. and timing system
MSS ZIP 100 4T Engine
ENG - 85
