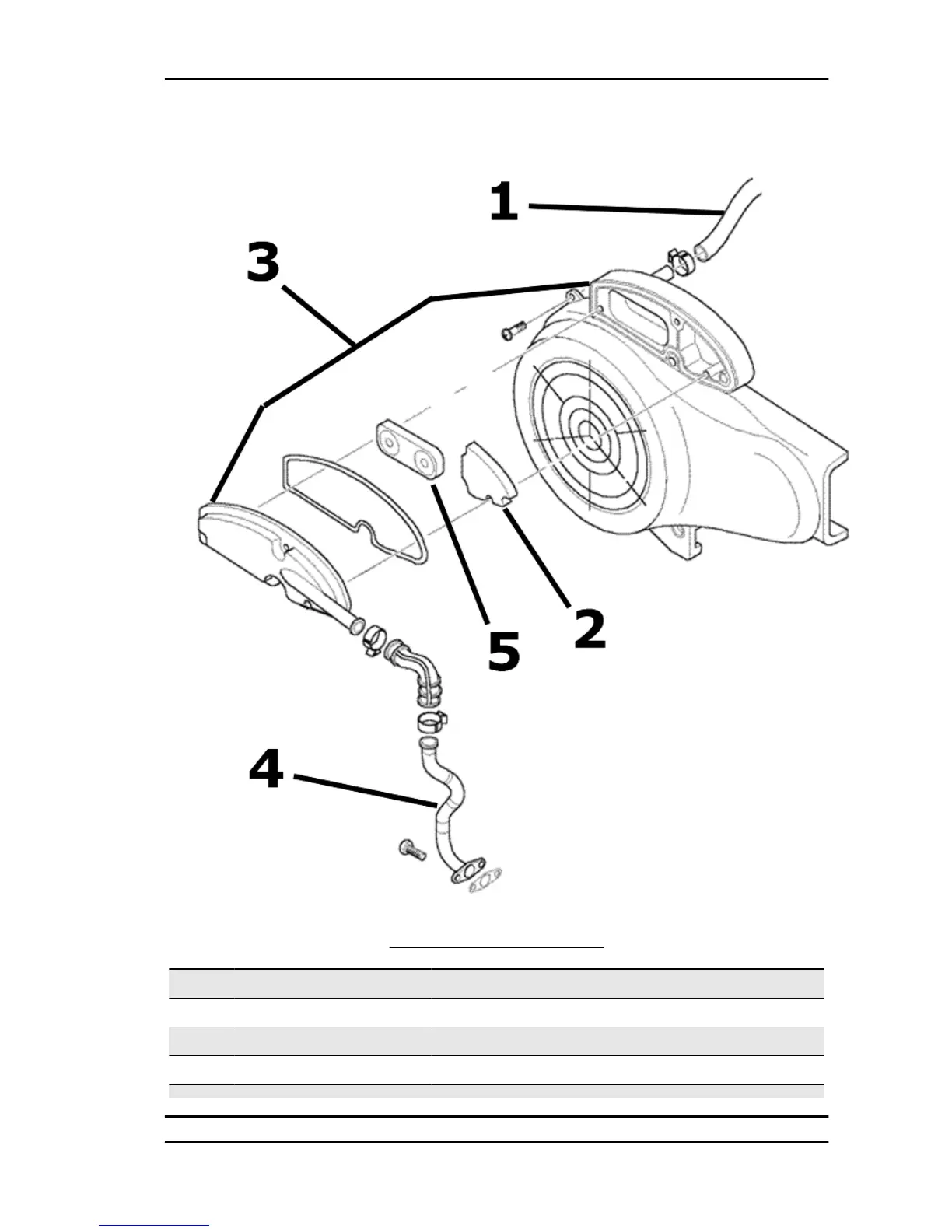

Secondary air box

SECONDARY AIR HOUSING

Code

Action Duration

1 001164 Crankcase secondary air connection

- Replacement

2 001161 Secondary air filter - Replacement /

Cleaning

3 001162 Secondary air housing - Replace-

ment

4 001163 Muffler secondary air connection -

Replacement

5 001165 Secondary air reed - Replacement

MSS ZIP 100 4T Time
