Pioneer SC-LX78 User Manual

16
Controls and displays
02

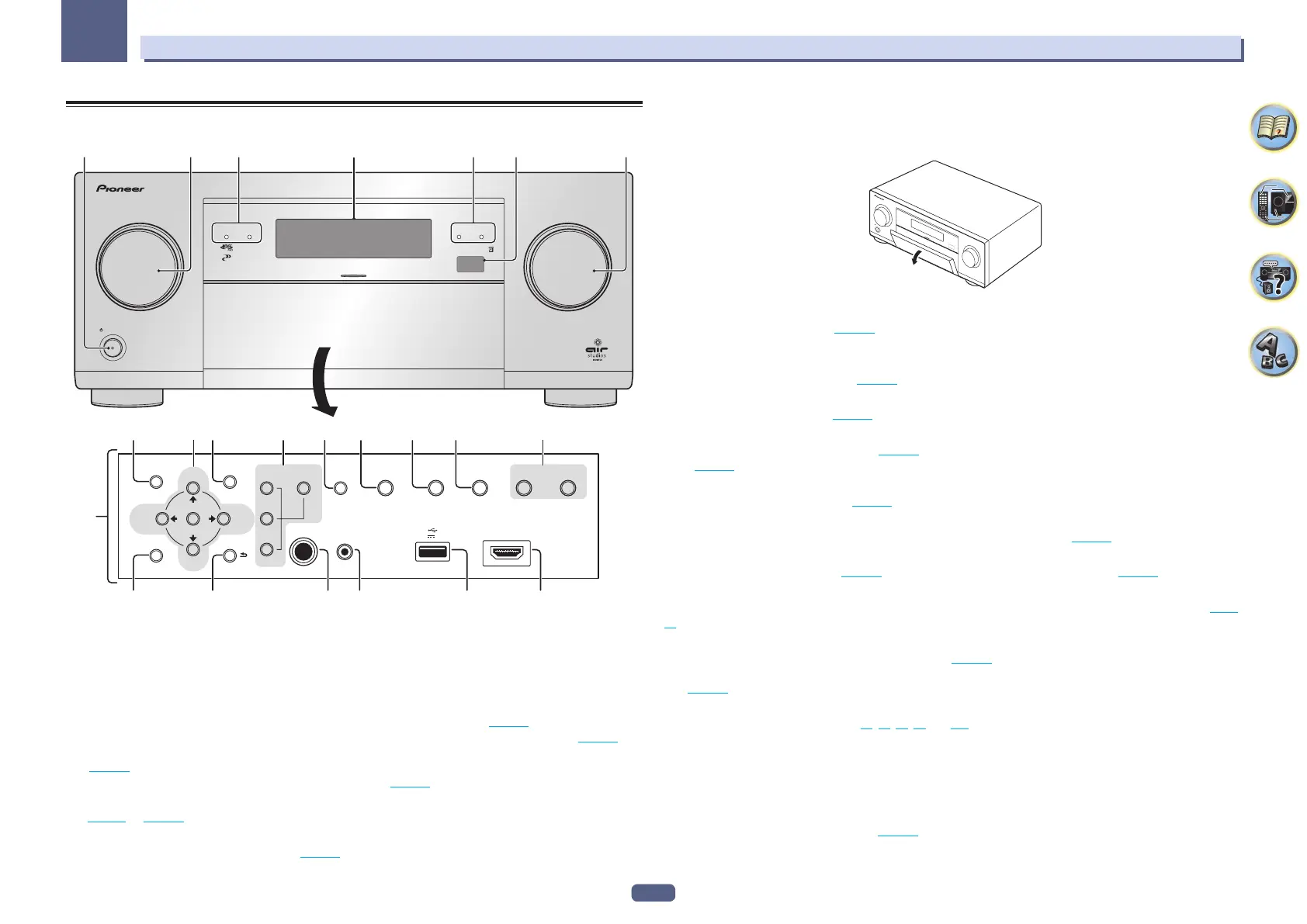

Front panel
PHONES
SPEAKERS
MULTI-ZONE
CONTROL
ZONE 2
ON/OFF
ZONE 3
ON/OFF
HDZONE
ON/OFF
MCACC
SETUP MIC
ENTER
TUNE
TUNE (HDMI)
PRESETPRESET
VIDEO
PARAMETER
AUDIO
PARAMETER
HDMI 5 INPUT
AUTO/ALC/
DIRECTSTATUSBAND TUNER EDIT
iPod iPhone
DIRECT CONTROL
HOME MENU RETURN
MASTER
VOLUME
STANDBY/ON
INPUT
SELECTOR
iPod iPhoneHDMI
MCACC PRO
FL OFF
5V 1 A
1 2 4
35
6
7
8910 1211 13 16
17 18 2019 21 22
3
14 15
1 u STANDBY/ON
This switches between standby and on for this receiver.
2 INPUT SELECTOR dial
Use to select an input function.
3 Indicators
! MCACC PRO – Lights when EQ is set to ON in the AUDIO PARAMETER menu (page 79 ).
! FL OFF – Lights when “off” (nothing displayed) is selected with the display’s dimmer adjustment (page 86 ).
! HDMI – Blinks when connecting an HDMI-equipped component; lights when the component is connected
(page 34 ).
! iPod iPhone – Lights to indicate iPod/iPhone is connected (page 44 ).
4 Character display
See Display on page 15 .
5 Remote sensor
Receives the signals from the remote control (page 11 ).
6 MASTER VOLUME dial
7 Front panel controls
To access the front panel controls, catch the sides of the door with your fingers and pull forward.
MASTER
VOLUME
STANDBY/ON
INPUT
SELECTOR
8 AUDIO PARAMETER
Use to access the Audio options (page 79 ).
9 i/j/k/l (TUNE/PRESET) /ENTER
Use the arrow buttons when setting up your HOME MENU. Use TUNE i/j to find radio frequencies and use
PRESET k/l to find preset stations (page 60 ).
10 VIDEO PARAMETER
Use to access the Video options (page 81 ).
11 MULTI-ZONE controls
If you’ve made MULTI-ZONE connections (page 40 ) use these controls to control the sub zone from the main
zone (page 85 ).
12 SPEAKERS
Use to change the speaker terminal (page 83 ).
13 iPod iPhone DIRECT CONTROL
Change the receiver’s input to the iPod and enable iPod operations on the iPod (page 57 ).
14 AUTO SURR/ALC/STREAM DIRECT
Switches between Auto Surround (page 64 ), Auto Level Control and Stream Direct mode (page 65 ).
15 STATUS
Displays the IP address and information such as selected/set functions and the input signal on the display (page
86 ).
16 TUNER controls
! BAND – Switches between AM and FM radio bands (page 60 ).
! TUNER EDIT – Use with TUNE i/j, PRESET k/l and ENTER to memorize and name stations for recall
(page 60 ).
17 HOME MENU
Use to access the Home Menu (pages 54 , 52 , 75 , 95 and 103 ).
18 RETURN
Press to confirm and exit the current menu screen.
19 PHONES jack
Use to connect headphones. When the headphones are connected, there is no sound output from the speakers.
20 MCACC SETUP MIC jack
Use to connect the supplied microphone (page 50 ).

Pioneer SC-LX78 Specifications

General

Receiver type	Surround
Speaker selector	A+B
Input sensitivity	400 mV
4Ω speaker support	Yes
Audio output channels	9.2 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	103 dB
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	210 W
Power output per channel (20-20KHz@8 Ohm)	250 W
HDMI in	8
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Multichannel audio output type	Terminals
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, M4A, MP3, WAV, WMA
Supported radio bands	AM, FM
Preset stations quantity	63
Optical drive included	No
Supported video modes	1080i, 1080p, 480p, 720p
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	370 W

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	15300 g
