36
Connecting your equipment
03
! In order to listening to HD audio with this receiver, connect an HDMI cable, and use analog video cable for
video signal input.
Depending on the player, it may not be possible to output video signals to both HDMI and other video output
(composite, etc.) simultaneously, and it may be necessary to make video output settings. Please refer to the
operating instructions supplied with your player for more information.
! If you want to listen to the sound of the TV over the receiver, connect the receiver and TV with audio cables
(page 34 ).
! If you use an optical digital audio cable or RCA (analog) audio cable, you’ll need to tell the receiver which digi-
tal input you connected the player to (see The Input Setup menu on page 52 ).

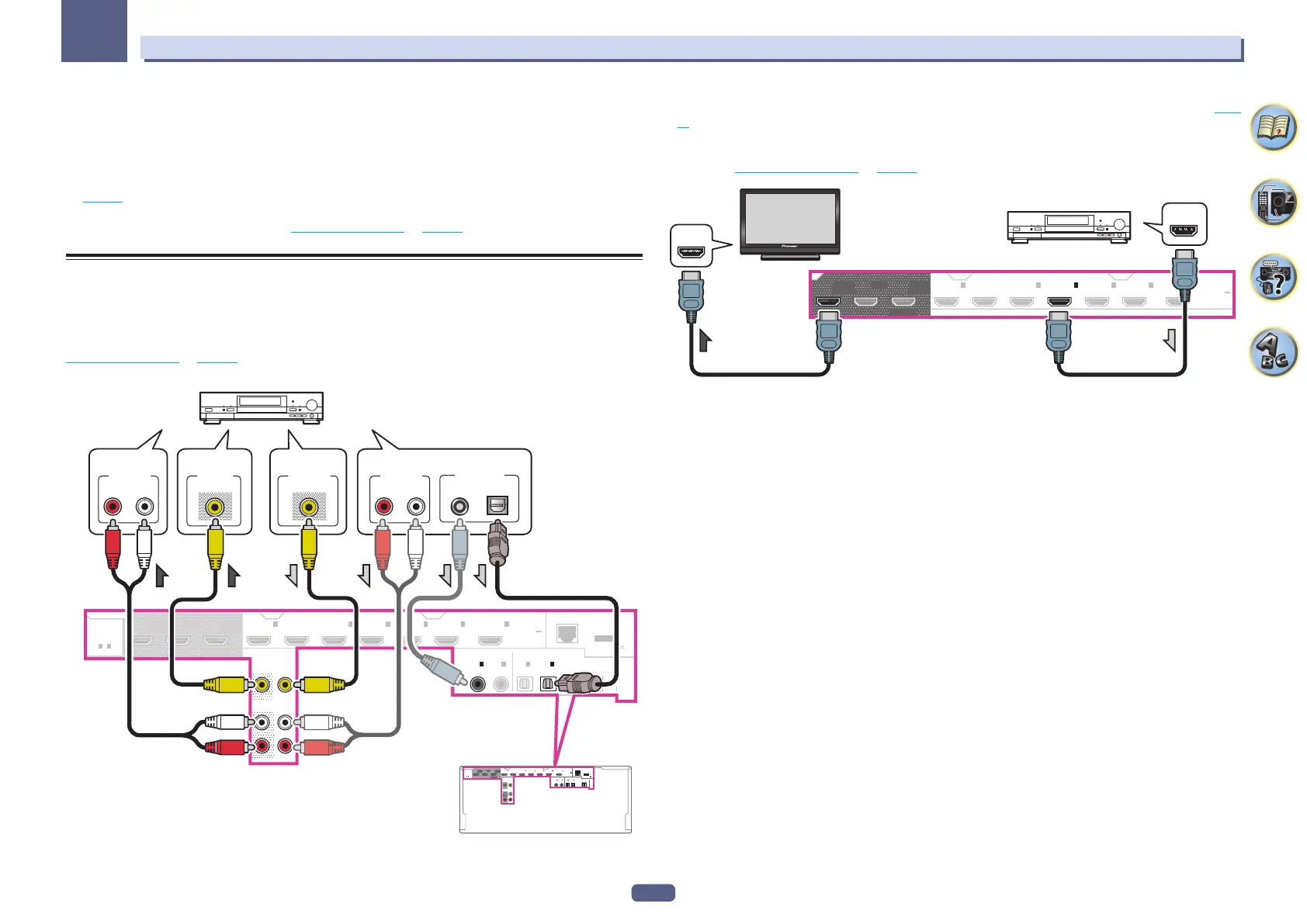

Connecting an HDD/DVD recorder, BD recorder and other video
sources
This receiver has audio/video inputs suitable for connecting analog or digital video devices, including HDD/DVD
recorders and BD recorders.
When you set up the receiver you’ll need to tell the receiver which input you connected the recorder to (see also
The Input Setup menu on page 52 ).
LAN
(
10/100
)
DC OUTPUT
for WIRELESS LAN
(
OUTPUT 5 V
0.6 A MAX
)
(
OUTPUT 5 V
0.9 A MAX
)
OPTICALCOAXIAL
ASSIGNABLEASSIGNABLE
DVR/BDR
INOUT
IN
1
(
DVD
)
BD IN
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
6
IN
4
IN
7
/MHL
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
OUT
OUT 3
(HDZONE)
OUT 2OUT 1
(CONTROL)
SELECTABLE
HDMI
ASSIGNABLE
1
-
7
LAN
(
10/100
)
DC OUTPUT
for WIRELESS LAN
(
OUTPUT 5 V
0.6 A MAX
)
(
OUTPUT 5 V
0.9 A MAX
)
OPTICALCOAXIAL
ASSIGNABLE ASSIGNABLE
DVR/BDR
INOUT
IN
1
(
DVD
)
BD IN
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
6
IN
4
IN
7
/MHL
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
OUT
OUT 3
(HDZONE)
OUT 2OUT 1
(CONTROL)
SELECTABLE
HDMI
ASSIGNABLE
1
-
7
VIDEO
VIDEO OUT
VIDEO
VIDEO IN
DIGITAL OUT
COAXIAL
ANALOG
RL
AUDIO OUT
ANALOG
RL
AUDIO IN
OPTICAL
Select one
HDD/DVD recorder, BD recorder, etc.
! In order to record, you must connect the analog audio cables (the digital connection is for playback only) (page
86 ).
! If your HDD/DVD recorder, BD recorder, etc., is equipped with an HDMI output terminal, we recommend con-
necting it to the receiver’s HDMI DVR/BDR IN terminal. When doing so, also connect the receiver and TV by
HDMI (see Connecting using HDMI on page 34 ).
OUT 3
(HDZONE)
OUT 2OUT 1
(CONTROL)
(
OUTPUT 5 V
0.9 A MAX
)
SELECTABLE
IN
1
(
DVD
)
BD IN
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
6
IN
4
IN
7
/MHL
HDMI IN
HDMI OUT
HDMI/DVI-
compatible monitor
HDD/DVD recorder, BD recorder, etc.
To Next Page
