Pioneer SC-LX78 User Manual

47
Connecting your equipment
03

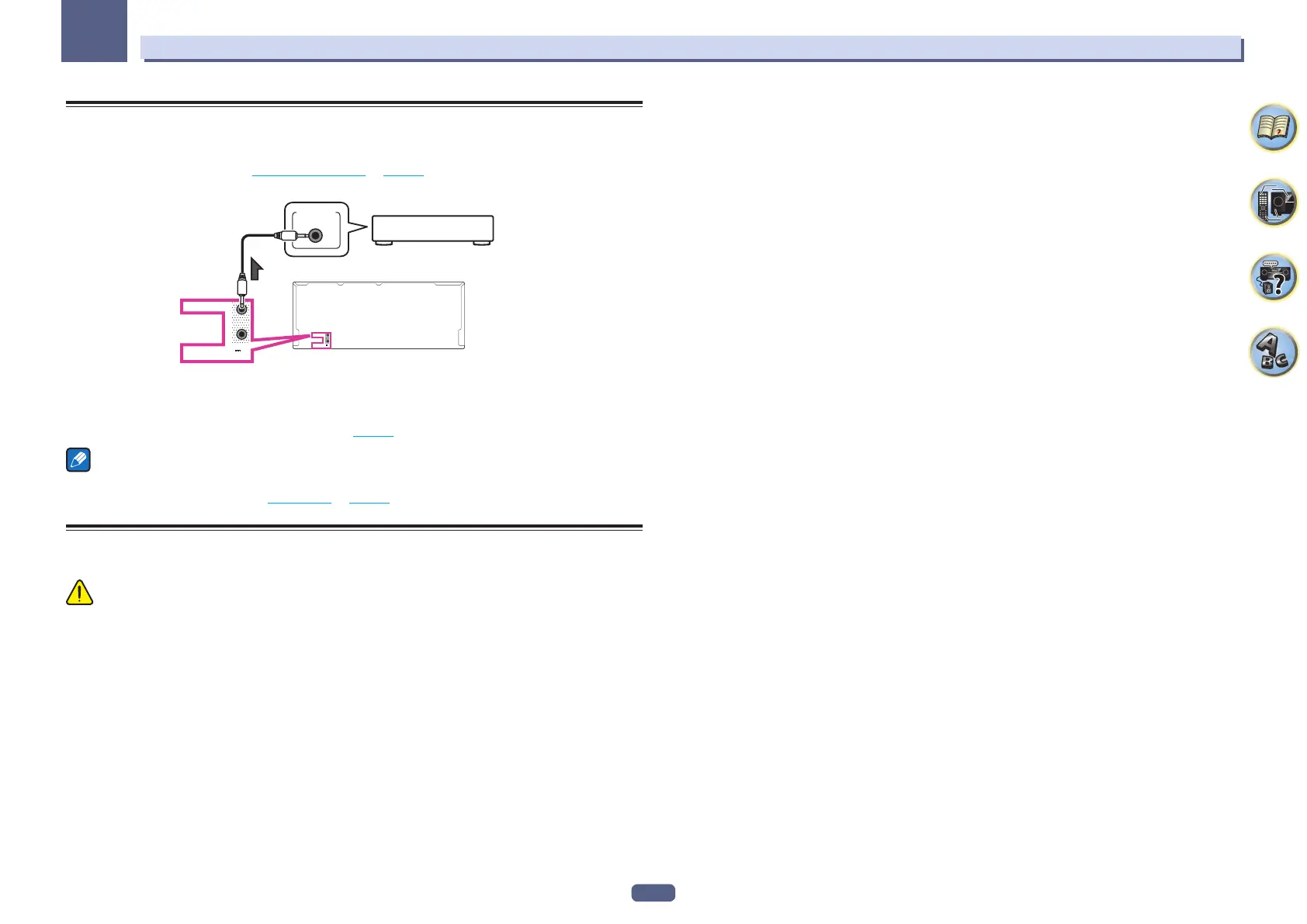

Switching components on and off using the 12 volt trigger
You can connect components in your system (such as a screen or projector) to this receiver so that they switch
on or off using 12 volt triggers when you select an input function. However, you must specify which input func-
tions switch on the trigger using the The Input Setup menu on page 52 . Note that this will only work with com-
ponents that have a standby mode.
(
OUTPUT 12 V
TOTAL 150 mA MAX
)
1
2
12V TRIGGER
(
OUTPUT 12 V
TOTAL 150 mA MAX
)
1
2
12V TRIGGER
12V TRIGGER
INPUT
% Connect the 12 V TRIGGER jack of this receiver to the 12 V trigger of another component.
Use a cable with a mono mini-plug on each end for the connection.
After you’ve specified the input functions that will switch on the trigger, you’ll be able to switch the component on
or off just by pressing the input function(s) you’ve set on page 52 .
Note
! The 12V trigger can be associated not only with switching of the input function but also with switching of the
HDMI OUT terminal. For details, see HDMI Setup on page 75 .
Plugging in the receiver
Only plug in after you have connected all your components to this receiver, including the speakers.
CAUTION
! Handle the power cord by the plug part. Do not pull out the plug by tugging the cord, and never touch the
power cord when your hands are wet, as this could cause a short circuit or electric shock. Do not place the
unit, a piece of furniture, or other object on the power cord or pinch the cord in any other way. Never make a
knot in the cord or tie it with other cables. The power cords should be routed so that they are not likely to be
stepped on. A damaged power cord can cause a fire or give you an electric shock. Check the power cord once
in a while. If you find it damaged, ask your nearest Pioneer authorized independent service company for a
replacement.
! Do not use any power cord other than the one supplied with this unit.
! Do not use the supplied power cord for any purpose other than that described below.
! The receiver should be disconnected by removing the mains plug from the wall socket when not in regular use,
e.g., when on vacation.
! Make sure the blue u STANDBY/ON light has gone out before unplugging.
1 Plug the supplied power cord into the AC IN socket on the back of the receiver.
2 Plug the other end into a power outlet.

Pioneer SC-LX78 Specifications

General

Receiver type	Surround
Speaker selector	A+B
Input sensitivity	400 mV
4Ω speaker support	Yes
Audio output channels	9.2 channels
Audio A/D Converter (ADC)	24-bit/192kHz
Signal-to-Noise Ratio (SNR)	103 dB
Total Harmonic Distortion (THD)	1 %
Power output per channel (1KHz@6 Ohm)	210 W
Power output per channel (20-20KHz@8 Ohm)	250 W
HDMI in	8
Ethernet LAN (RJ-45) ports	1
Component video (YPbPr/YCbCr) in	2
Number of HDMI outputs	3
Multichannel audio output type	Terminals
Speakers connectivity type	-
Audio formats supported	AAC, AIFF, FLAC, M4A, MP3, WAV, WMA
Supported radio bands	AM, FM
Preset stations quantity	63
Optical drive included	No
Supported video modes	1080i, 1080p, 480p, 720p
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Neo:X, DTS-ES, DTS-HD Master Audio
Volume control	Rotary
Apple docking compatibility	Not supported
On Screen Display (OSD) languages	DEU, DUT, ENG, ESP, FRE, ITA, RUS
AC input voltage	220-230 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.1 W
Power consumption (typical)	370 W

Weight and Dimensions

Depth	441 mm
Width	435 mm
Height	185 mm
Weight	15300 g
