Connecting your equipment
03

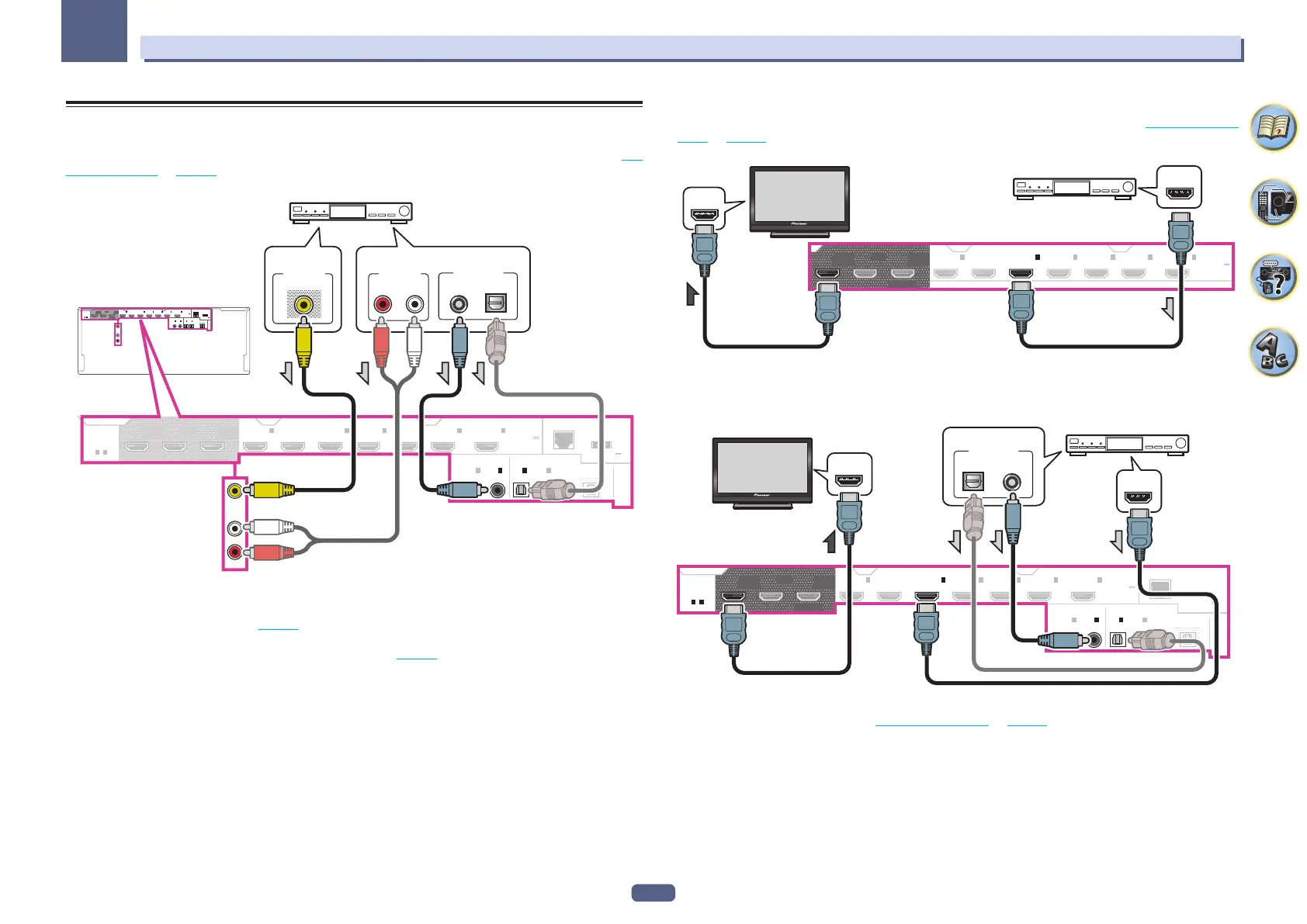

Connecting a satellite/cable receiver or other set-top box
Satellite and cable receivers, and terrestrial digital TV tuners are all examples of so-called ‘set-top boxes’.
When you set up the receiver you’ll need to tell the receiver which input you connected the set-top box to (see The
Input Setup menu on page 52 ).
LAN
(
10/100
)
DC OUTPUT
for WIRELESS LAN
(
OUTPUT 5 V
0.6 A MAX
)
(
OUTPUT 5 V
0.9 A MAX
)
OPTICALCOAXIAL
ASSIGNABLE ASSIGNABLE
SAT/CBL
IN
IN
1
(
DVD
)
BD IN
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
6
IN
4
IN
7
/MHL
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
OUT
OUT 3
(HDZONE)
OUT 2OUT 1
(CONTROL)
SELECTABLE
HDMI
ASSIGNABLE
1
-
7
SAT/CBL
IN
LAN
(
10/100
)
DC OUTPUT
for WIRELESS LAN
(
OUTPUT 5 V
0.6 A MAX
)
(
OUTPUT 5 V
0.9 A MAX
)
OPTICALCOAXIAL
ASSIGNABLE ASSIGNABLE
IN
1
(
DVD
)
BD IN
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
6
IN
4
IN
7
/MHL
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
OUT
OUT 3
(HDZONE)
OUT 2OUT 1
(CONTROL)
SELECTABLE
HDMI
ASSIGNABLE
1
-
7
VIDEO
VIDEO OUT
DIGITAL OUT
ANALOG
RL
AUDIO OUT
COAXIAL OPTICAL
Select one
STB
! With factory default settings, video from the video cable or component cable will not be output from the HDMI
terminal. To output video, you must switch video input to the device connected with the video cable or compo-
nent cable and set V.CONV to ON (page 81 ).
! If HDZONE is set to on, video images connected using a video cable or component cable are not output from
the HDMI terminal. To output video images, turn HDZONE off (page 85 ).
! If your set-top box is equipped with an HDMI output terminal, we recommend connecting it to the receiver’s
HDMI SAT/CBL IN terminal. When doing so, also connect the receiver and TV by HDMI (see Connecting using
HDMI on page 34 ).
OUT 3
(HDZONE)
OUT 2OUT 1
(CONTROL)
(
OUTPUT 5 V
0.9 A MAX
)
SELECTABLE
IN
1
(
DVD
)
BD IN
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
6
IN
4
IN
7
/MHL
HDMI IN
HDMI OUT
HDMI/DVI-compatible monitor
STB
! Even if your set-top box is equipped with an HDMI output terminal, in some cases the sound is output from
the digital audio output (optical or coaxial) and only the video is output from the HDMI output terminal. In this
case, make the HDMI and digital audio connections as shown below.
LAN
(
10/100
)
DC OUTPUT
for WIRELESS LAN
(
OUTPUT 5 V
0.6 A MAX
)
(
OUTPUT 5 V
0.9 A MAX
)
OPTICALCOAXIAL
ASSIGNABLE ASSIGNABLE
IN
1
(
DVD
)
BD IN
IN
2
(
SAT/CBL
)
IN
3
(
DVR/BDR
)
IN
6
IN
4
IN
7
/MHL
IN
1
(
TV
)
IN
2
(
DVR/BDR
)
IN
1
(
DVD
)
IN
2
(
SAT/CBL
)
OUT
OUT 3
(HDZONE)
OUT 2OUT 1
(CONTROL)
SELECTABLE
HDMI
ASSIGNABLE
1
-
7
DIGITAL OUT
COAXIALOPTICAL
HDMI OUT
HDMI IN
HDMI/DVI-compatible monitor
STB
Select one
— If you use a digital audio cable or RCA (analog) audio cable, you’ll need to tell the receiver which digital input
you connected the set-top box to (see The Input Setup menu on page 52 ).
To Next Page
