ELECTRICAL SYSTEMS
8.14
2004 Four Stroke PWC Service Manual
Starter Motor -- Disassembly

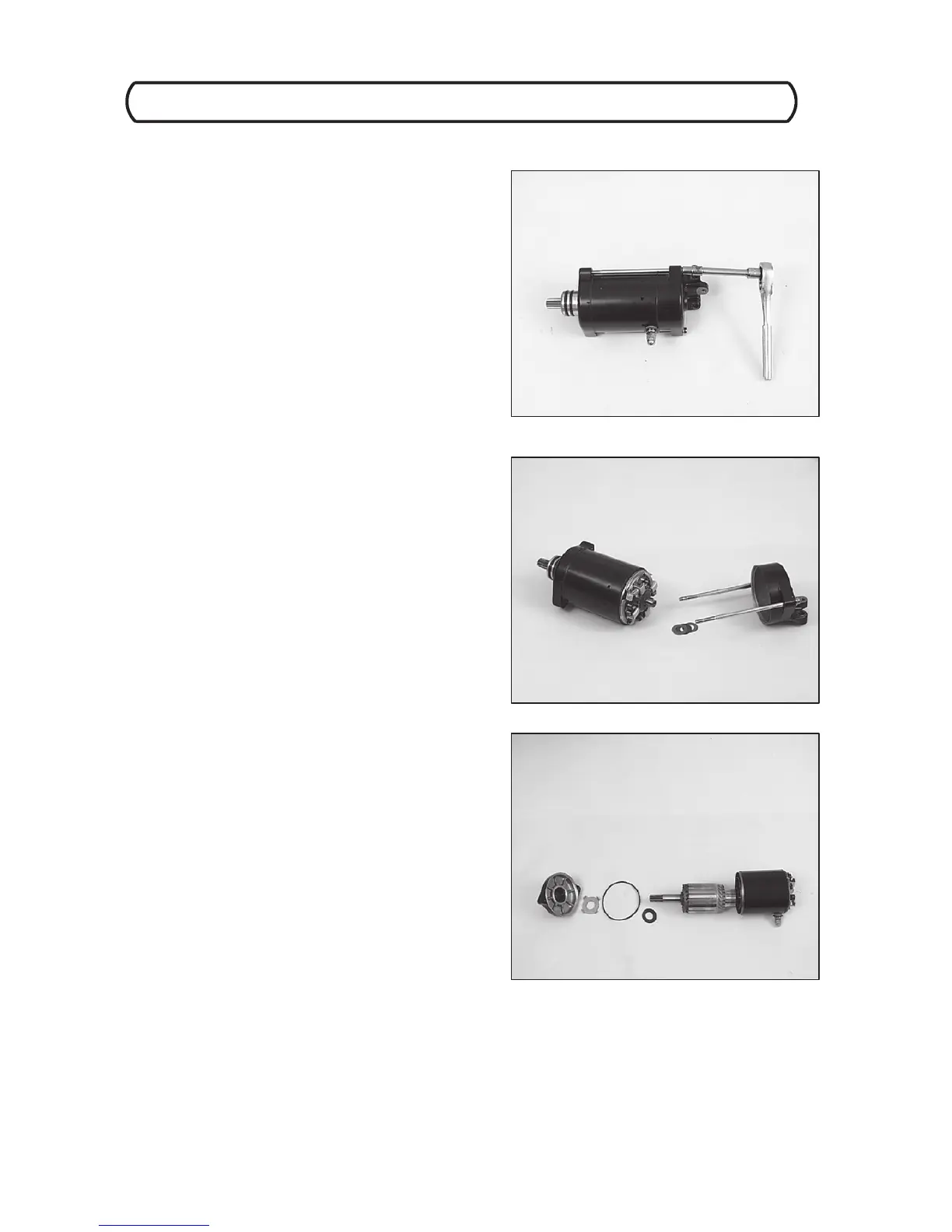

1. Remove starter motor and disassemble. Mark end
covers and housing for proper reassembly.
2. Remove housing through bolts.
3. Remove brush end bushing dust cover and
armature thrust washers. Keep washers in order for
reassembly.
4. Remove drive end cover and armature. Remove
thrust washer, phenolic washer, and shim washers.
Keep washers in order for reassembly.
