Advanced Applications
13 - 65
16 Mics With 6-Zone Sound Reinforcement
This example shows how to use the sound reinforcement and conferencing
processing to create an audio conferencing solution that includes a lectern
microphone, wireless microphone, and sixteen tabletop microphones that are
reinforced into the room. This example includes sixteen table microphones, a
lectern microphone, a wireless microphone, stereo program audio, a single
telephony interface, and six zones of audio amplifiers for reinforcement.

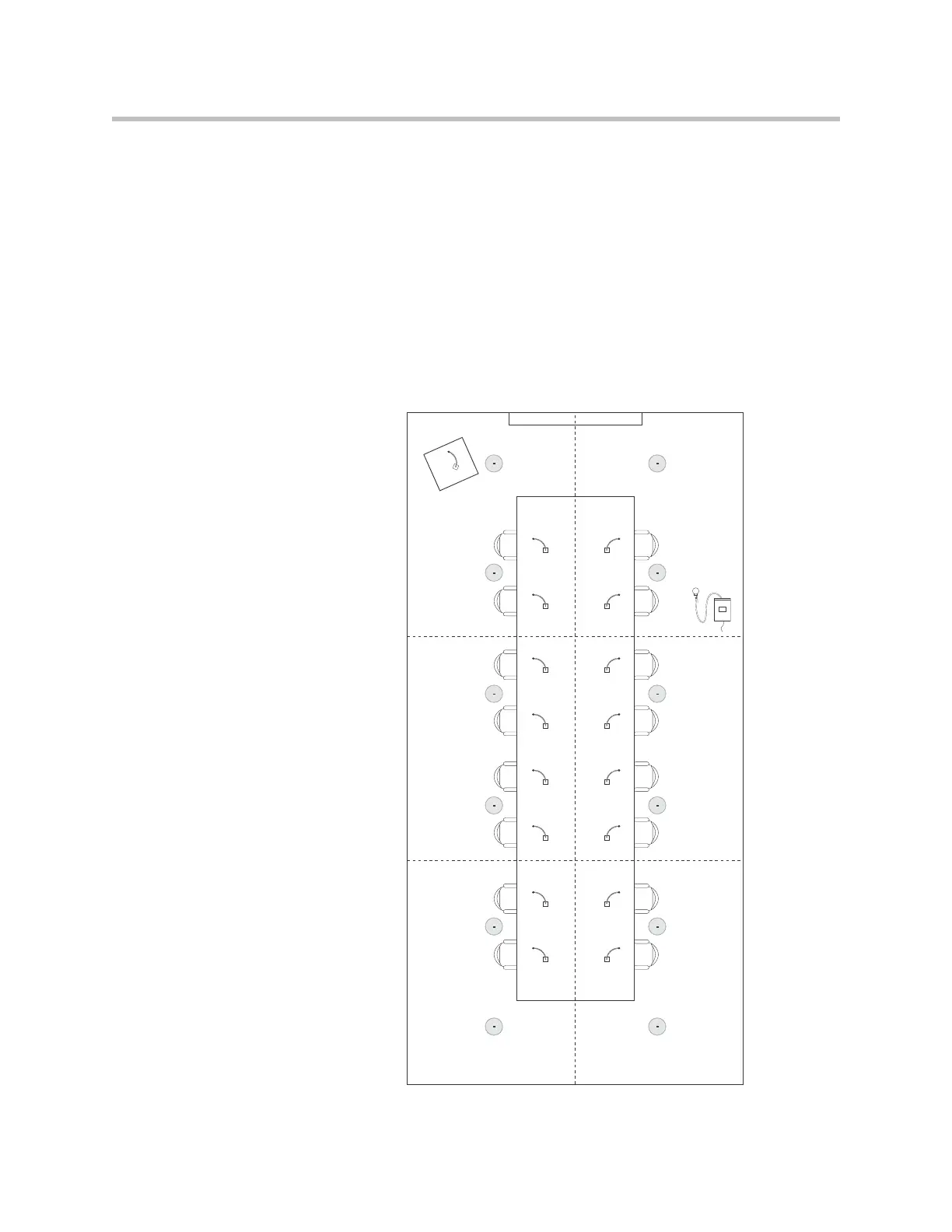

The layout for this style of room can be seen in the following figure along with
the zone definitions. In this room, the lectern microphone will be reinforced
into zones 2-6, the wireless microphone reinforced into zones 1-6, and each
table microphone zone reinforced into all the other zones at varying levels
depending on the proximity between zones.
Lectern
Zone 1
Zone 2
Zone 3
Zone 6
Zone 5
Zone 4
A
Mic 1
Display
Mic 2
Mic 3
Mic 4
Mic 5
Mic 6
Mic 7
Mic 8
Mic 16
Mic 15
Mic 14
Mic 13
Mic 12
Mic 11
Mic 10
Mic 9
ABC ABC
ABC ABC
ABC ABC
ABC ABC
ABC ABC
ABC ABC
To Next Page
