Design Guide for the Polycom SoundStructure C16, C12, C8, and SR12
3 - 14

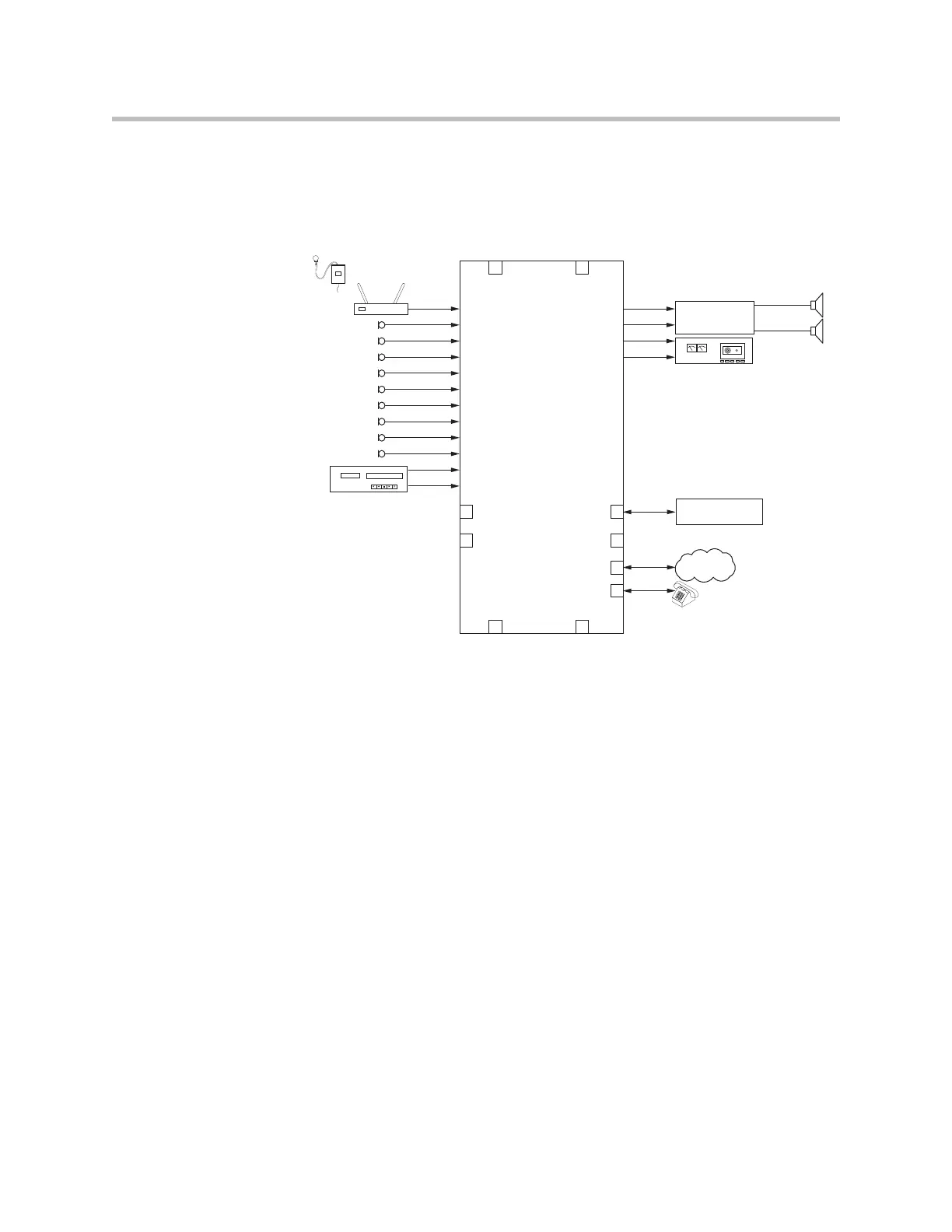

As an example of using physical channels, virtual channels, and virtual chan-
nel groups, consider a SoundStructure C12 device where there are ten
microphone inputs, a telephony interface, and a Polycom HDX system as
shown in the following figure.
In this example, there is a wireless microphone and a podium microphone,
both reinforced into the room, eight table top microphones, and a stereo VCR
for audio playback. As shown in this figure the system is wired with the wire-
less microphone in input 1, the podium mic on input 2, the table mics 1-8 on
inputs 3-10, a stereo VCR is connected to inputs 11 and 12 and a Polycom HDX
video codec is connected over the digital ConferenceLink interface.
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
C-LINK2
LOGIC IN LOGIC OUT
C-LINK2
OBAM IN
OBAM OUT
LINE
PHONE
Ethernet
RS-232
SoundStructure
C12
Receiver
12:00 am
VHS
Amplifier
Polycom HDX System
Loudspeakers
PSTN
Network
Favorite Content
A
A
Wireless Mic
Amplifier
Record
770-350-4400
To HDX
From HDX
Podium Mic
Table Mic 1
Table Mic 2
Table Mic 3
Table Mic 4
Table Mic 5
Table Mic 6
Table Mic 7
Table Mic 8
VCR
