protech SE-8134 User Manual

Appendix A System Diagrams
SE-8134 SERIES USER MANUAL
Page: A-4

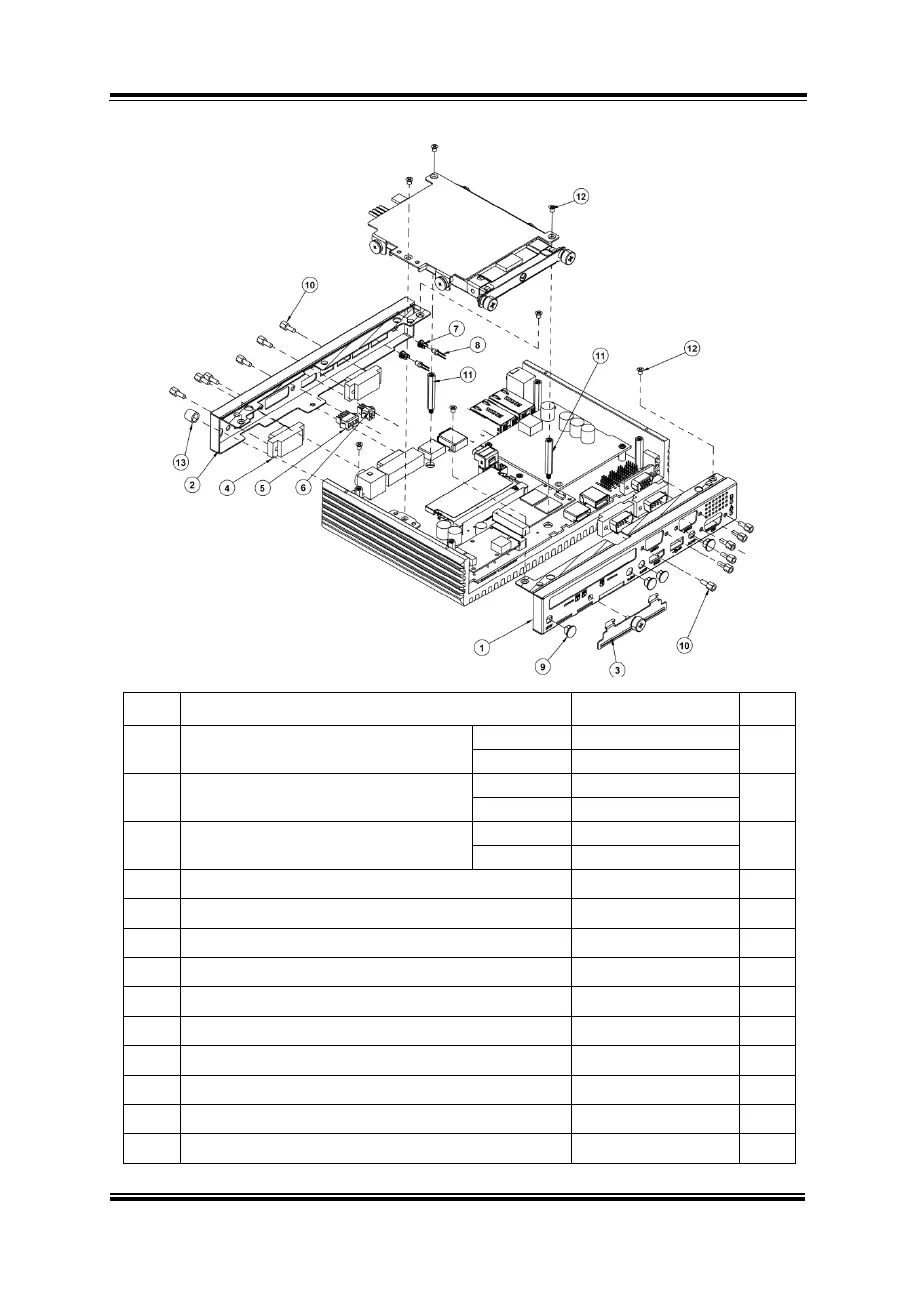

Front & Rear I/O Panel Installation Exploded Diagram
No.
Component Name
Part No.
Q’ty
1
Front I/O Plate
Blue
20-005-03063401
1
Silver
20-005-03064401
2
Back I/O Plate (w/Paint)
Blue
20-005-03061401
1
Silver
20-005-03062401
3
SD & SIM I/O Cover (w/Paint)
Blue
20-004-03063401
1
Silver
20-004-03064401
4
COM Port Cable
4
5
I2C Cable
1
6
Remote SW. Cable
1
7
LED Housing (Black)
30-014-04100165
2
8
PoE LED Cable L=75mm (GREEN)
27-018-40102071
2
9
Hole Plug (Φ 6.6mm) (Black)
90-067-01100000
4
10
HEX CU Boss UNC No.4-40, L=4.8, H=7mm
22-692-40048051
12
11
HEX Boss(NI) M3x0.5Px4.5L, H=28.5mm
22-252-30029901
2
12
Flat Head Screw M3x0.5Px4mm (Black)
22-215-30004011
3
13
Switch Expanding Cover
30-001-28100099
1
