Chapter
3
Ha
rdware
Configuration
SE
-8134 SERIES USER
MANUAL
Page: 3-
23

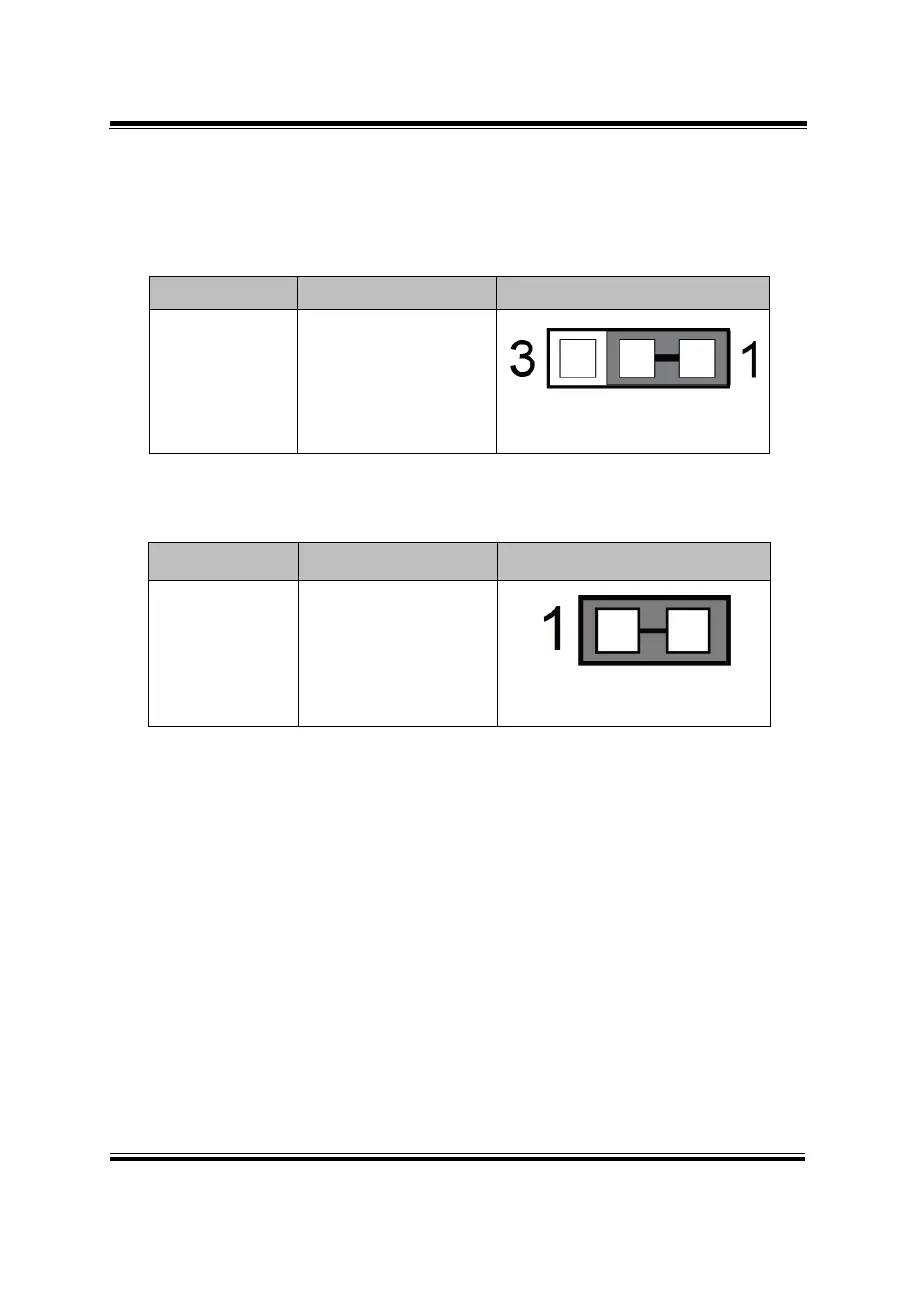

3.4.16
HDMI2 SELEC
TION
Connector Location:
JP_EDP1, JP8
Description:
J
umper for selecting
JP_EDP1, JP8 of
HDMI2
JP_EDP1 signals:
SELECTION
JUMPER SETTIN
G
JUMPER ILLUSTRA
TION
HDMI
1-2
(Default Setting)
JP_EDP1
JP8 signals:
SELECTION
JUMPER SETTIN
G
JUMPER ILLUSTRA
TION
HDMI
1-2
(Default Setting)
JP8
39
41
Table of Contents
Table of Contents
4
Revision History
8
Introduction
9
About this Manual
10
Getting Started
11
Package List
12
System Overview
13
Front View
13
Rear View
13
Top View
13
Side View
14
Quarter View
14
System Specifications
15
Safety Precautions
17
System Configuration
18
Jumper & Connector Quick Reference Table
19
Component Locations of System Main Board
20
Top View of System Main Board
20
Bottom View of System Main Board
22
How to Set Jumpers
23
Setting Main Board Connectors and Jumpers
25
COM Connector
25
COM1 and COM2 PIN9 Definition Selection Guide
27
Power Input Connector
28
Power Button Connector
28
LAN1, LAN2 Ports
29
Dual USB 3.0 Connectors
31
USB 3.0 Connectors
32
Digital Input/Output Connector
33
I2C Wafer
34
I2C PIN2 Voltage Selection
35
DVI Port
36
HDMI Port Connector
37
HDMI Audio Connector
38
Low Pin Count (LPC) Connector
39
Power over Ethernet (Poe) Connector
39
Hdmi2 Selection
40
Mini Pci Express Slot
41
Mini- Serial ATA (SATA) SLOT
42
Serial ATA (SATA) 3.0 Connector
43
HDD Power Connector
43
AT / ATX Mode Selection
44
TPM Module Selection
44
Clear Cmos Data Selection
45
Software Utilities
46
Introduction
47
Installing Intel Chipset Software Installation Utility
48
Introduction
48
Intel ® Chipset Software Installation Utility
48
Intel ® Trusted Execution Engine Driver
49
Installation
49
Introduction
49
Installation Instructions for Windows 10
49
Intel ® Patch Driver Installation
50
Introduction
50
Installation Instructions for Windows 10
50
Installing Graphics Driver Utility
51
Installing LAN Driver Utility
52
Installing Sound Driver Utility
53
Installing Intel Serial I/O Driver Utility
54
Bios Setup
55
Introduction
56
Accessing Setup Utility
58
Main
61
Advanced
63
Advanced - ACPI Settings
64
Advanced - Hardware Monitor
65
Advanced - F81946 Watchdog Configuration
66
Advanced - CPU Configuration
67
Information
67
Management
67
Advanced - F81946 Super IO Configuration
71
Advanced - Network Stack Configuration
76
Advanced - USB Configuration
77
Advanced - Platform Trust Technology
78
Chipset
79
Chipset -North Bridge
80
Chipset -South Bridge
81
Chipset -South Bridge- HD-Audio Configuration
82
Chipset -South Bridge- LPSS Configuration
83
Chipset -South Bridge- PCI Express Configuration
84
Chipset -South Bridge- SATA Drives
89
Chipset -South Bridge- Miscellaneous Configuration
90
Security
91
Boot
93
Save & Exit
95
Appendix A System Diagrams
97
SE-8134 Bottom Cover Exploded Diagram
98
Heat Sink Exploded Diagram
99
Front & Rear I/O Panel Installation Exploded Diagram
100
Mother Board Exploded Diagram
101
HDD Module Exploded Diagram
102
Packing Exploded Diagram
103
Appendix B Technical Summary
104
System Block Diagram
104
Interrupt Map
106
I/O Map
121
Memory Map
123
Configuring Watchdog Timer
125
Flash BIOS Update
