Quectel EC21 Series User Manual

LTE Standard Module Series
EC21_Series_Hardware_Design
110
/ 118
6.3. Top and Bottom Views

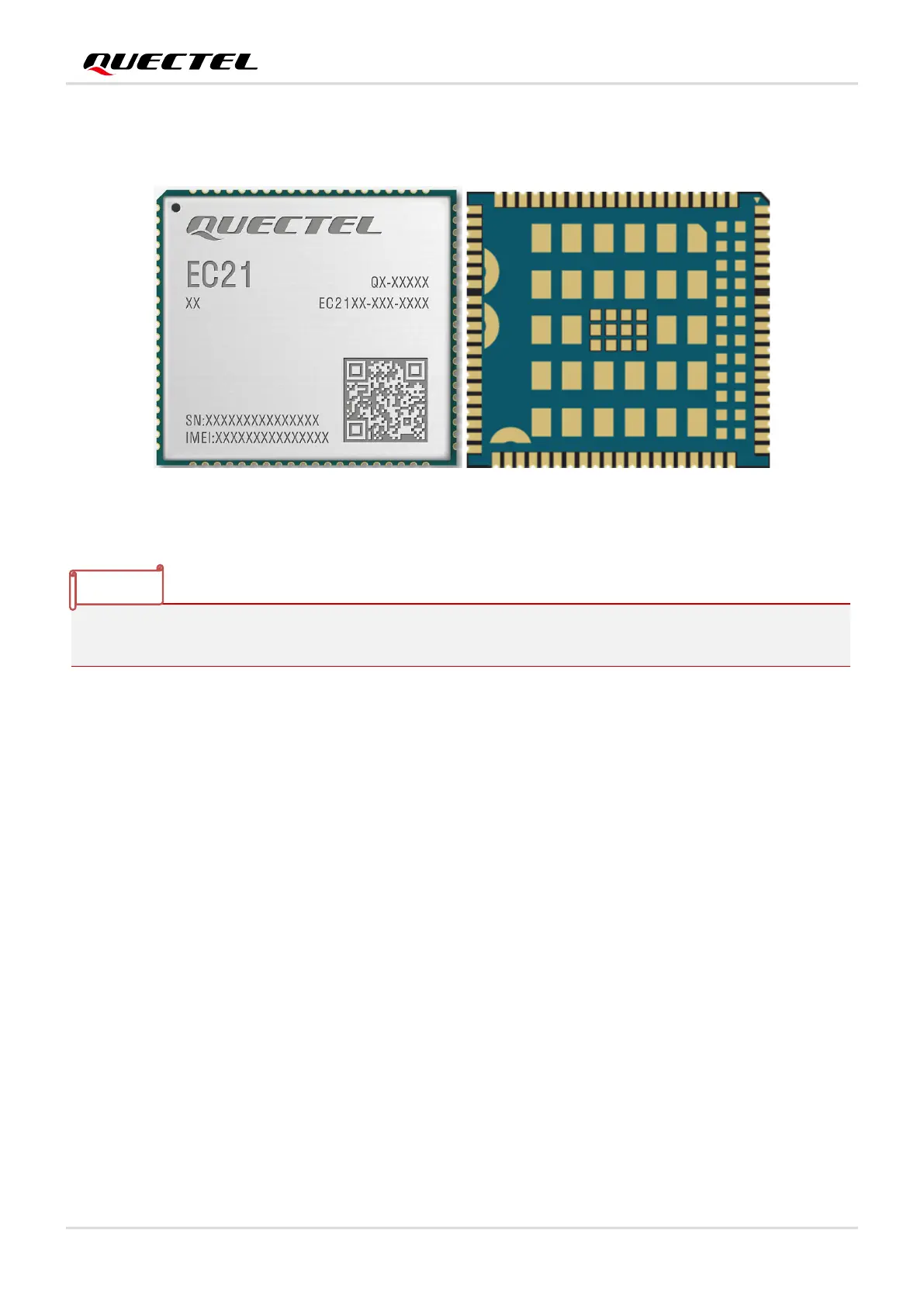

Figure 47: Top and Bottom Views of the Module
Images above are for illustration purpose only and may differ from the actual module. For authentic
appearance and label, please refer to the module received from Quectel.
NOTE
