LTE Standard Module Series
EC21_Series_Hardware_Design
114
/ 118

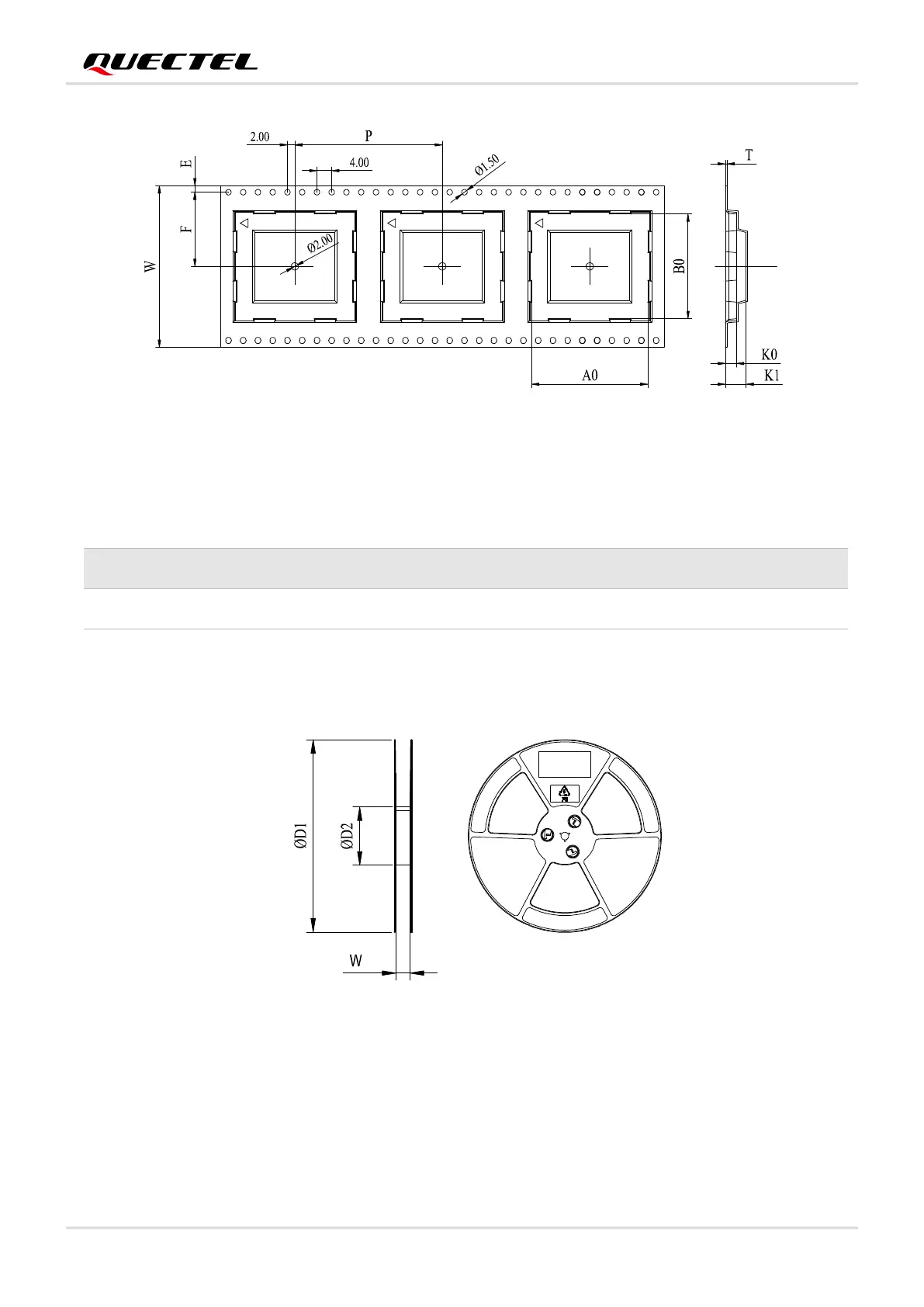

Figure 49: Carrier Tape Dimension Drawing
Table 58: Carrier Tape Dimension Table (Unit: mm)
7.3.2. Plastic Reel
Figure 50: Plastic Reel Dimension Drawing
W P T A0 B0 K0 K1 F E
44 44 0.35 32.5 29.5 3.0 3.8 20.2 1.75
