3.2.1.2. USB Application with USB Suspend/Resume and WOWWAN# Functions
If the host supports USB suspend/resume but does not support remote wake-up function, the
WOWWAN# signal is used to wake up the host.
There are two preconditions to let the module enter sleep mode.
⚫ Execute AT+QSCLK=1 to enable sleep mode.
⚫ The host’s USB bus, which is connected with the module’s USB interface, enters suspend state.
The following figure shows the connection between the module and the host.
USB_DP
USB_DM
USB_DP
USB_DM
Module
Host
GND
GND
WOWWAN#
EINT

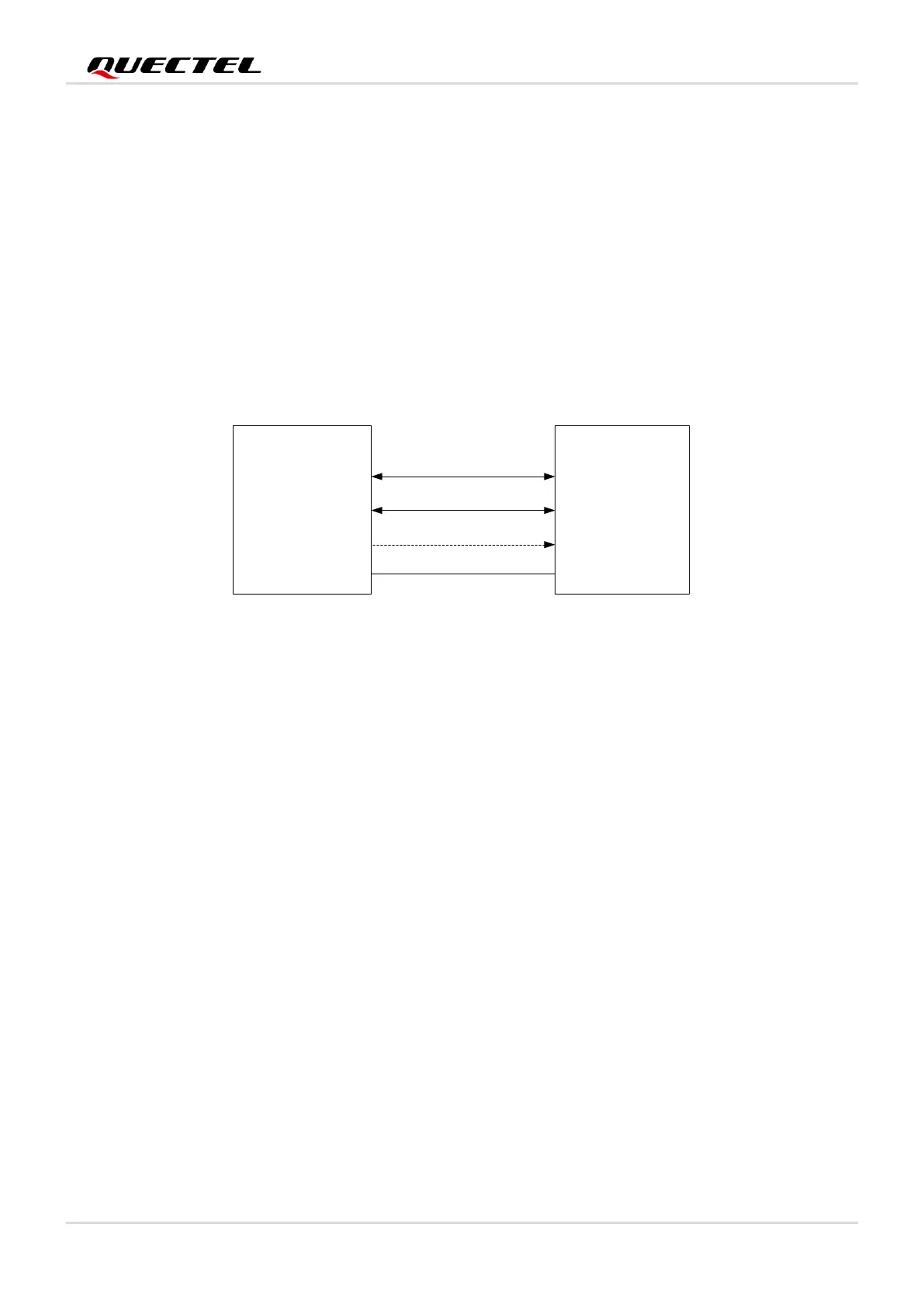

Figure 5: Sleep Mode Application with WOWWAN#
⚫ Sending data to EM05-G via USB will wake up the module.
⚫ When EM05-G has a URC to report, WOWWAN# signal will wake up the host.
3.2.2. Airplane Mode
When the module enters airplane mode, RF function does not work, and all AT commands correlative with
RF function will be inaccessible. This mode can be set via the following ways.
Hardware:
The W_DISABLE1# pin is pulled up by default; driving it to low level will let the module enter airplane
mode.
Software:
AT+CFUN provides the following choices of the functionality level.
⚫ AT+CFUN=0: Minimum functionality mode; both (U)SIM and RF functions are disabled.
⚫ AT+CFUN=1: Full functionality mode (by default).
⚫ AT+CFUN=4: Airplane mode. RF function is disabled.
