Quectel Smart EVB G5 User Manual

Smart Module Series
Smart_EVB_G5_User_Guide 42 / 66

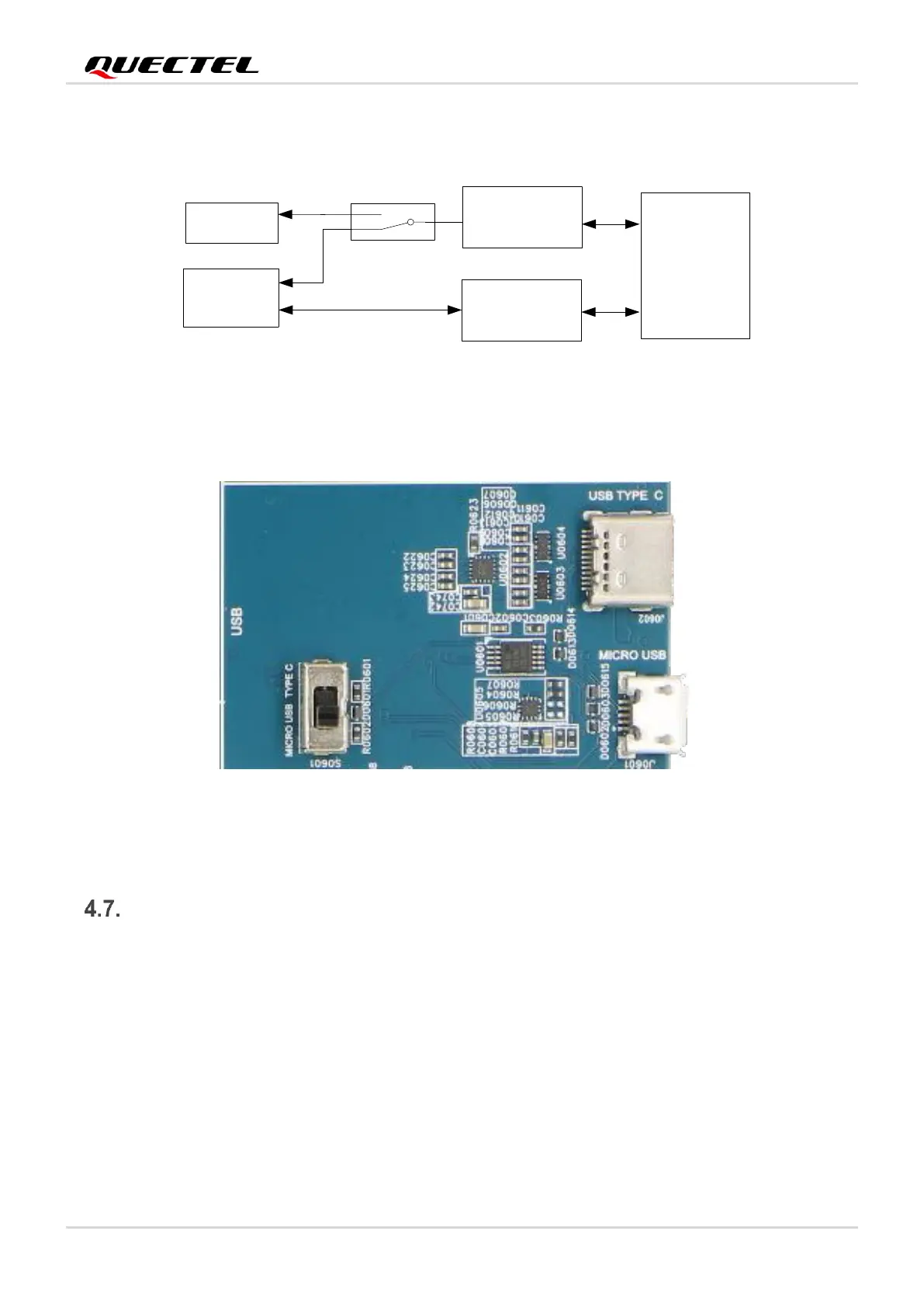

The following figure shows a reference circuit design for USB interfaces.
Module
J0601
Micro-USB
J0602
USB Type-C
S0601
USB Switch
U0601
USB2.0 Switch IC
U0602
USB3.0 Switch IC
Figure 22: Reference Design for USB Interfaces
The following figure shows the USB interfaces.
Figure 23: USB Interfaces
Audio Interfaces
Smart EVB G5 provides three groups of analog audio outputs: one mono loudspeaker, one mono earphone,
and one stereo headset. The Smart EVB G5 further provides three groups of analog audio inputs: two
single-ended microphone inputs and one differential microphone input. One single-ended microphone
input is used for headset interface. The other single-ended microphone input and the differential
microphone input are used for microphone interfaces.
