Quectel Smart EVB G5 User Manual

Smart Module Series
Smart_EVB_G5_User_Guide 55 / 66

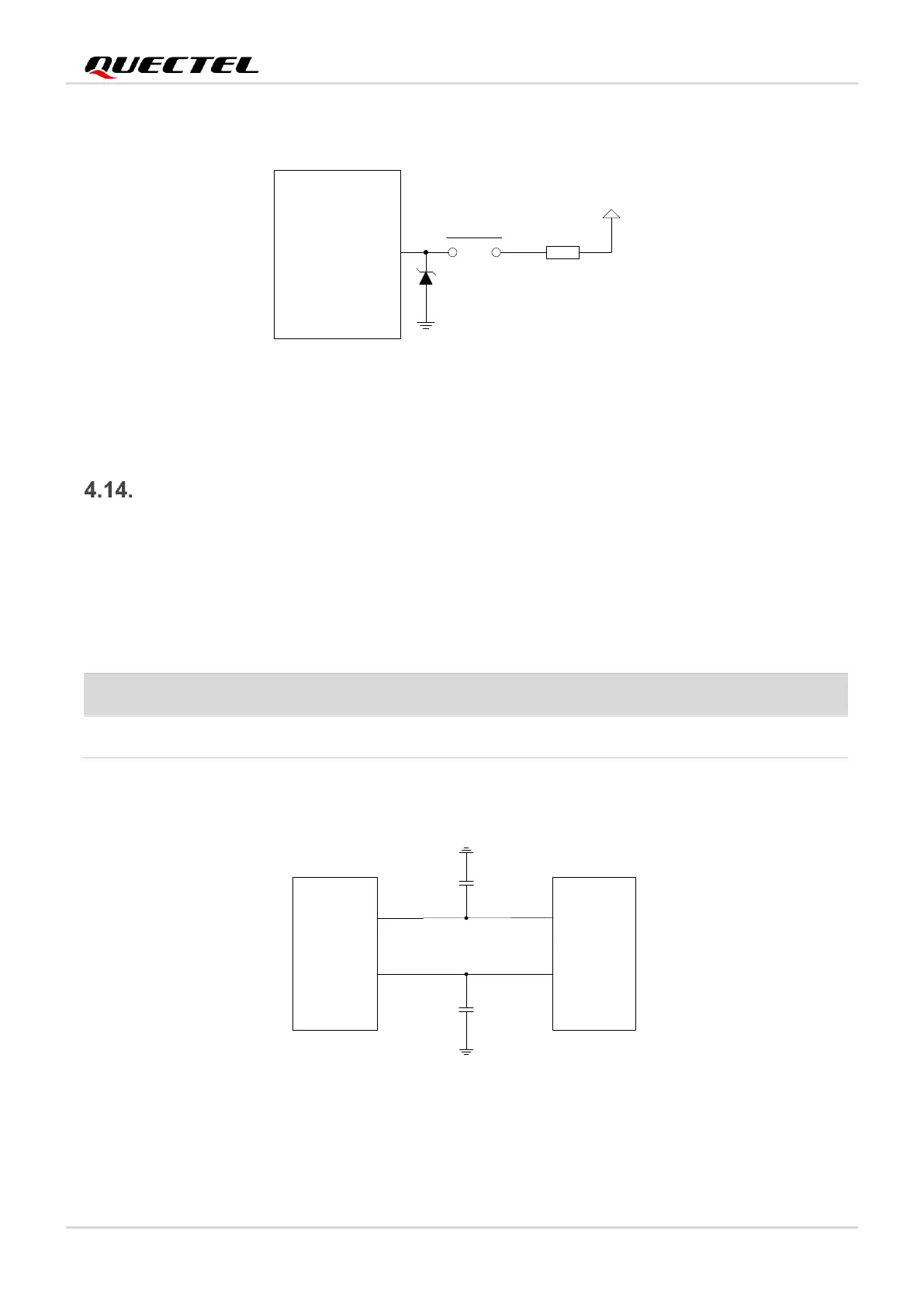

The following figures show a reference circuit design for the emergency download interface.
LDO5_1V8
S1
Module
USB_BOOT
R1
10K
Figure 40: Reference Design for USB_BOOT
Vibrator
Smart EVB G5 provides an ERM-type vibrator for customers to test the motor driver interface of Smart
modules.
Table 26: Description of Vibrator
The following figures show a reference circuit design and the vibrator on the board.
HAP_N
33pF
Module
VIB+
Motor
VIB-
C2
33pF
C1
HAP_P
Figure 41: Reference Design for Vibrator
RefDes.
Description
U0305
Test module’s motor driver interface.
