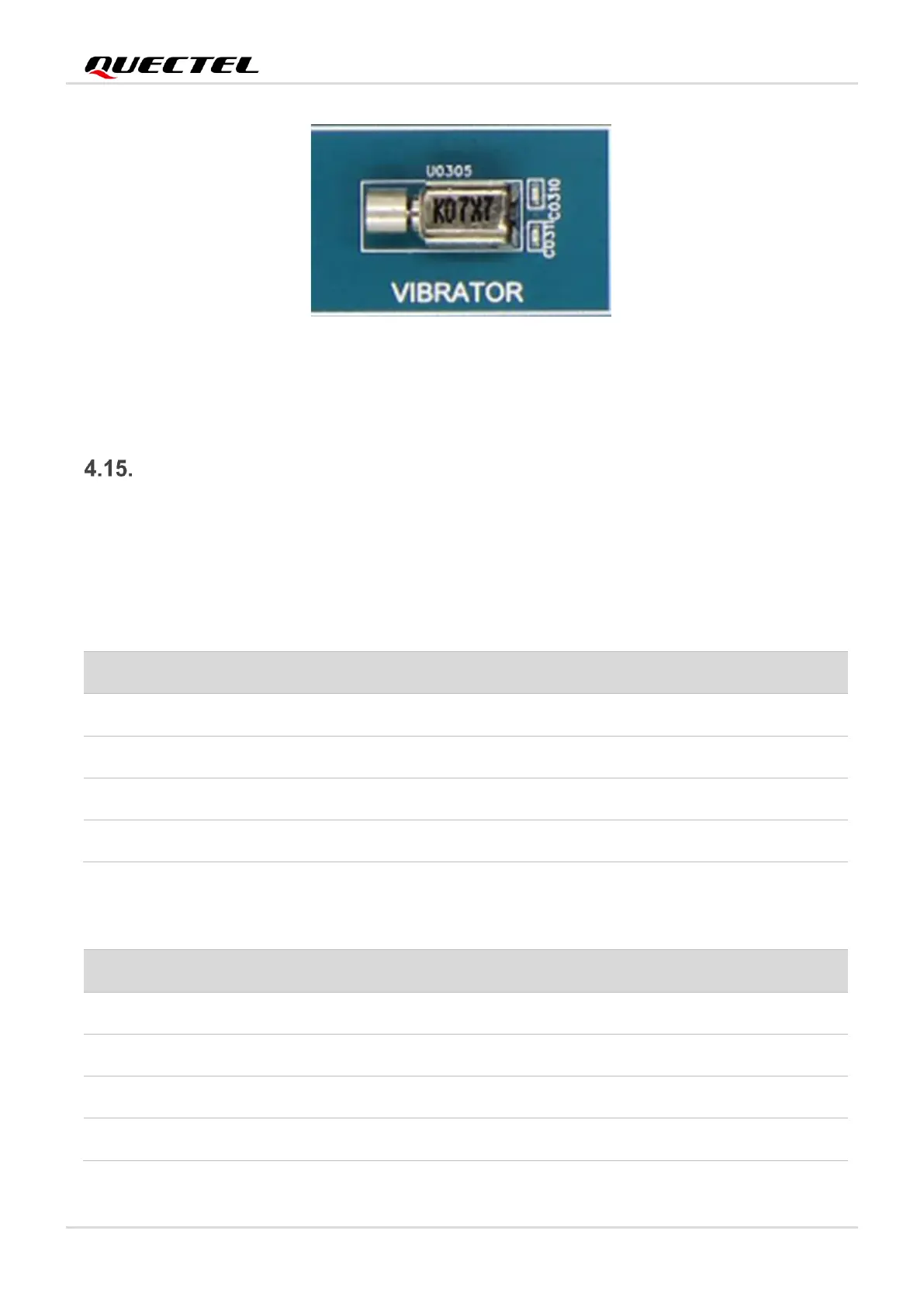

Figure 42: ERM-Type Vibrator
Switches and Buttons
Smart EVB G5 includes four switches and four buttons, which are illustrated in the following tables and
figures.
Table 27: Description of Switches
Table 28: Description of Buttons
RefDes.
Description
S0201
Used to select DC power supply or battery power supply
S0202
Used for VBAT on/off control
S0501
Used for enable emergency download function
S0601
Used to select Micro USB or USB Type-C
RefDes.
Description
S0502
Turn on/off the module
S0503
Used to reset the module
S0504
Turn the volume down
S0505
Turn the volume up
