Sensors
Smart EVB G5 provides three sensors for testing purpose, as shown in the table and figure below.
Table 25: Description of Sensors
U0302
U0301
U0304

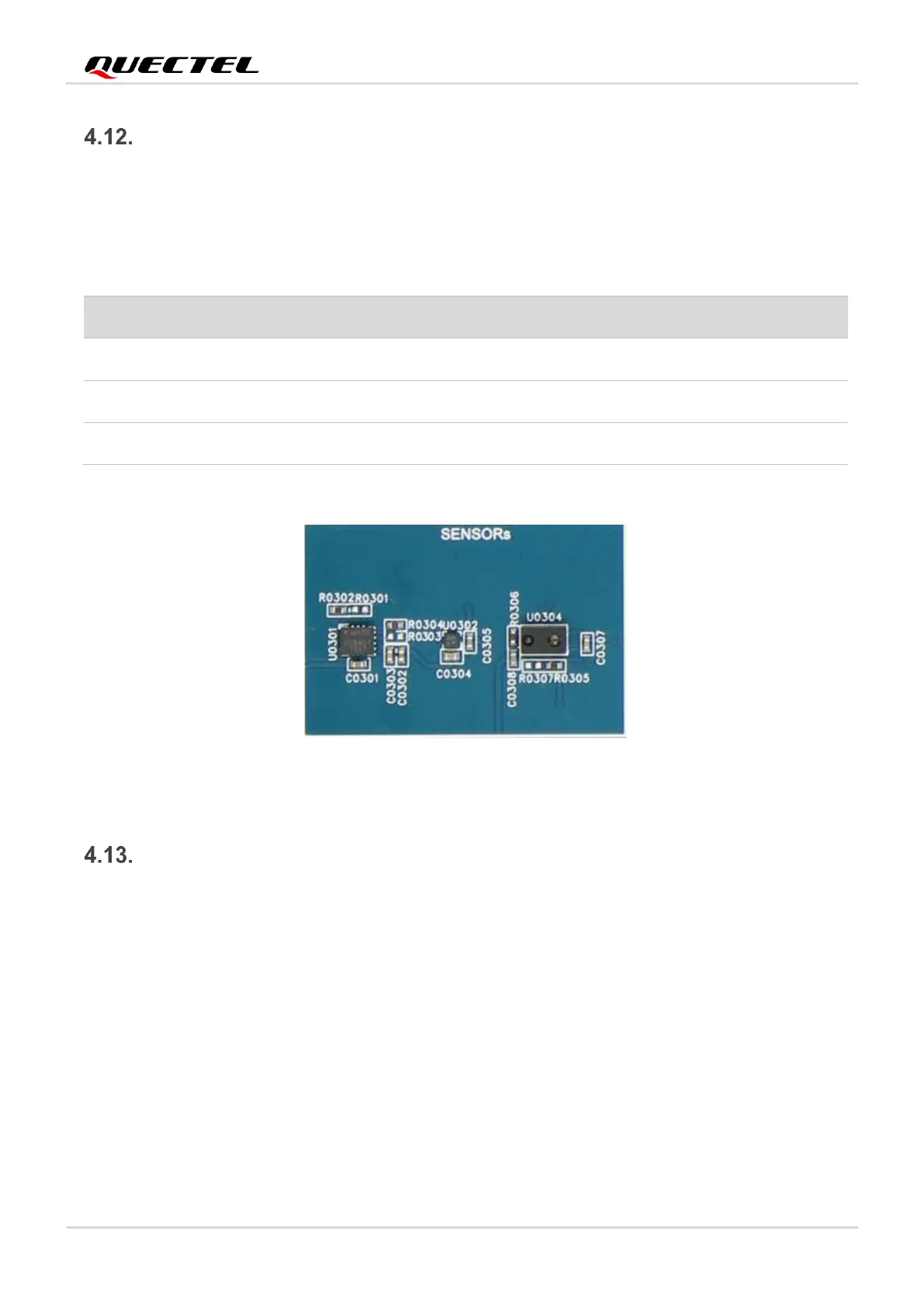

Figure 39: Sensors
Emergency Download Interface
Smart EVB G5 provides one emergency download interface FORCE USB BOOT to force the module to
enter emergency download mode. Pull up USB_BOOT to 1.8 V before powering on the module when the
function is used.
RefDes.
Description
U0301
Accelerometer and gyroscope sensor
U0302
Geomagnetic sensor
U0304
Ambient light sensor (ALS) and proximity sensor (PS)

Quectel Smart EVB G5 Specifications

General

Brand	Quectel
Model	Smart EVB G5
Category	Control Unit
Language	English
