Flashlights
Smart EVB G5 provides two flashlight LEDs for testing the module’s flashlight interfaces which support
flash mode and torch mode.
Table 24: Description of Flashlight

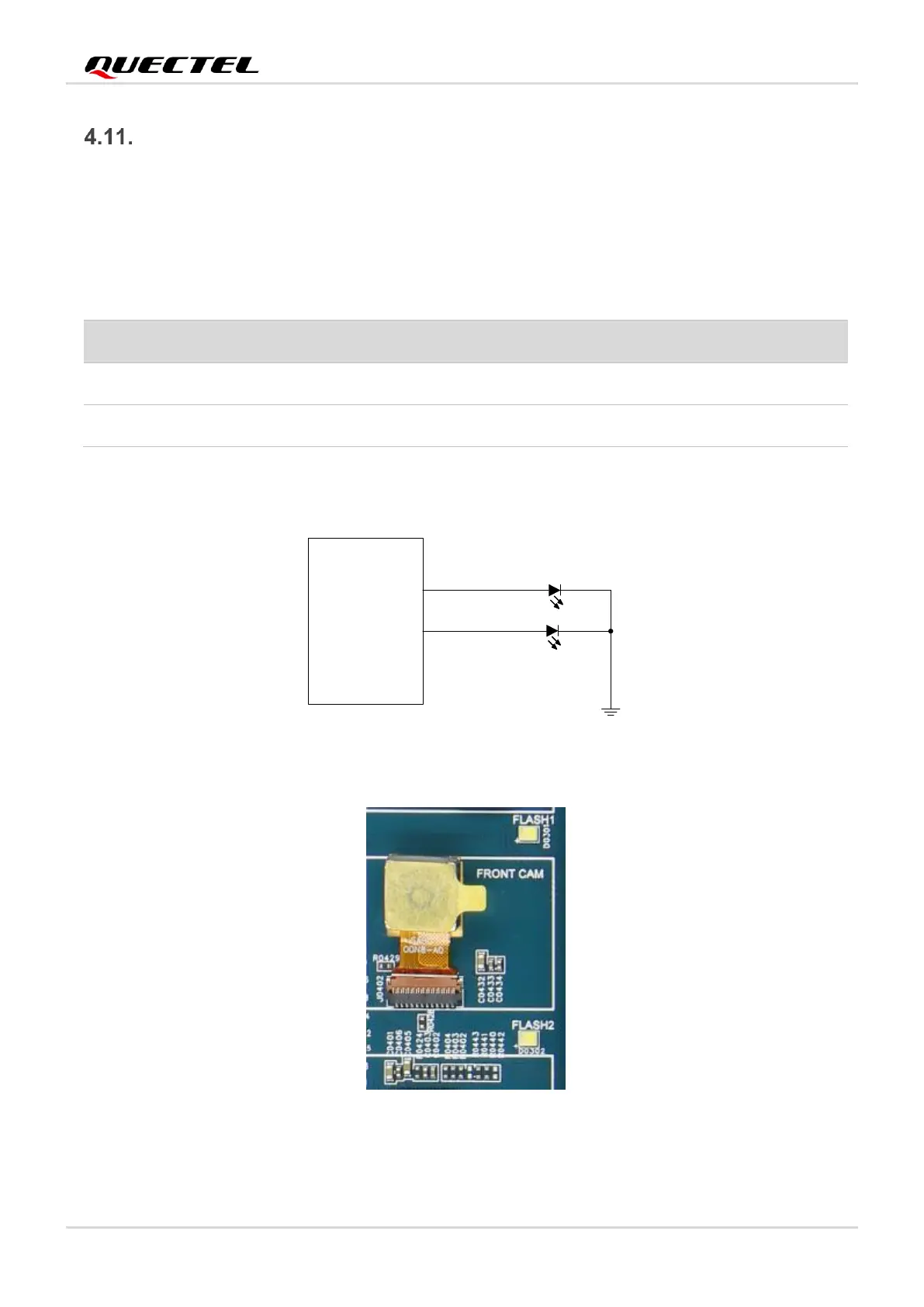

The following figures show a reference circuit design for flashlights and their locations on Smart EVB G5.
Module
D0302
FLASH_LED1
D0301
FLASH_LED2
Figure 37: Reference Circuit Design for Flashlight Interfaces
Figure 38: Flashlights
RefDes.
Description
D0301
Flashlight LED1 for testing module’s flashlight interface
D0302
Flashlight LED2 for testing module’s flashlight interface
D0301
D0302
