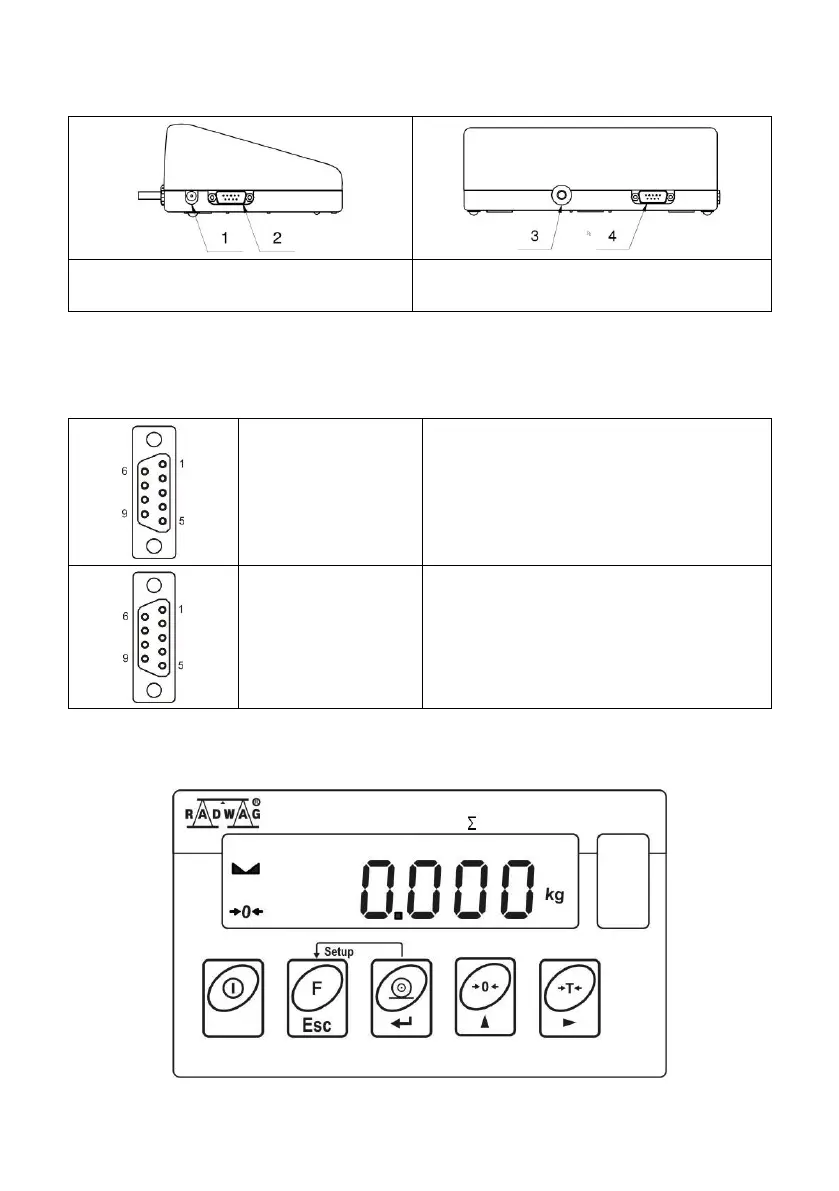

6.5. Connectors Arrangement
1 – power supply socket
2 – RS232 connector
3 – weighing platform cable inlet
4 – USB* connector
*) - option.
6.6. Connectors Arrangement
Pin2 – RxD
Pin3 – TxD
Pin4 – 5VDC
Pin5 – GND
RS232 connector DB9/M (male)
Pin6 – GND
Pin7 – D+
Pin8 – D-
Pin9 – 5V
USB connector DB9/M (male)
7. OPERATION PANEL
