25.5Adjustingvolumelevelsforeach

zone

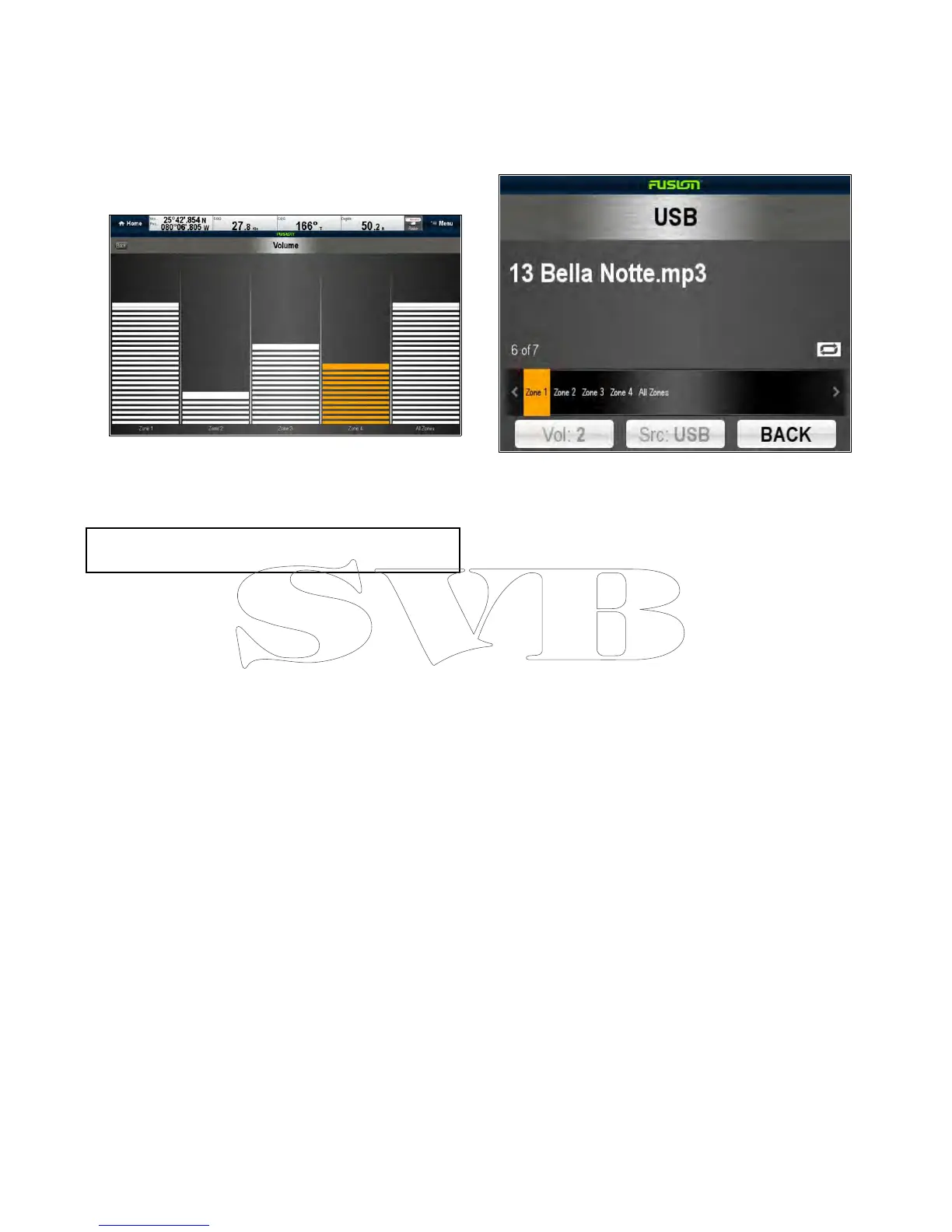

Thevolumelevelforeachzonecanbeadjusted

individuallyoryoucanadjustallzonesatthesame

time.

FromtheFusionlinkapplication:

1.SelectVol:.

Thezonevolumecontrolisdisplayed.

2.Selecttherelevantzone.

3.Adjustthevolumeleveltotherequiredsetting.

4.SelecttheBackicontogobacktothemain

screen.

Note:AdjustingtheAllZoneslevelwilladjustallof

thezonesatthesametime.

25.6Selectingthezonetocontrol

Youcanselectwhichzonethemainscreenwill

control.

FromtheFusionlinkapplication:

1.SelectZone:.

Thezoneselectionbarisdisplayed.

2.Selectthezoneyouwanttocontrol.

3.Thevolumecontrolsonthemainscreenwillnow

controlthevolumeleveloftheselectedzone.

380aSeries/cSeries/eSeries
