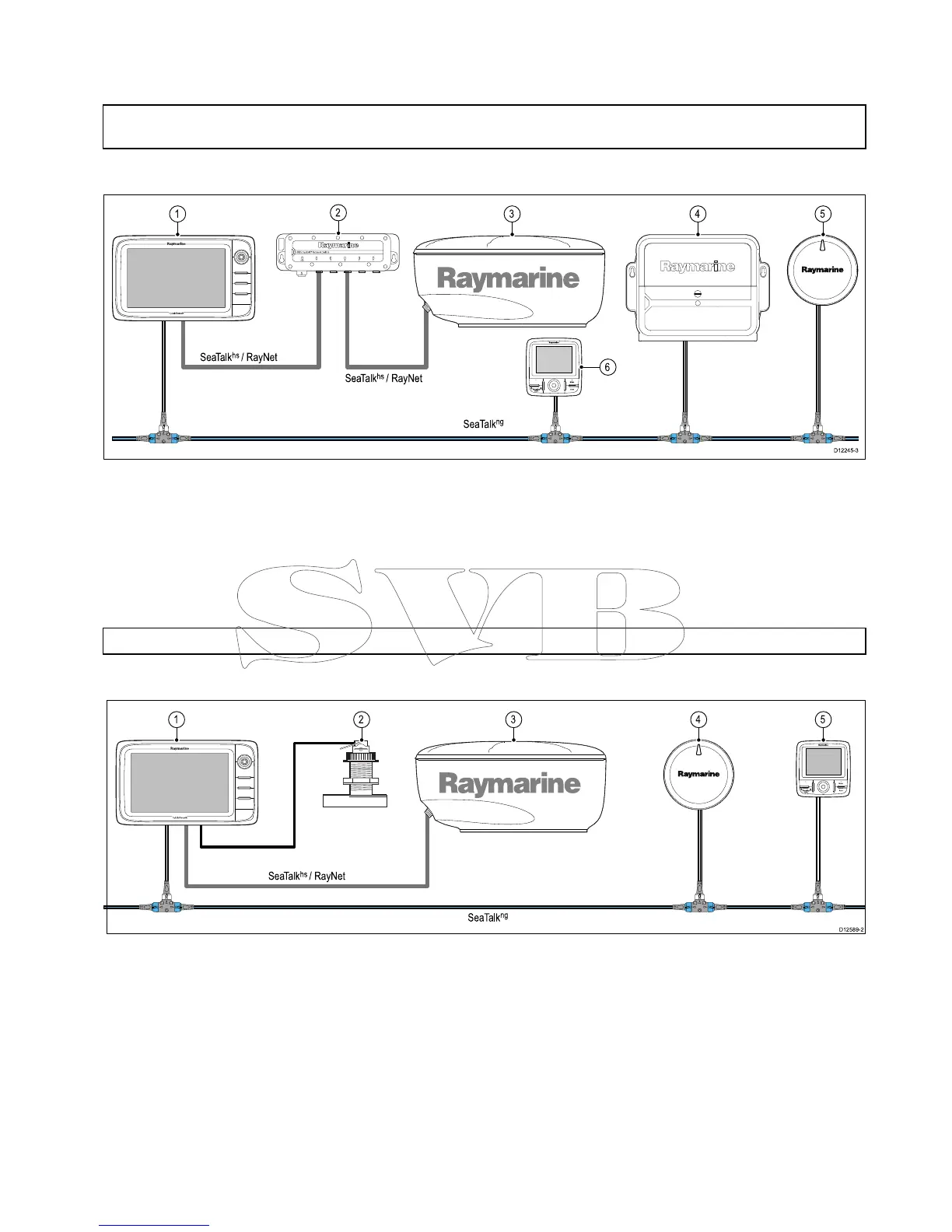

3.6Typicalsystems
Theillustrationsbelowshowexamplesofpossiblesystemcongurations,formoredetailsoncompatible
RaymarinedevicespleaserefertotheSystemintegrationsection.
Note:Intheexamplesbelowthemultifunctiondisplay(s)couldbeanyvariantofRaymarine’s3rd
generationmultifunctiondisplayse.g.aSeries,cSeries,eSeriesorgSSeries.
Example:Basicsystem
SeaTalk
ng
SeaTalk
hs
/ RayNet
SeaTalk
hs
/ RayNet
6
00
D12245-3
1
2
3 4 5
1.Multifunctiondisplay
2.Networkswitch
3.Radarscanner
4.ActuatorControlUnit(ACU)
5.Evolutionautopilot
6.SeaTalk
ng
pilotcontroller(optional)
Note:AnetworkswitchisonlyrequiredifmultipledevicesareconnectedusingSeaTalk
hs
/RayNet.
Example:Basicsystemwithsonarvariantdisplay
SeaTalk
ng
SeaTalk
hs
/ RayNet
00
D12589-2
1 2 3 4 5
1.Multifunctiondisplay
2.Sonartransducer
3.Radarscanner
4.Evolutionautopilot
5.SeaTalk
ng
pilotcontroller(optional)
Planningtheinstallation
39
