5.10
HUBCAPS - WHEELS

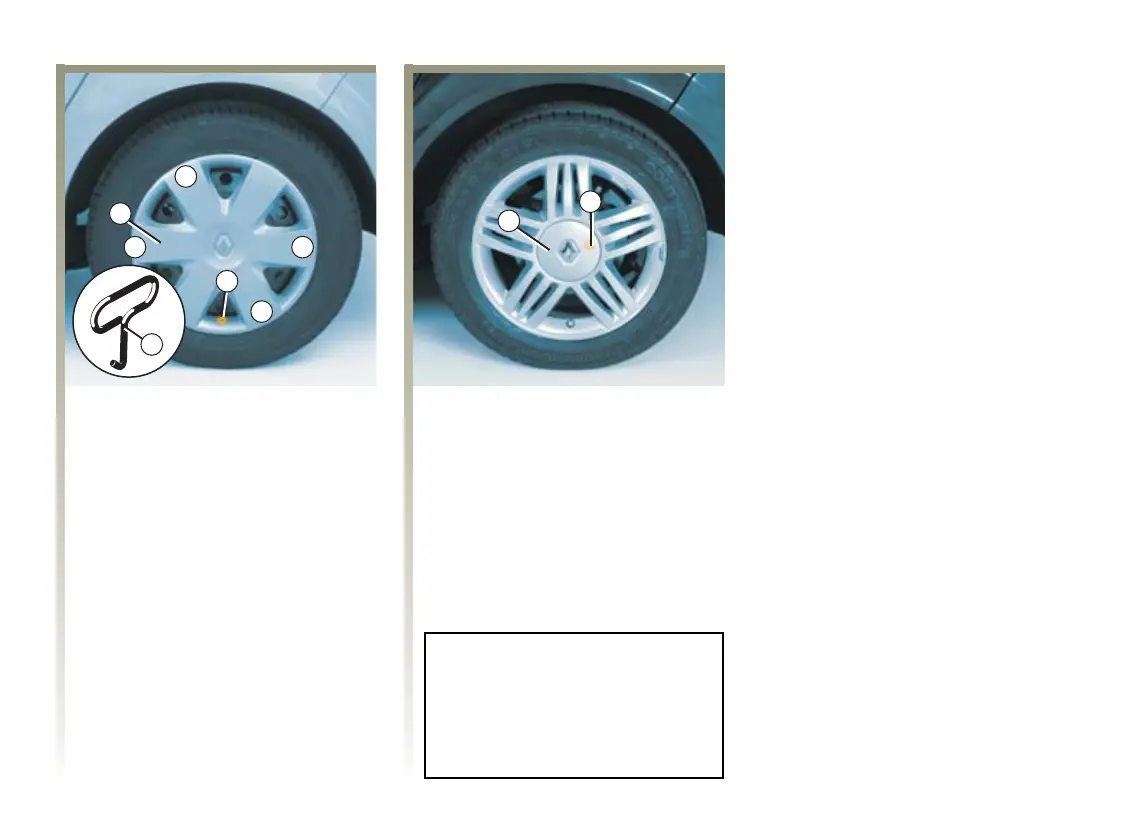

Wheel trim (example: wheel
trim 1)
Remove the wheel trim using
hubcap spanner 3 (located in the
tool kit) by engaging the hook in the
opening near the valve 2.
When refitting the wheel trim, align
it with valve 2. Push the retaining
hooks in fully, starting with side A,
followed by B and C, finishing at the
side opposite the valve D.
Central wheel hubcap
(example: hubcap 4)
Remove the wheel trim using the
hubcap spanner (located in the tool
kit) by inserting the spanner into
recess 5.
To refit it, position it in line with
recess 5 and tighten it with the
spanner.
We would advise you to note the
number engraved on the key so
that you can replace it if it is lost.
