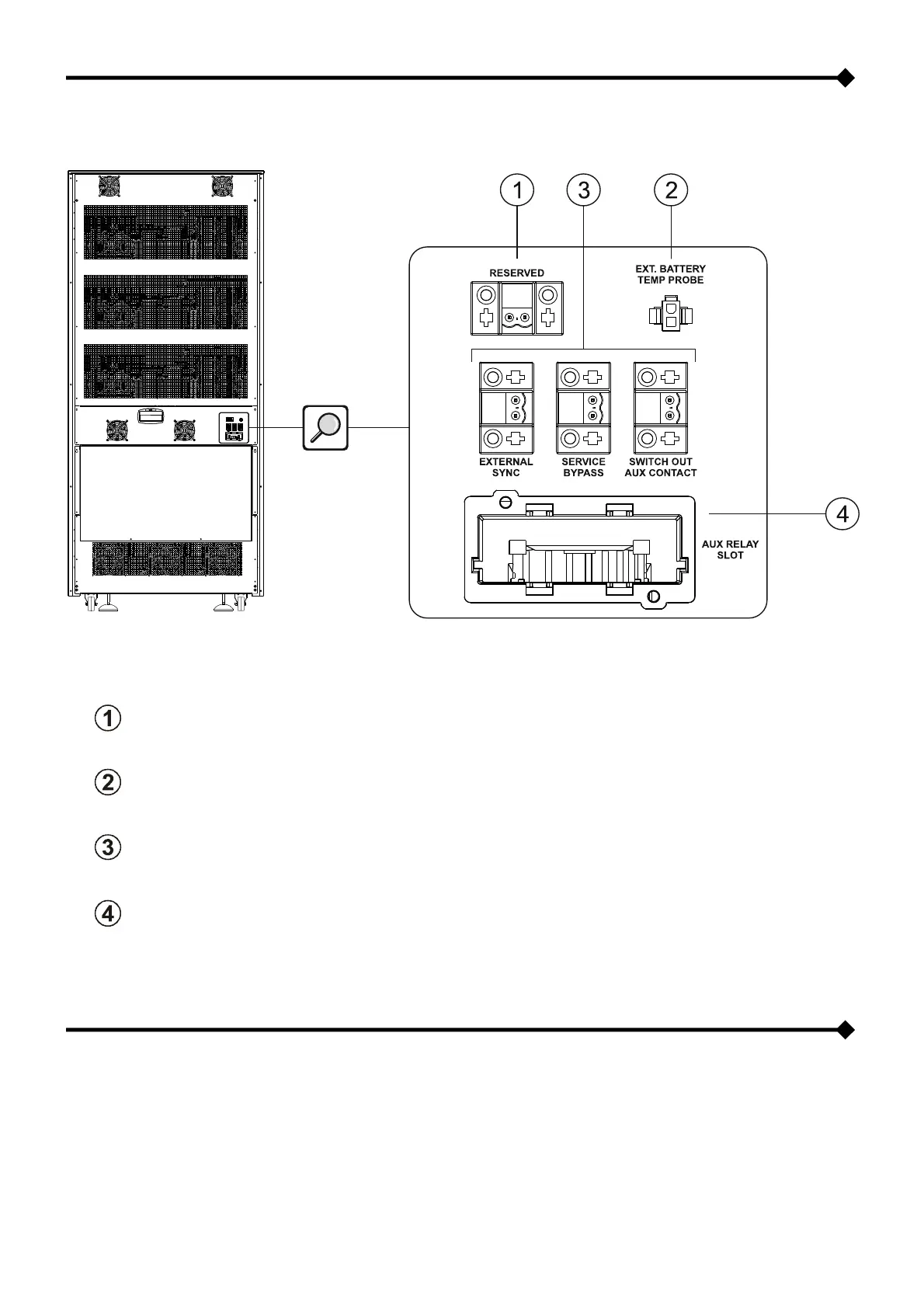

AUXILIARY CONTACT SECTION
RESERVED: Reserved signal
EXT. BATTERY TEMP PROBE: Connection for external battery temperature probe
Left to right:
 EXTERNAL SYNC: Connection for external synchronization signal
 SERVICE BYPASS: Connection for remote auxiliary maintenance bypass
 SWITCH OUT AUX CONTACT: Connection for remote auxiliary output switch
AUX RELAY SLOT: Relay slot
SEPARATE BYPASS INPUT
THIS SERIES OF UPS UNITS CAN BE CONFIGURED IN DUAL INPUT MODE, I.E. WITH THE BYPASS LINE SEPARATE
FROM THE INPUT LINE.
This feature allows for separate connections between the input line and bypass line.
The UPS output will be synchronized to the bypass line in such a way that there will not be any incorrect switching between
push-pull voltages in the event of automatic bypass intervention or manual bypass (SWMB) closing.
