PARALLEL CONNECTION
UPS's can be connected in parallel to increase the reliability of power supply to the load (redundancy) and their power delivery.
Up to 8 units can be connected in parallel. Only units of the same power can be connected together in this way.

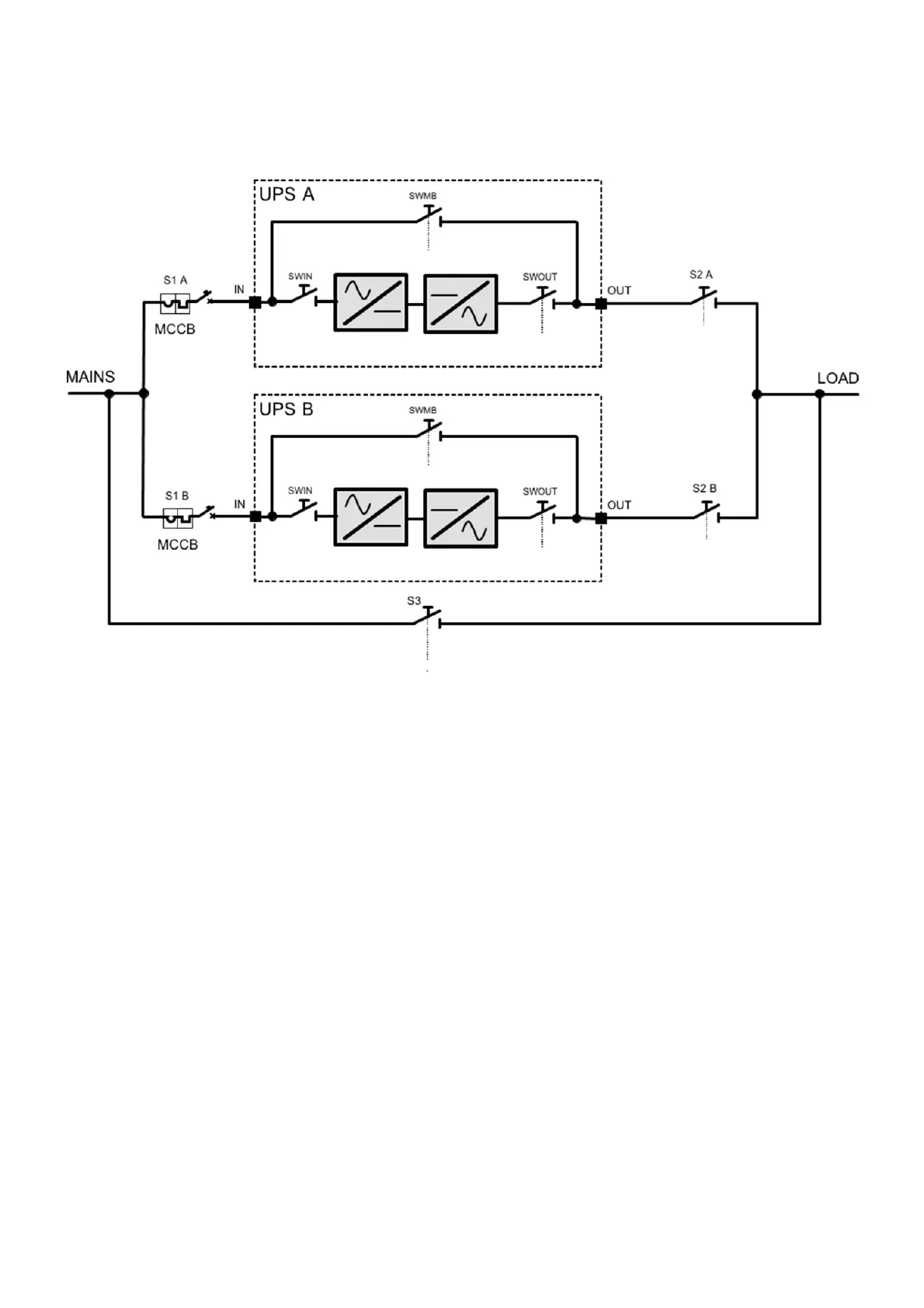

For example, the figure shows a parallel connection of two UPS's.
When UPS's are connected in parallel, the ECO (LINE INTERACTIVE), SMART (SMART ACTIVE) and STBYOFF (STAND-BY
OFF) modes are not available.
The optional parallel connection kit is required to connect multiple UPS's in this way.
For further information, see the parallel connection manual.
TOP CABLE ENTRY
This is an optional accessory composed of a special cabinet for use with the UPS. It makes it possible to route the cables in at
the top.
EYEBOLTS
This is a kit of brackets and fasteners for lifting the UPS from above and positioning it.
