Wait for a few seconds after closing SWIN. Check that the display switches
on and that the UPS is set to "STAND-BY" mode.
Follow the instructions below if a message indicating an erred phase cycle direction appears on the display:
check that the error code corresponds to the input or the bypass
open all input and output switches
wait for the display to switch off
open the external UPS battery line switches/fuses
open all protections upstream to the UPS
remove the IN/OUT access panel on the back of the UPS
correct the positions of the cables relative to the marked terminal board so that they follow the direction of rotation
of the phases
close the IN/OUT panel
repeat the preliminary operations contained on the previous page
Refer to “Graphic display” and “Display menu” paragraphs for control panel management
Setting the nominal battery capacity
CAUTION: you must configure the UPS to set the correct total nominal battery capacity. This operation must be performed
by means of the configuration software reserved for Service personnel only.

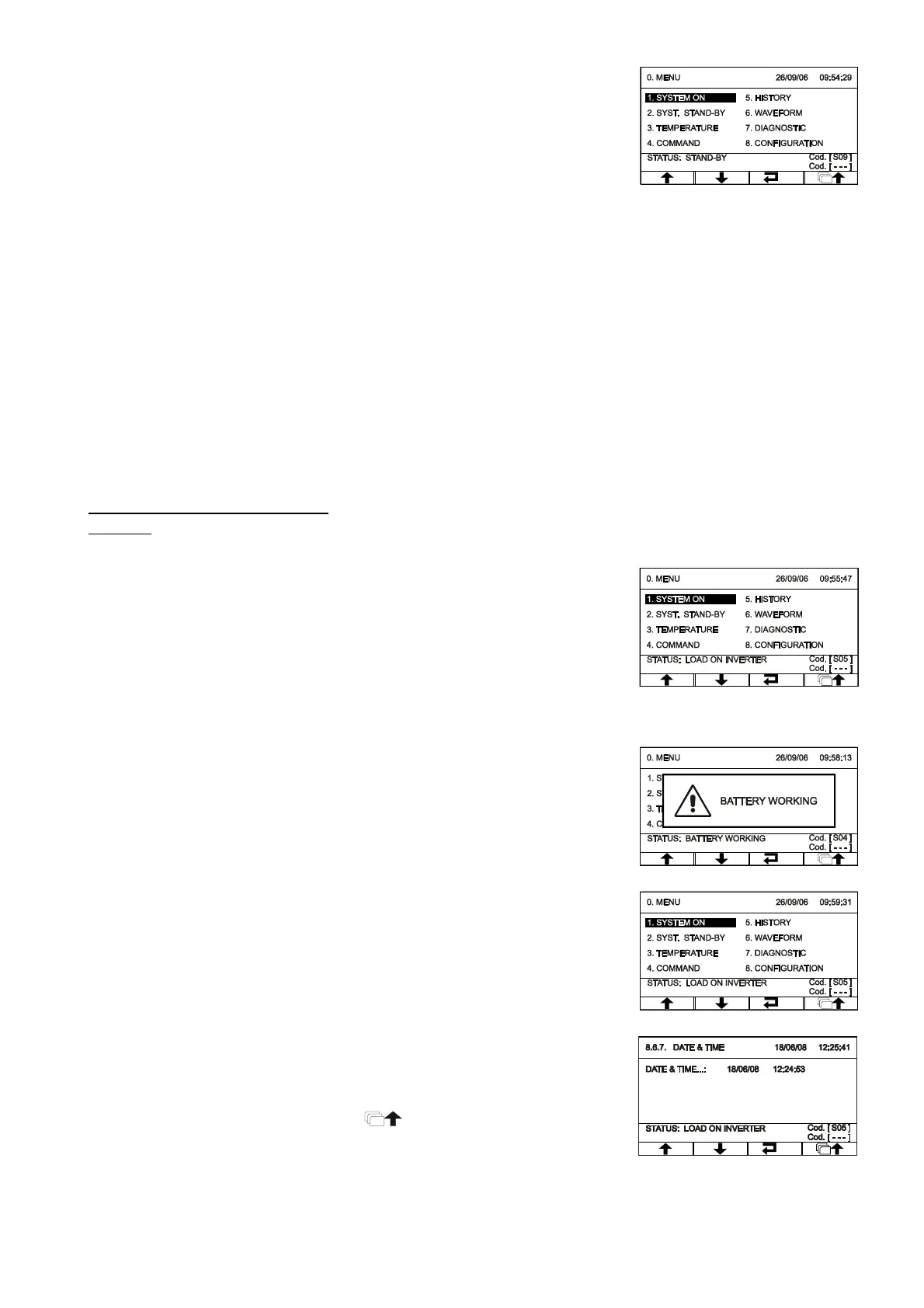

From the main menu, press to enter into the start menu. When asked to
confirm, select “YES”, press to confirm and wait a few seconds. Verify
that the UPS is set to status with the inverter-powered load.
Closing the output switch SWOUT
Open the input switch (SWIN) and wait a few seconds. Verify that the UPS
is set to battery operation and that the load is still being properly powered.
You should hear a beep every 7 sec.
Close the input switch (SWIN) and wait a few seconds. Verify that the UPS
is no longer in battery operation and that the load is being properly powered
from the inverter.
To set the Date and Hour, access menu 8.6.7 (see "Display menu") from
the main menu. Use the arrow keys (↑↓) to set the desired value and press
the confirm key ( ) to move to the next field. To save the new settings,
return to the previous menu by pressing the key.
