HVLS Fan Installation/Service/Owner's Manual Rite‑Hite
®
Step 4 – Safety Cables (INCLUDED WITH KIT)
WARNING / AVERTISSEMENT
Always use safety cables. They protect against a
fan fall in the event of a bolted joint loosening.
Toujours utiliser des câbles de sécurité. Ils
protègent contre la chute d’un ventilateur dans le
cas d’un relâchement de l’assemblage boulonné.
A
B
C

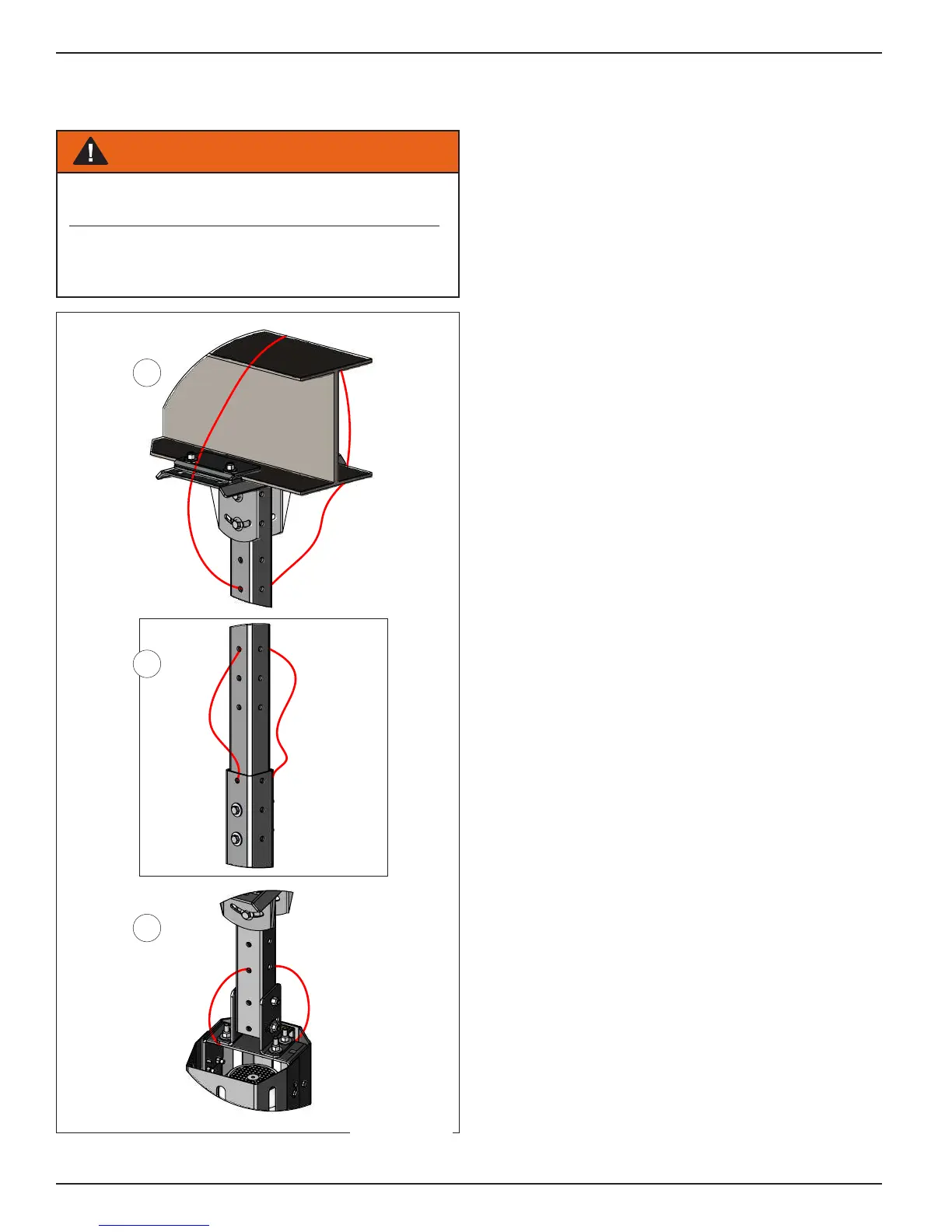

1. Wrap a safety cable around the bolted brackets at the
ceiling and through the top of the extension tube (A).
2. If installing with adjustable‑length extension tubes,
use a third safety cable to secure the center bolted
joint of the extension tubes (B).
3. Wrap a second safety cable through the bottom
of the extension tube and through the top of the
motor housing (C).
4. Secure the safety cables with the provided clamps.
Figure 7
