INSTALLATION
Step 2 – Mounting Continued
Laminated Beam Kit (OPTIONAL)
I-BEAM MOUNTING
(TYPICAL)
CEILING TRUSS MOUNTING
(OPTIONAL)

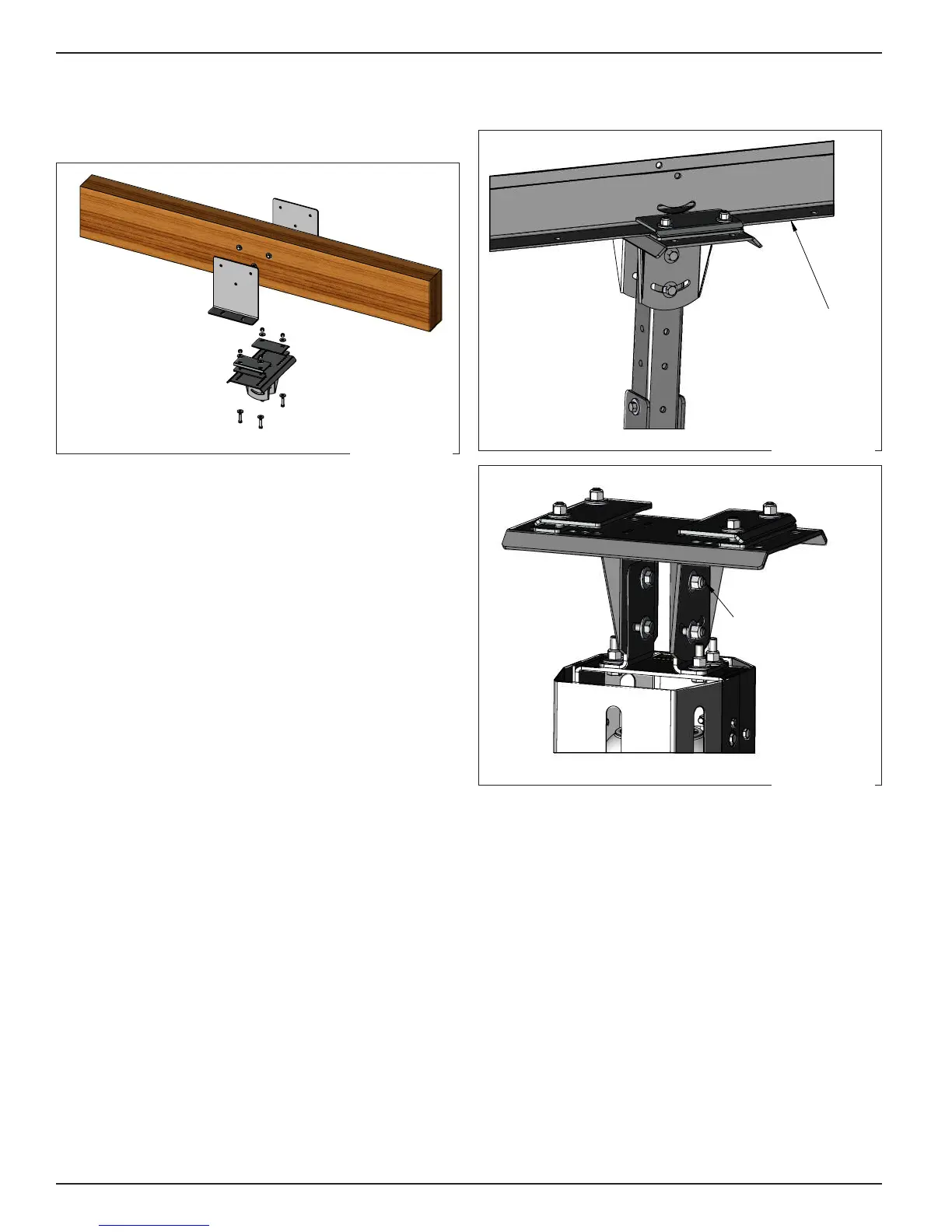

LAMINATED BEAM KIT
(OPTIONAL)
1. Through bolt the laminated beam brackets with 1
bracket on each side of the laminated (or concrete)
beam (Figure 4).
2. Attach the standard ceiling mounting bracket to this
bracket in the normal manner.
Alternative Methods
(4) 1/2X1-1/2 in. Grade 8
bolts & nuts (not provided).
TRUSS KIT SOLD SEPARATELY
Truss Kit
sold separately
(4) 1/2X1-1/2 in. Grade 8
bolts & nuts (not provided).
TRUSS KIT SOLD SEPARATELY
(4) 1/2in x 1‑1/2in
Grade 8 bolts and nuts
(supplied by others)
Figure 4
Figure 5
Figure 6
