RITE-HITE Revolution HVLS Fan User Manual

20 Publication: AMEN00064 2019‑03‑07
Revolution
®
HVLS Fan • Rogue
®
HVLS Fan Installation/Service/Owner's Manual Rite‑Hite
®

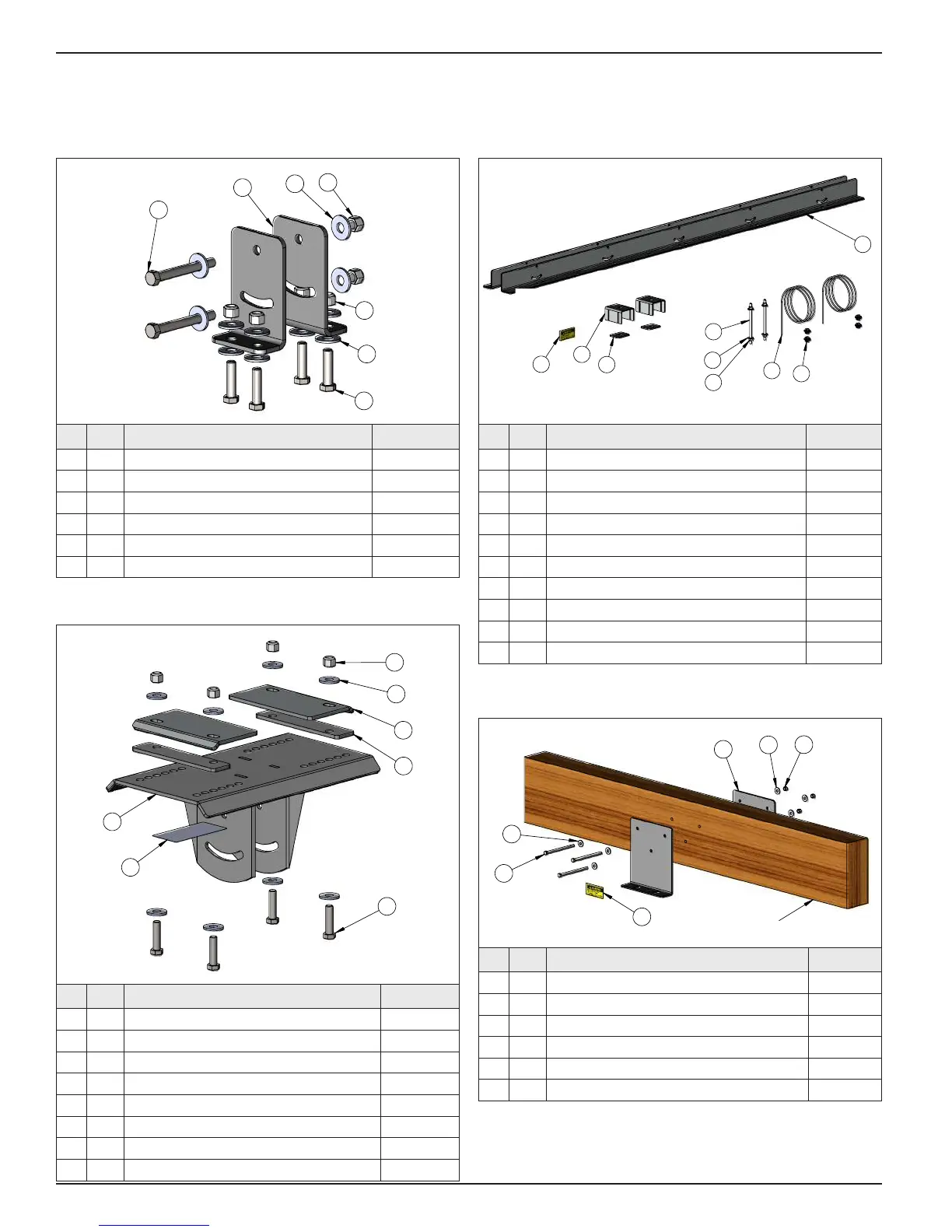

PARTS
Mounting
Swivel Bracket
4
3
2
1
4
3
5
SWVL BRKT
14501306 BRKT,ASSY,SWVL,HOUSING,FAN,GY
ITEM QTY DESCRIPTION
1 2 SCR,HHMS,1/2-13X4-1/2,GR8,ZNC
2 2 BRKT,MNT,HOUSING,SWVL,FAN,GY
3 12 WSHR,FLAT,1/2X1-3/8X7/64,ZNC
4 6 NUT,HEX,NYL LOCK,1/2-13,GR8,Z
5 4 SCR,HHMS,1/2-13X2,GRD8,ZNC
# QTY DESCRIPTION
PART #
– 1 BRKT,ASSY,SWVL,HOUSING,FAN,GY 14501306
1 2 SCR,HHMS,1/2‑13X4‑1/2,GR8,ZNC –
2 2 BRKT,MNT,HOUSING,SWVL,FAN,GY –
3 12 WSHR,FLAT,1/2X1‑3/8X7/64,ZNC –
4 6 NUT,HEX,NYL LOCK,1/2‑13,GR8,Z –
5 4 SCR,HHMS,1/2‑13X2,GRD8,ZNC –
I‑Beam Kit
17
18
19
20
16
15
21
CEILING BRKT
14501233 BRKT,ASSY,SWVL,CLNG,FAN,GY
ITEM QTY DESCRIPTION
15 1 BRKT,WLDMNT,SWVL,FAN,GY
16 1 LABEL,DECAL,INSTL,SUPPORT,FAN
17 4 NUT,HEX,NYL LOCK,1/2-13,GR8,Z
18 8 WSHR,FLAT,1/2X1-3/8X7/64,ZNC
19 2 PLATE,CLAMP,MNT,FAN,GY
20 2 PLATE,SHIM,MNT,FAN,GY
21 4 SCR,HHMS,1/2-13X2,GRD8,ZNC
# QTY DESCRIPTION
PART #
– 1 BRKT,ASSY,SWVL,CLNG,FAN,GY 14501233
15 1 BRKT,WLDMNT,SWVL,FAN,GY –
16 1 LABEL,DECAL,INSTL,SUPPORT,FAN –
17 4 NUT,HEX,NYL LOCK,1/2‑13,GR8,Z –
18 8 WSHR,FLAT,1/2X1‑3/8X7/64,ZNC –
19 2 PLATE,CLAMP,MNT,FAN,GY –
20 2 PLATE,SHIM,MNT,FAN,GY –
21 4 SCR,HHMS,1/2‑13X2,GRD8,ZNC –
Truss Kit
6
7
8
9
11
12
10
13
14
TRUSS KIT
55290016 MOUNT,ASSY,TRUSS,FAN,GY
ITEM QTY DESCRIPTION
6 2 BRKT,MNT,TRUSS,FAN,GY
7 1 LABEL,DECAL,INSTL,SUPPORT,FAN
8 2 BRKT,CLAMP,TRUSS,FAN,GY
9 2 PLATE,CLAMP,TRUSS,FAN,GY
10 2 ROD,THRD,1/2-13X10",FLTD,STNLS
11 4 WSHR,FLAT,1/2X1-3/8X7/64,ZNC
12 4 NUT,HEX,NYL LOCK,1/2-13,GR8,Z
13 2 CABLE,AIRCRAFT,GLV,1/4,84"
14 4 CLAMP,CABLE,ZINC,1/4,SNGL SAD
6
7
8
9
11
12
10
13
14
TRUSS KIT
55290016 MOUNT,ASSY,TRUSS,FAN,GY
ITEM QTY DESCRIPTION
6 2 BRKT,MNT,TRUSS,FAN,GY
7 1 LABEL,DECAL,INSTL,SUPPORT,FAN
8 2 BRKT,CLAMP,TRUSS,FAN,GY
9 2 PLATE,CLAMP,TRUSS,FAN,GY
10 2 ROD,THRD,1/2-13X10",FLTD,STNLS
11 4 WSHR,FLAT,1/2X1-3/8X7/64,ZNC
12 4 NUT,HEX,NYL LOCK,1/2-13,GR8,Z
13 2 CABLE,AIRCRAFT,GLV,1/4,84"
14 4 CLAMP,CABLE,ZINC,1/4,SNGL SAD
6
7
8
9
11
12
10
13
14
TRUSS KIT
55290016 MOUNT,ASSY,TRUSS,FAN,GY
ITEM QTY DESCRIPTION
6 2 BRKT,MNT,TRUSS,FAN,GY
7 1 LABEL,DECAL,INSTL,SUPPORT,FAN
8 2 BRKT,CLAMP,TRUSS,FAN,GY
9 2 PLATE,CLAMP,TRUSS,FAN,GY
10 2 ROD,THRD,1/2-13X10",FLTD,STNLS
11 4 WSHR,FLAT,1/2X1-3/8X7/64,ZNC
12 4 NUT,HEX,NYL LOCK,1/2-13,GR8,Z
13 2 CABLE,AIRCRAFT,GLV,1/4,84"
14 4 CLAMP,CABLE,ZINC,1/4,SNGL SAD
# QTY DESCRIPTION PART #
– – MOUNT,ASSY,TRUSS,FAN,GY 55290016
6 2 BRKT,MNT,TRUSS,FAN,GY –
7 1 LABEL,DECAL,INSTL,SUPPORT,FAN –
8 2 BRKT,CLAMP,TRUSS,FAN,GY –
9 2 PLATE,CLAMP,TRUSS,FAN,GY –
10 2 ROD,THRD,1/2‑13X10",FLTD,STNLS –
11 4 WSHR,FLAT,1/2X1‑3/8X7/64,ZNC –
12 4 NUT,HEX,NYL LOCK,1/2‑13,GR8,Z –
13 2 CABLE,AIRCRAFT,GLV,1/4,84" –
14 4 CLAMP,CABLE,ZINC,1/4,SNGL SAD –
Laminated Beam Kit
25
23
24
BEAM
23
22
26
BEAM KIT
14501239 BRKT,ASSY,MNT,LAM BEAM,FAN,GY
ITEM QTY DESCRIPTION
22 3 SCR,HHMS,1/2-13X8,GRD8,ZNC
23 6 WSHR,FLAT,1/2X1-3/8X7/64,ZNC
24 2 BRKT,MNT,LMNTD BEAM,FAN,GY
25 3 NUT,HEX,NYL LOCK,1/2-13,GR8,Z
26 1 LABEL,DECAL,INSTL,SUPPORT,FAN
# QTY DESCRIPTION PART #
– 1 BRKT,ASSY,MNT,LAM BEAM,FAN,GY 14501239
22 3 SCR,HHMS,1/2‑13X8,GRD8,ZNC –
23 6 WSHR,FLAT,1/2X1‑3/8X7/64,ZNC –
24 2 BRKT,MNT,LMNTD BEAM,FAN,GY –
25 3 NUT,HEX,NYL LOCK,1/2‑13,GR8,Z –
26 1 LABEL,DECAL,INSTL,SUPPORT,FAN –
