RITE-HITE Revolution HVLS Fan User Manual

Publication: AMEN00064 2019‑03‑07 5
Rite‑Hite
®
Installation/Service/Owner’s Manual Revolution
®
HVLS Fan • Rogue
®
HVLS Fan
INSTALLATION

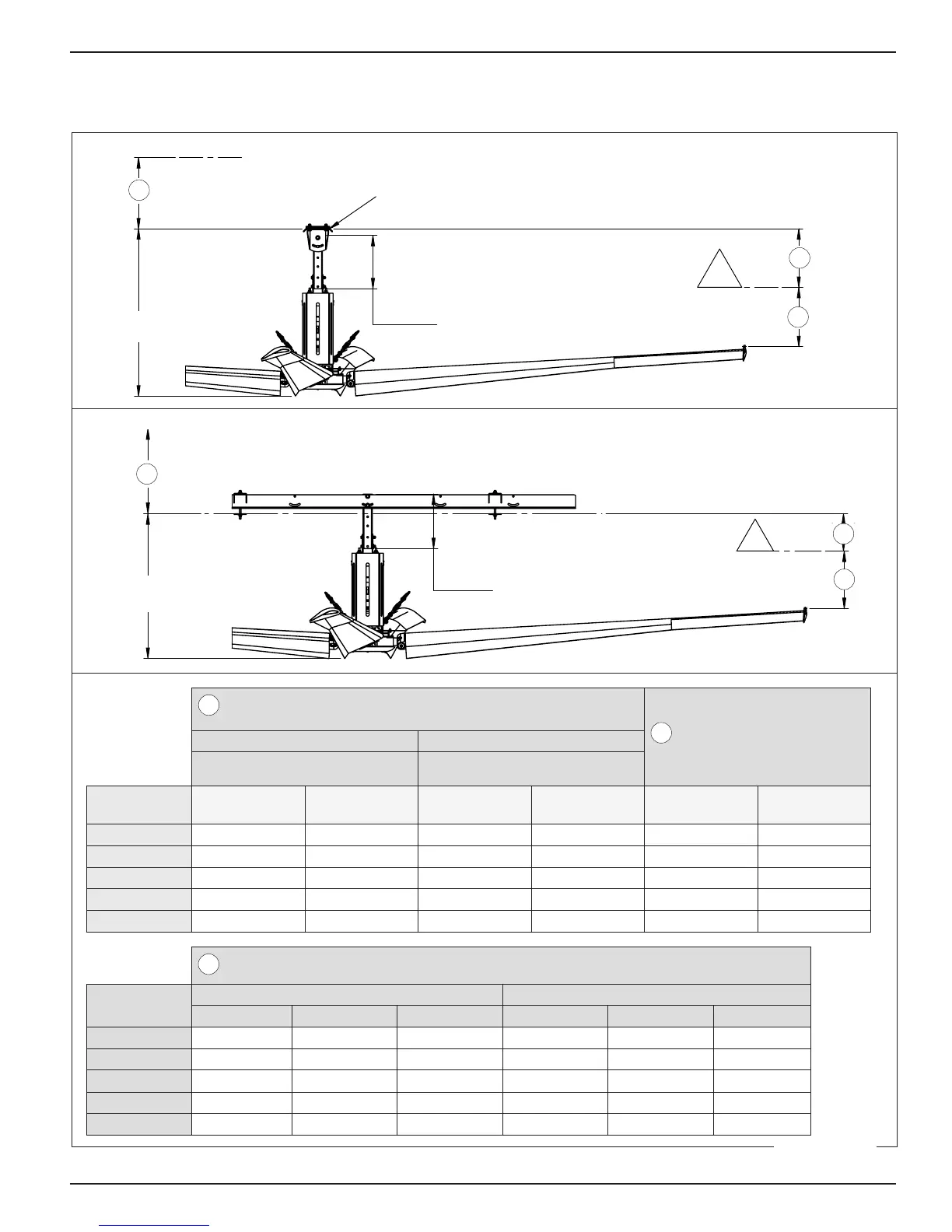

Fan Clearance, Air Intake
Beam Kit Mounted
Fan Drop
Height
18 "
[460 mm]
Extra Air Intake
Height
B
A
Shown: Beam mount
Roof Surface
Mounting Surface
Bottom of Beam Mounting Surface
!
18.00"
[460 mm]
Fan Drop
Height
Extra Air Intake
Height
B
A
Mounting Surface
Shown: Truss mount
!
Roof Surface
Roof surface
Mounting surface
Fan drop
height
18in
[460mm]
Bottom of beam mounting surface
C
A
B
Truss Kit Mounted
Fan Drop
Height
18 "
[460 mm]
Extra Air Intake
Height
B
A
Shown: Beam mount
Roof Surface
Mounting Surface
Bottom of Beam Mounting Surface
!
18.00"
[460 mm]
Fan Drop
Height
Extra Air Intake
Height
B
A
Mounting Surface
Shown: Truss mount
!
Roof Surface
Mounting Surface
Fan drop
height
18in
[460mm]
C
Roof Surface
A
B
A
= Mounting Surface to Obstruction Maximum
with 18in [460mm] Drop Tube
B
= Blade Tip at Rest to Obstruction
Minimum
Beam Kit Truss Kit
Fan Drop Height = 56.5in [1440mm] Fan Drop Height = 48.00in
[1220mm]
Fan Ø Standard; Low Headroom Standard Low Headroom Standard Low Headroom
8ft [2440mm] 34in [870mm] 36in [920mm] 25in [640mm] 28in [40mm] 12in [310mm] 12in [310mm]
12ft [3660mm] 33in [840mm] 36in [920mm] 24in [610mm] 28in [37mm] 12in [310mm] 12in [310mm]
16ft [4880mm] 30in [770mm] 35in [890mm] 21in [540mm] 26in [41mm] 14in [360mm] 14in [360mm]
20ft [6100mm] 28in [720mm] 34in [870mm] 19in [490mm] 25in [10mm] 15in [390mm] 15in [390mm]
24ft [7320mm] 25in [640mm] 32in [820mm] 16in [410mm] 24in [39mm] 16in [410mm] 16in [410mm]
C
= Extra Air Intake – Extra Height Above the Mounting Surface
Fan Ø
Beam Kit – Drop Tube Truss Kit – Drop Tube
No Drop Tube 18in [457mm] 30in [762mm] No Drop Tube 18in [457mm] 30in [762mm]
8ft [2440mm] None None None 2in [60mm] None None
12ft [3660mm] 5in [130mm] None None 16in [410mm] None None
16ft [4880mm] 20in [510mm] 7in [180mm] None 30in [770mm] 14in [360mm] 3in [80mm]
20ft [6100mm] 34in [870mm] 21in [540mm] 9in [230mm] 45in [1150mm] 27in [690mm] 17in [440mm]
24ft [7320mm] 49in [1250mm] 36in [920mm] 24in [610mm] 59in [1500mm] 41in [1050mm] 32in [820mm]
NOTE: "Figure 1" is shown with standard headroom.
Figure 1
