RITE-HITE Revolution HVLS Fan User Manual

Publication: AMEN00064 2019‑03‑07 15
Rite‑Hite
®
Installation/Service/Owner’s Manual Revolution
®
HVLS Fan • Rogue
®
HVLS Fan
ELECTRICAL

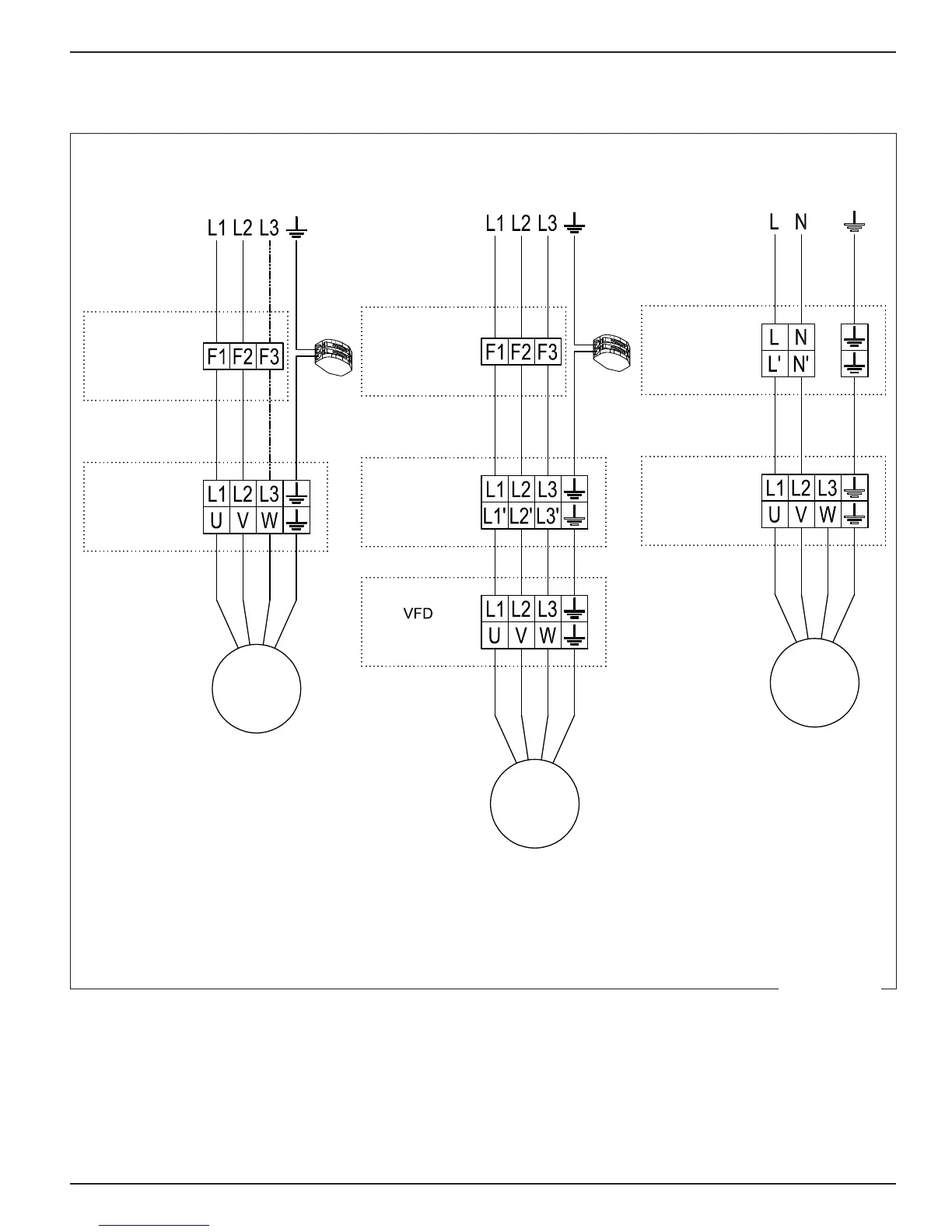

Control Box Wiring
Fuse
Block
Fuse
Block
EMC
Filter
EMC
Filter
Motor
Motor
Motor
• All factory wiring 14 AWG AVLV2/8
• Power wiring to be black
• Ground conductors to be green/yellow
Motor conductors eld
terminated to VFD
terminals using M4 fork
connectors (provided),
torque to 1.5Nm.
NOTE: L3 wire and F3 fuse omitted for
230V single phase input option.
Motor conductors
eld terminated to
VFD terminals using
M4 fork connectors
(provided), torque to
1.5Nm.
Motor conductors
eld terminated to
VFD terminals using
M4 fork connectors
(provided), torque to
1.5Nm.
Standard 3ɸ / 1ɸ
Incoming Power Supply
EMC Option 3ɸ
Incoming Power Supply
EMC Option 1ɸ
Incoming Power Supply
VFD
VFD
Figure 13
