INSTALLATION
Step 9 – Control Box
!
CAUTION / ATTENTION
Mount control boxes outside of the fan diameter.
A control box mounted above a fan or inside the
fan diameter cannot be locked out safely.
Monter les boîtes de commande en dehors du
diamètre du ventilateur. Une boîte de commande
montée au‑dessus ou dans le champ du
ventilateur ne peut être verrouillée en toute
sécurité.
Mount the 17.6in x 16in x 8.4in [447mm x 406mm x 212mm]
control box:
• Securely to a wall or building column with appropriate
anchors (supplied by others).
• Within 160ft [50m] from the fan it is controlling. The fan
must be visible from the control box mounting location.
Step 10 – Label Plate
1. Attach the label plate mounting brackets to the bottom
of the fan hub:
a. Insert the 4 1/4‑20 x 1.0in bolts with lock washers
through the end with the round hole.
NOTE: Do not tighten completely until the label
plate is attached.
b. Align the bracket so the slotted hole faces outward,
toward the fan blade.
c. Repeat this process for the remaining 3 brackets.
2. Attach the label plate to the label plate brackets:
a. Insert the bolt up through the label plate and
through the label plate bracket.
NOTE: You may need to puncture a small hole
through the label with a sharp object to insert the bolt.
b. Install a 1/4‑20in Nylock nut on the bolt to secure it
in position.
c. Repeat this process to attach the label plate to the
remaining label plate brackets.
3. Tighten all the bolts holding the brackets and label
plate securely.

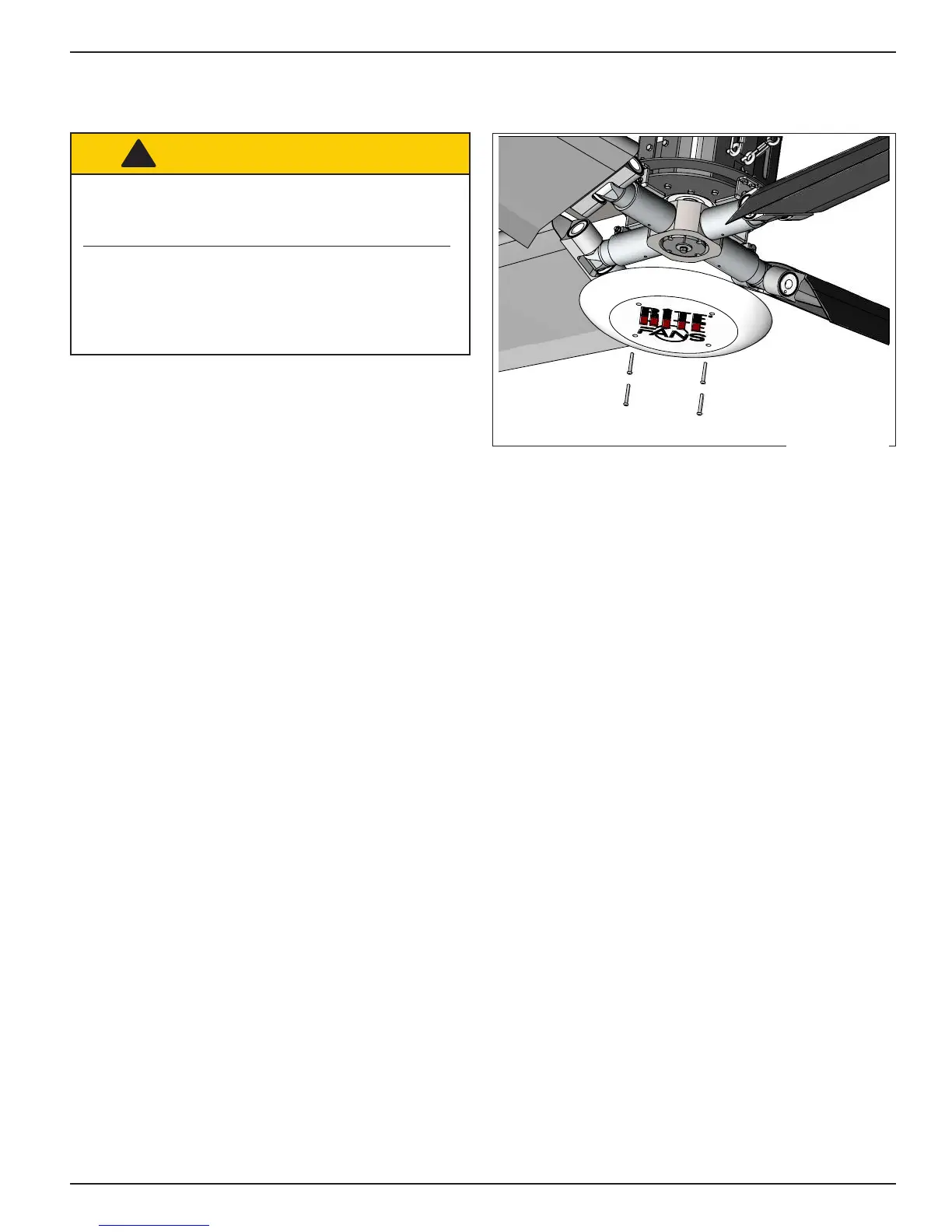

Step 11 – Motor Cover
Attach the motor cover over the motor bracket:
1. Insert 4 1/4‑20 x 1in bolts with locknut through the
motor cover and motor bracket.
2. Secure bolts with a Nylock nut on the inside.
3. Tighten all 4 bolts securely.
Fan Guarding
After installation, guard the fan when there is potential for
a person or object to contact moving fan blades.
Guarding (supplied by others) can be a:
• Structure near the edge of the blades to deter fork
trucks, objects or people from entering a danger area.
• Cage around the fan blades to protect moving fan
blades.
NOTE: Always mount cage(s) from the ceiling or
columns and independent of the fan.
Figure 11
