Rockwell Automation Allen-Bradley Logix 5000 User Manual

Program a Function Block Diagram
Chapter 1
Rockwell Automation Publication 1756-PM009G-EN-P - February 2018 27

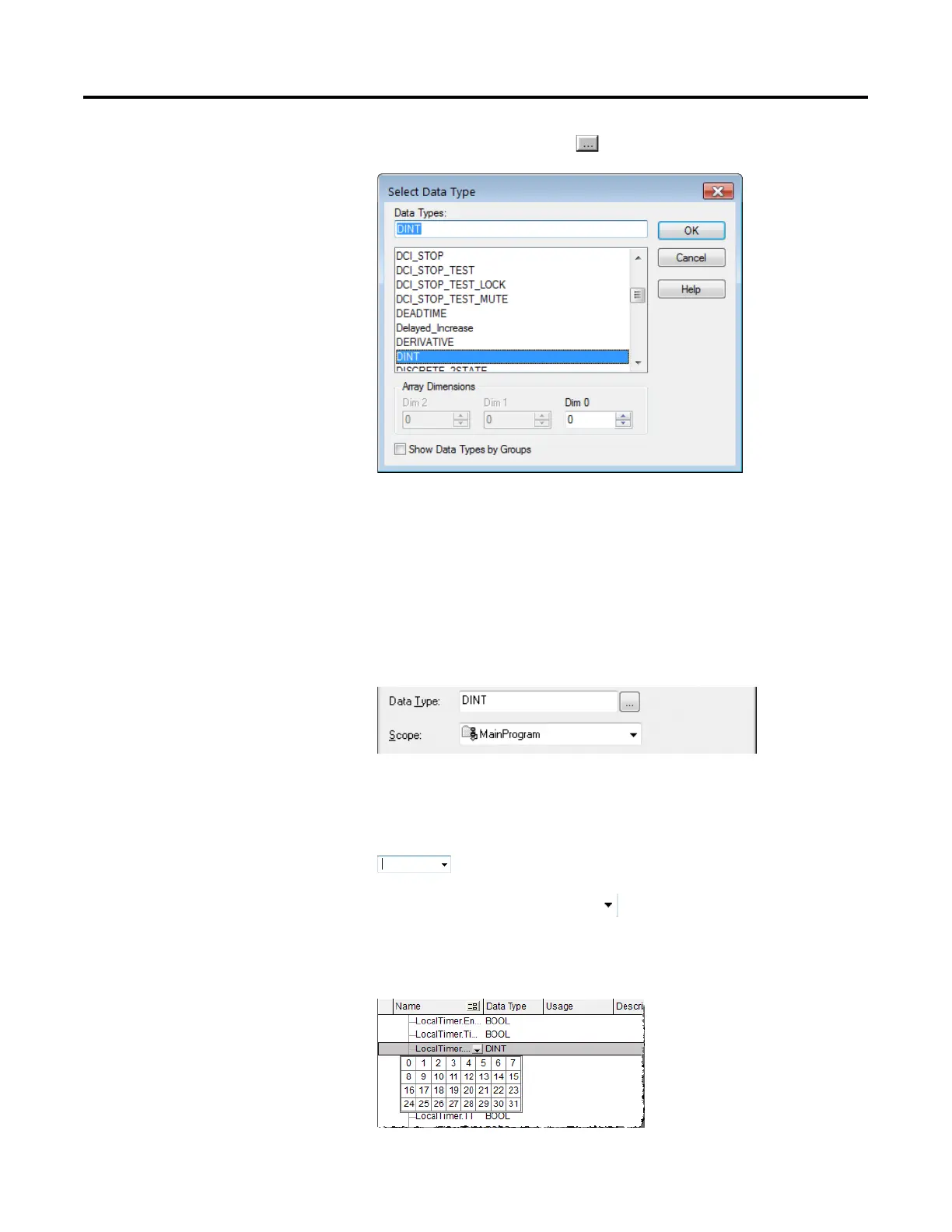

6. In the Data Type box, click .
7. On the Select Data Type dialog box, click the data type for the tag.
8. If the tag is an array, in the Dim 0 box, type or select the number of
elements in each dimension.
9. Click OK.
10. On the New Parameter or Tag dialog box, in the Scope list, click the
scope for the tag.
11. Click Create.
1. Double-click the operand area.
2. In the box, click the down arrow to select the tag.
3. On the Tag Browser, click the tag, or select the bit by clicking the
down arrow to the right of the tag and clicking the bit.
Assign an existing tag
