Roland E-A7 User Manual

9

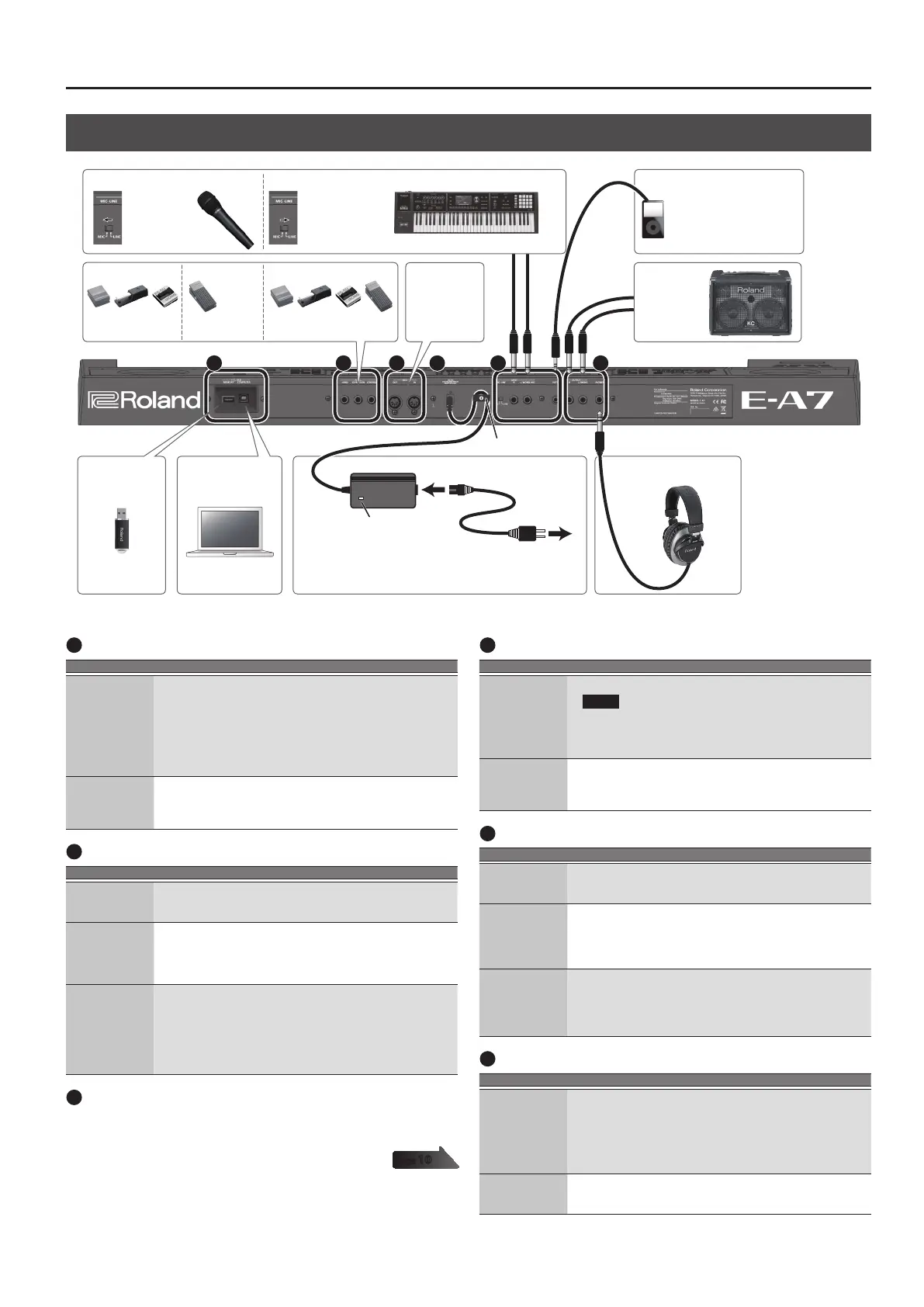

Panel Descriptions
Rear Panel
A B C D E F
* To prevent malfunction and equipment failure, always turn down the volume, and turn o all the units before making any connections.
Headphones
* Place the AC adaptor so the side with the indicator (see illustration)
faces upwards and the side with textual information faces downwards.
The indicator will light when you plug the AC adaptor into an AC
outlet.
AC adaptor
Indicator
Power Cord
AC Outlet
Connect MIDI
equipment
(p. 10).
Use a stereo mini-plug to
connect an audio player
or similar device.
Connect an
amplied
speaker.
Cord hook
ComputerUSB ash drive
Option: EV-5
EXPRESSION
Option: DP series,
BOSS FS-5U, EV-5
CONTROL
Option: DP series,
BOSS FS-5U
HOLD
If connecting a microphone
Set the MIC-
LINE select
switch to MIC.
If connecting an audio device, synthesizer, or similar device
Set the MIC-LINE
select switch to
LINE.
A
USB port
Jack Explanation
USB MEMORY
port
Connect a USB ash drive (separately sold) for use as external
storage.
* Carefully insert the USB ash drives all the way in—until it is rmly in
place.
* Use a USB ash drive sold by Roland. We cannot guarantee operation if
any other USB ash drive is used.
* We do not recommend using a USB hub, regardless of whether it is an
active or a passive hub. Connect only one USB ash drive to this port.
USB COMPUTER
port
If you use a commercially available USB cable to connect the
E-A7’s USB COMPUTER port to a USB port on your computer, you’ll
be able to produce and edit music using the E-A7 in conjunction
with MIDI-enabled software.
B
Foot Pedal jack
Jack Explanation
Pedal HOLD jack
If a separately sold pedal switch (Roland DP series) is connected to
this jack, you can use it to sustain the sound of the keyboard part.
This function is called “sustain” or “damper.”
Pedal
EXPRESSION jack
Connect a separately sold expression pedal (Roland EV-5) to this
jack.
* Use only the specied expression pedal (EV-5; sold separately). By
connecting any other expression pedals, you risk causing malfunction
and/or damage to the unit.
Pedal CONTROL
jack
Connect a separately sold pedal switch (Roland DP series) or
separately sold expression pedal (Roland EV-5) to this jack.
You can assign a function suitable for the pedal that’s connected.
&
“Reference Manual” (PDF)
* Use only the specied expression pedal (EV-5; sold separately). By
connecting any other expression pedals, you risk causing malfunction
and/or damage to the unit.
C
MIDI port
These connectors can be connected to other MIDI devices to receive and
transmit MIDI messages.
D
DC IN jack
Jack Explanation
DC IN jack
Connect the included AC adaptor here.
NOTE
5 Use only the AC adaptor that is included with the product.
5 If you won’t be using the E-A7 for an extended period of time,
disconnect the AC adaptor from the AC outlet.
Cord hook
To prevent the inadvertent disruption of power to your unit
(should the plug be pulled out accidentally), and to avoid
applying undue stress to the jack, anchor the power cord using
the cord hook, as shown in the illustration.
E
INPUT jack
Jack Explanation
MIC-LINE select
switch
Set this switch to the appropriate position depending on whether
you connect a microphone (MIC) or a line-level device such as an
instrument (LINE).
INPUT
L/MONO, MIC,
R jacks
Connect a microphone, or the outputs of your audio equipment,
synthesizer, or similar device.
* If you connect a microphone, connect it to the L/MONO, MIC jack.
Condenser microphones are not supported.
* If you want to input in monaural, connect to the L/MONO, MIC jack.
EXT IN jack
This is an audio input jack. If you use a stereo mini-plug to connect
your audio player or similar device, the sound of the connected
device is heard from the E-A7.
* Eects are not applied to the sound that is input from the EXT IN jack.
* Adjust the volume on the connected device (e.g., audio player).
F
Output jack
Jack Explanation
OUTPUT L/
MONO, R jacks
Connect speakers.
5 If you want to output in monaural, connect your system to the
L/MONO jack.
5 If you’ve connected the output jacks to external speakers or a
PA system, we recommend that you leave the [Output Mode]
button o (button unlit).
PHONES jack
Connect separately sold headphones (Roland RH series).
If a cable is connected to this jack, the internal speakers are
automatically muted.
page
10

Roland E-A7 Specifications

General

Equalizer	Yes
Product type	Digital synthesizer
Product color	Black
Sound effects	Chorus, Equalization, Reverberation
RMS rated power	24 W
Number of speakers	2
Keyboard number of keys	61
Maximum polyphony (notes)	128
Power source type	DC
Display type	LCD

Weight and Dimensions

Depth	318 mm
Width	1045 mm
Height	136 mm
Weight	7900 g
