2-1 Installing
Deciding On an Installation Site
Install in a stable location offering good operating conditions. An unsuitable location can cause accident, faulty
operation, or breakdown.
WARNING
Install in a level and stable location.
Otherwise the machine may tip over and cause injury.
Unsuitable Installation Sites
➢Locations subject to shaking or vibration
➢Locations where the floor is tilted, not level, or unstable
➢Locations exposed to direct sunlight or near air-conditioning or heating equipment
➢Locations within 1 m (39-3/8 in.) of strong illumination
➢Dusty locations
➢Locations exposed to considerable electrical or magnetic noise, or other forms of electromagnetic energy
➢Locations with poor heat radiation
Installation Space

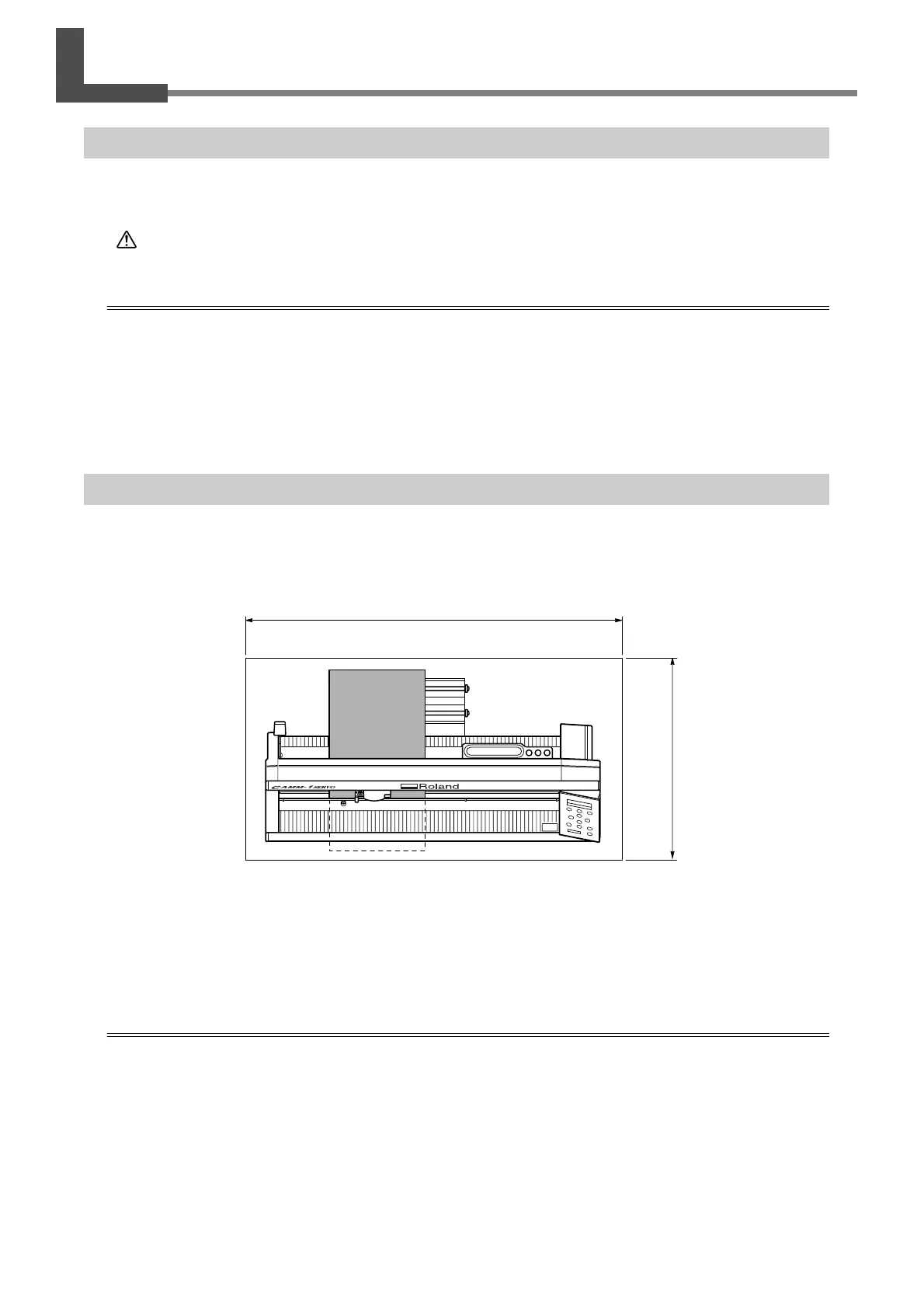

The space shown in the figure is required in order to use this machine.
Place in a location that has no wall or other obstruction to the rear.
The material moves during cutting. Never place any object at the front or rear of the machine.
Use a special stand (sold separately)
The special stand (part number PNS-24) is sold separately. For more information, contact your vendor or the
nearest authorized Roland DG Corp dealer.
950 mm
500 mm
Height: 300 mm
(When using a special stand: 1000 mm)
To Next Page
