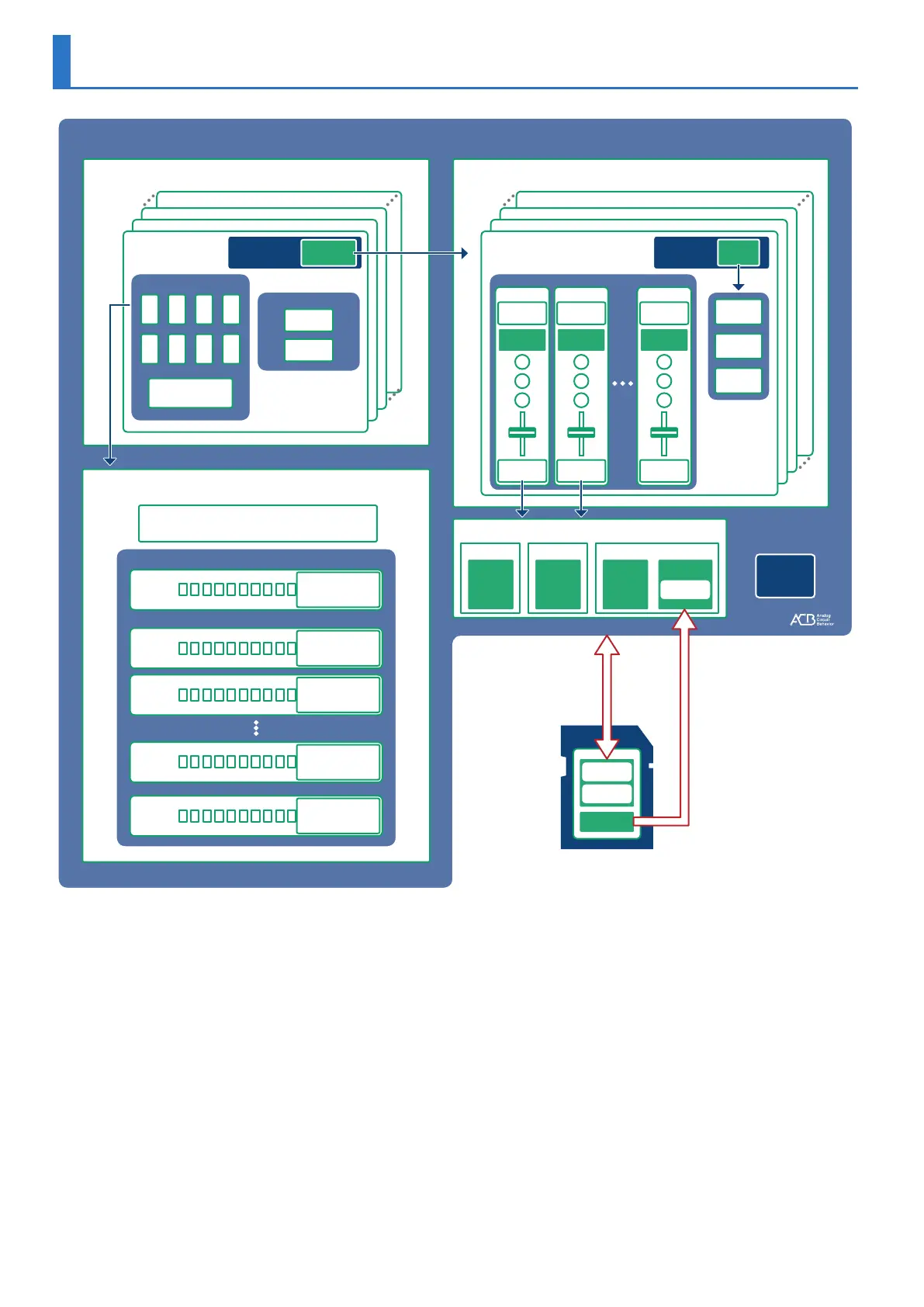

Overview of the TR-6S
PATTERN No. 8-16
PATTERN No. 1-3
PATTERN No. 1-2
PATTERN No. 1-1
128 patterns
(16 x 8 banks)
PATTERN
KIT
number
TR-6S
Import
Backup/Restore
Export/Import
KIT No. 128
KIT No. 3
KIT No. 2
KIT No. 1
INST
INST
Parameter
INST
Tone
INST
EFFECT
BD
INST
Parameter
INST
Tone
INST
EFFECT
SD
INST
Parameter
INST
Tone
INST
EFFECT
OH
MASTER
FX
REVERB
DELAY
EFFECT
setting
KIT
Parameter
128 KITs
KIT
FILL IN
FILL IN 1
FILL IN 2
FM tone
PRESET
ACB tone
PRESET
SAMPLE tone
PRESET USER
System
Setting
INST tone
Audio
files
SD card
LAST STEP setting
Motion data for REVERB/DELAY/MASTER FX
VARIATION A–H
TRACK
BD
STEP data
MOTION data
SD
STEP data
MOTION data
CH
STEP data
MOTION data
OH
STEP data
MOTION data
ACCENT
STEP data
SAMPLE
Parameter
BACKUP data
Export data
A B C D
E F G H
VARIATION
Last Step setting for
each instrument
PATTERN
Setting
* If you want to make a backup, save the data (patterns, kits,
system settings) before you proceed. The backup will not include
the pattern or kit that you’re currently editing (shown by an “*”
indication) or system settings that you have not saved.

Roland TR-6S Specifications

Power

current draw	500 mA
battery capacity	1, 900 mAh

Battery

ni-mh battery configuration	AA, HR6 x 4
alkaline battery configuration	AA, LR6 x 4
ni-mh battery life	Approximately 5.5 hours
alkaline battery life	Approx. 4.5 hours

Weight and Dimensions

dimensions	224 (W) x 132 (D) x 61 (H) mm
dimensions (inches)	8-13/16 (W) x 5-3/16 (D) x 2-3/8 (H)
weight (including batteries)	705 g
weight (including batteries in pounds)	1 lb 9 oz
