Rotax 914 series Maintenance Manual

73-00-00
page 24
May 01/2007
Effectivity 914 Series
Edition 1 / Rev. 0
d02623
BRP-Rotax
Maintenance Manual

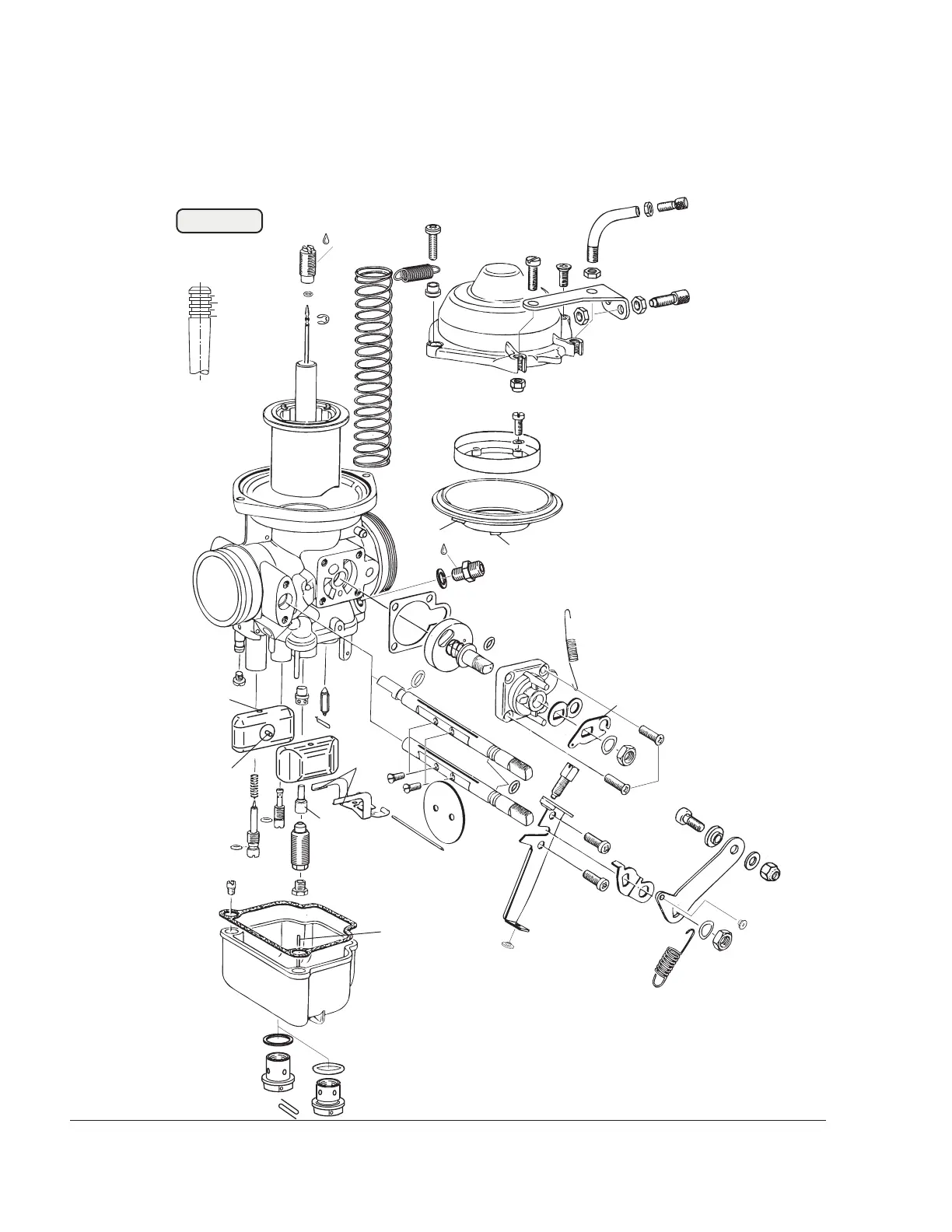

3.3.4) Individual components of the carburetor (on the 914 Series)
See Illustrated Parts Catalog Rotax 912/914
A
A
Zyl. (cyl.) 1/3
Zyl. (cyl.) 2/4
Nadelposition
(needle position)
1
4
3
2
07087
18
25
26
27
28
29
30
34
35
36
37
38
24
23
22
13
14
15
16
17
18
8
10
11
12
4
5
6
7
1
2
3
21
20
Fig. 73-14
