Rotax 914 series Maintenance Manual

00-00-00
page 30
May 01/2007
Effectivity 912/914 Series
Edition 1 / Rev. 0
d02620
BRP-Rotax
Maintenance Manual
9.1) Determination of actual wear [%]
See Figs. 00-5, 00-6 and 00-7.
Determine actual dimension F of the part in question.
For new dimension (max) B and wear limit C, see the corresponding section´Wear
limits“ (e. g. 74-00-00 sec. 4).

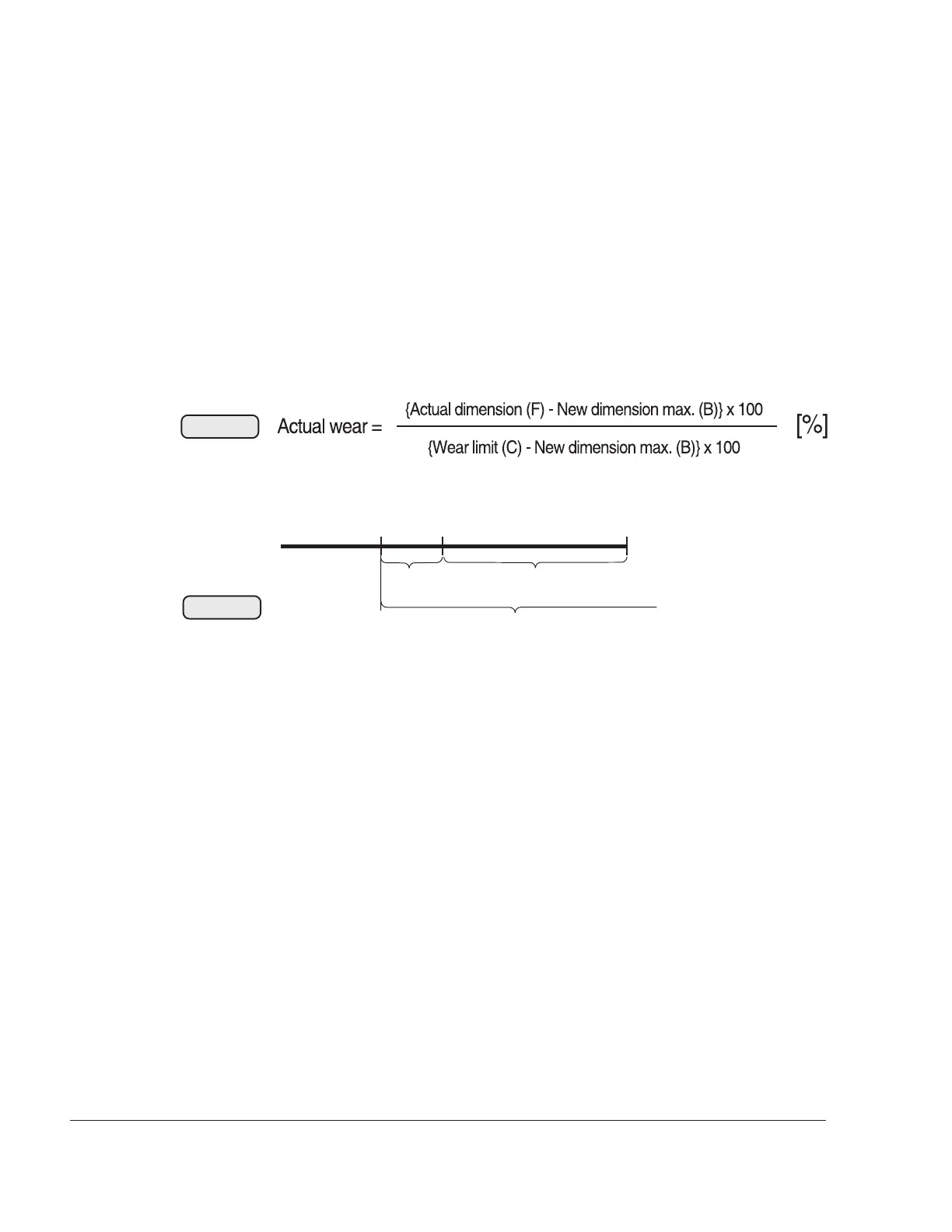

The actual wear in [%] is determined with the following formula:
Legend:
A New dimension (min)
B New dimension (max)
C Wear limit
D New dimension tolerance
E Wear tolerance
F Actual dimension
A
ED
CB
F
07531
Fig. 00-6
08217
Fig. 00-5
