Troubleshooting
Samsung Electronics 4-49
4-4-4 Indoor unit EVAP IN sensor Error (Open/Short)
◑ (Operation)
◑
(Timer)
×
(Fan)
×
(Filter)
×
(Defrost)
x x x
(
x x x
:
The address of the error occurred indoor unit)
t The EVAP IN sensor of No . XXX indoor unit has defective OPEN/SHORT
Indoor unit display
Criteria
Cause of problem
Outdoor unit display
t Refer to how to determine below

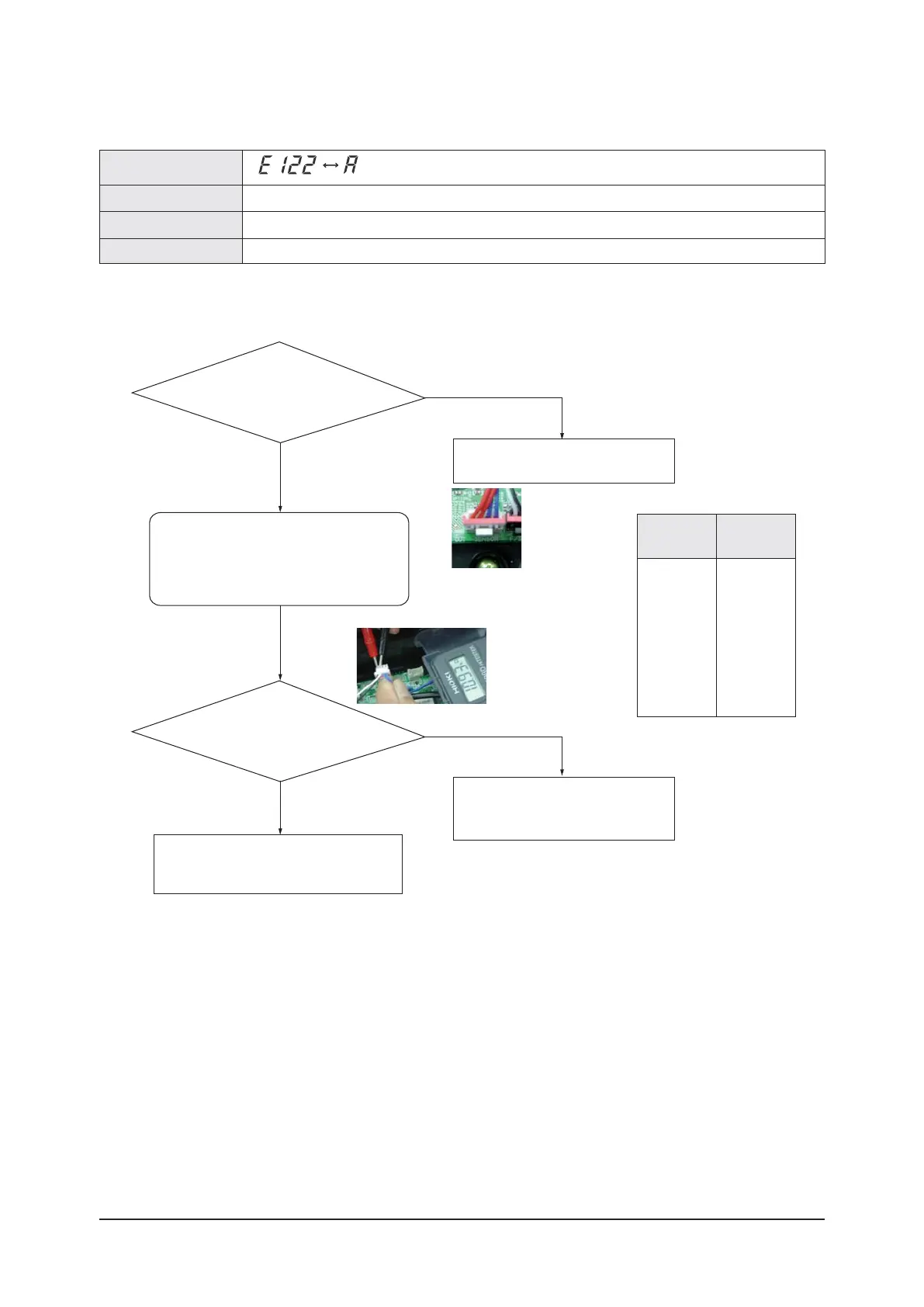

1. How to check
Is indoor EVAP IN sensor
connector separated from the PCB?
At that time,
is the resistance value significantly
deviated from the temp. table?
After separating indoor EVAP IN sensor
connector from the PCB, measure the resistance
values between both terminals
Re-start after
connecting
the connector to the PCB.
As it is due to an indoor EVAP IN sensor
defect, replace it.
Yes
No
No
Ex) Room temp. 26°C – Resistance 10.93KΩ
Yes
Re-start after replacing PCB.
Yes
Temperature
(°C)
Resistance
(KΩ)
70
60
50
40
30
21
10
0
-10
2.2
3.0
4.2
5.8
8.3
12.1
18.0
27.3
43.0

Samsung AM160FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	54600 BTU/h
Heating capacity in watts (max)	16000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	14.3 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A++ to G
Power consumption (heating) (max)	3100 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A++
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	60 dB
Outdoor unit noise level	- dB
