Troubleshooting
4-112 Samsung Electronics

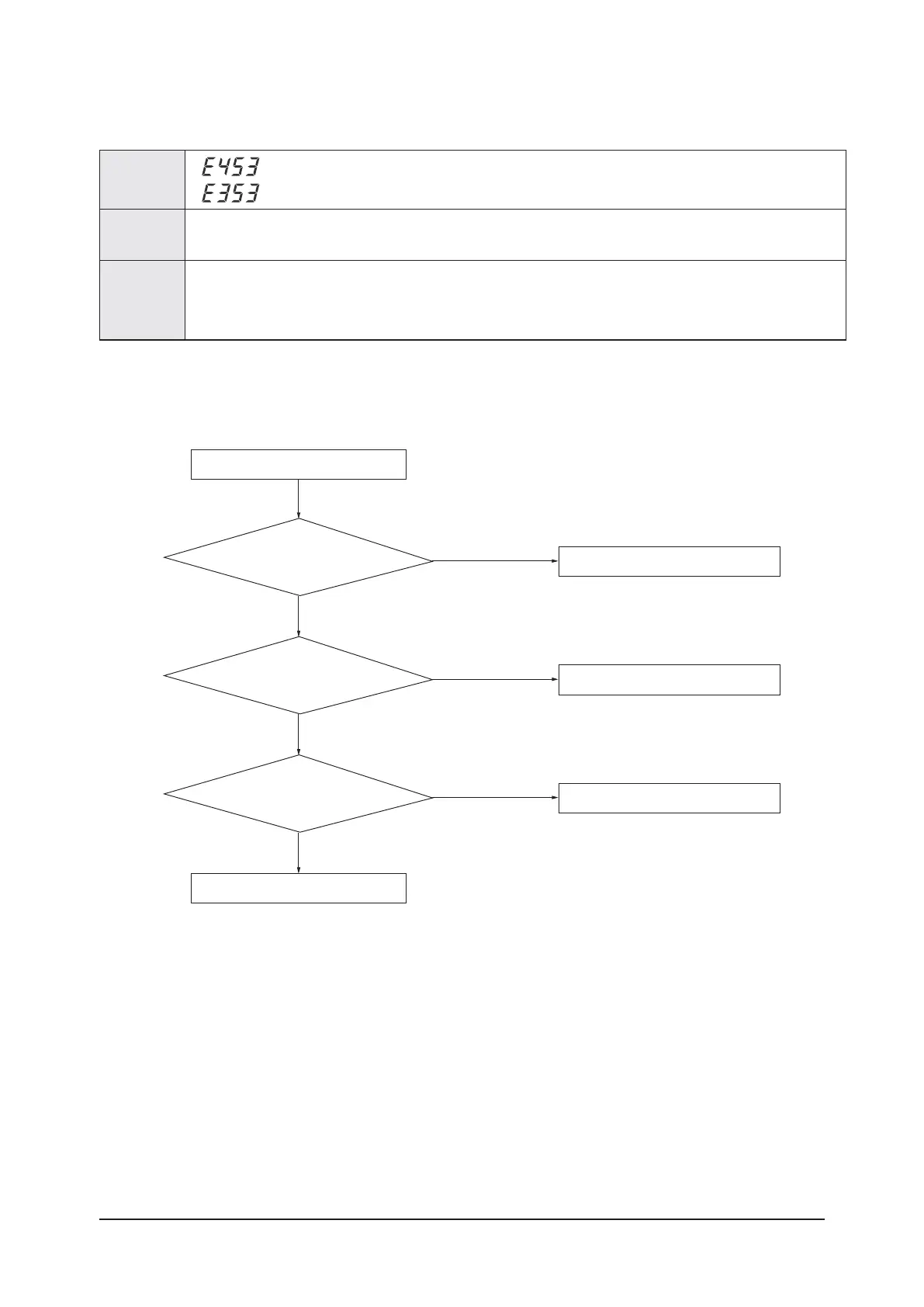

4-4-68 Outdoor Fan Motor overheating
Outdoor unit
display
(FAN PCB(FAN1))
(FAN PCB(FAN2))
Judgment
Method
 Overheating due to the internal sensor of the Fan Mot or .
Cause of prob-
lem
 Defective connection wire

Defective Fan Mot or
 Defective PCB
 Defective installation conditions
Power Off / Power Restart
Replace Fan Motor
Yes
Did the error occurs?
End of Service
No
Yes
Connection wire of
Fan Motor did confirmation?
(Verify that the wire folded, or the connection is
detached.)
Check the connecting wire and restart it.
No
Yes
Is there anything strange in
appearance Fan Motor?
Replace Fan PCB
No
1.
Cause of problem

Samsung AM160FNBFEB/EU Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Gas hose diameter	15.88 mm
Liquid hose diameter	9.52 mm
Refrigerating medium	R410A
Air conditioner functions	Heating
Heating capacity (nominal)	54600 BTU/h
Heating capacity in watts (max)	16000 W
Cooling capacity in watts (nominal)	- W
Operating temperature (heating) (T-T)	-20 - 24 °C
AC input voltage	220-240 V
Current (heating)	14.3 A
AC input frequency	50-60 Hz
Design load (cooling)	- kW
Energy efficiency scale	A++ to G
Power consumption (heating) (max)	3100 W
Hourly energy consumption (cooling)	- kWh
Energy efficiency class (heating) (Average heating season)	A++
Indoor unit type	Wall-mountable
Indoor unit depth	330 mm
Indoor unit width	518 mm
Indoor unit height	1210 mm
Indoor unit weight	104000 g
Indoor units quantity	1
Indoor unit package depth	426 mm
Indoor unit package width	652 mm
Indoor unit package height	1289 mm
Indoor unit package weight	107000 g
Indoor unit sound power level	42 dB
Indoor unit noise level (high speed)	60 dB
Outdoor unit noise level	- dB
